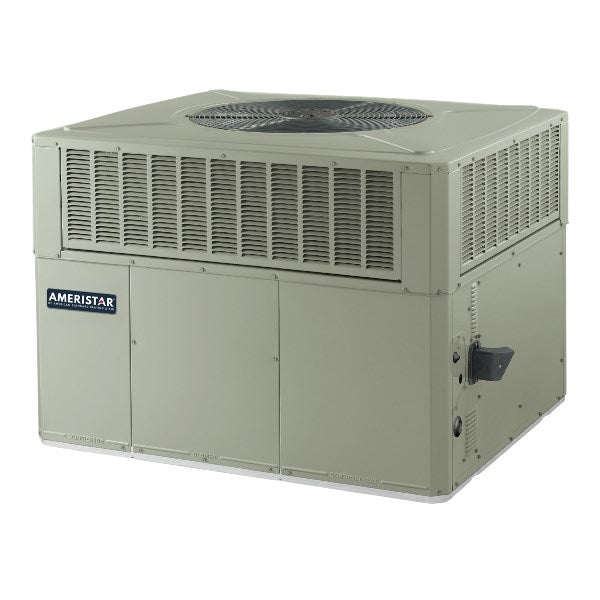

Trane A5PH3024A1000 Single Packaged Heat Pump 2 Ton 13.4 SEER2 R-454B Multiposition

Product Description

The Trane A5PH3024A1000 is a single packaged electric heat pump rated at 2 tons nominal capacity, delivering 24,000 BTU/h of cooling and 21,000 BTU/h of heating from a single self-contained cabinet. It operates on R-454B refrigerant and carries a 13.4 SEER2 efficiency rating. The unit runs on 208-230 volt single-phase 60 Hz power and uses a scroll compressor paired with a constant torque ECM indoor fan motor. Because all mechanical and electrical components are housed in one cabinet, it is well suited for rooftop or ground-level installations where space is limited. Licensed HVAC technicians handle installation and commissioning.

The A5PH3024A1000 is designed for residential and light-commercial applications requiring a single packaged heating and cooling solution. Its convertible, multiposition cabinet accommodates both horizontal and downflow duct configurations, giving installers flexibility on job sites with varying duct layouts. This unit is part of the RunTru by Trane entry-level packaged heat pump line covering 2 to 5 ton sizes, all using R-454B refrigerant. It is appropriate for rooftop curb-mount or slab-on-grade installations in single-family homes, small commercial spaces, and manufactured housing where split-system installation is impractical.

Key Features

• 24,000 BTU/h cooling capacity and 21,000 BTU/h heating capacity in a single packaged cabinet
• R-454B refrigerant — lower global warming potential than R-410A, meeting current and upcoming regulatory requirements
• 13.4 SEER2 efficiency rating
• Scroll compressor operating at 208-230 volts, single phase, 60 Hz with 11.4 RLA and 64.4 LRA
• Constant torque ECM indoor fan motor, 10.62 inches x 10.62 inches, direct drive with 4 speeds, improving airflow control and reducing energy use
• Spine Fin outdoor coil with 2-row, 24 fins-per-inch configuration for efficient heat transfer
• Convertible multiposition design supports both horizontal and downflow duct connections

Compatibility

The A5PH3024A1000 is part of the RunTru by Trane single packaged heat pump line (A5PH3024A1000A) within the entry-level convertible series ranging from 2 to 5 tons. Compatible accessory options include the BAYDMPR101 and BAYDMPR102A 25 percent motorized outside air dampers. Verify duct configuration, electrical service, and curb dimensions against the published submittal data before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with packaged rooftop or slab-mount heat pump systems. Disconnect and lock out all electrical power before servicing the unit. Refrigerant handling requires EPA Section 608 certification due to the R-454B charge. Refer to the Trane installation and operations manual for curb dimensions, duct connection requirements, and startup procedures, and ensure local mechanical and electrical codes are followed throughout.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h (2 ton nominal)
• Heating Capacity: 21,000 BTU/h
• Efficiency Rating: 13.4 SEER2
• Refrigerant: R-454B
• Voltage: 208-230 volts, single phase, 60 Hz
• Amperage (Unit): 19 amps
• Compressor Type: Scroll
• Compressor RLA / LRA: 11.4 amps / 64.4 amps
• Indoor Fan Type: Constant Torque ECM, direct drive, 4 speeds
• Indoor Fan Size: 10.62 inches x 10.62 inches
• Indoor Fan Motor: 1/12 hp, 825 RPM, 208-230 volt, 0.54 FLA / 0.82 LRA
• Outdoor Coil Type: Spine Fin, 2 rows, 24 fins per inch
• Cabinet Configuration: Convertible multiposition (horizontal / downflow)
• Minimum Circuit Ampacity: 30 amps

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PH3024A1000
