RUD 51-101774-14 Condenser Motor

Product Description

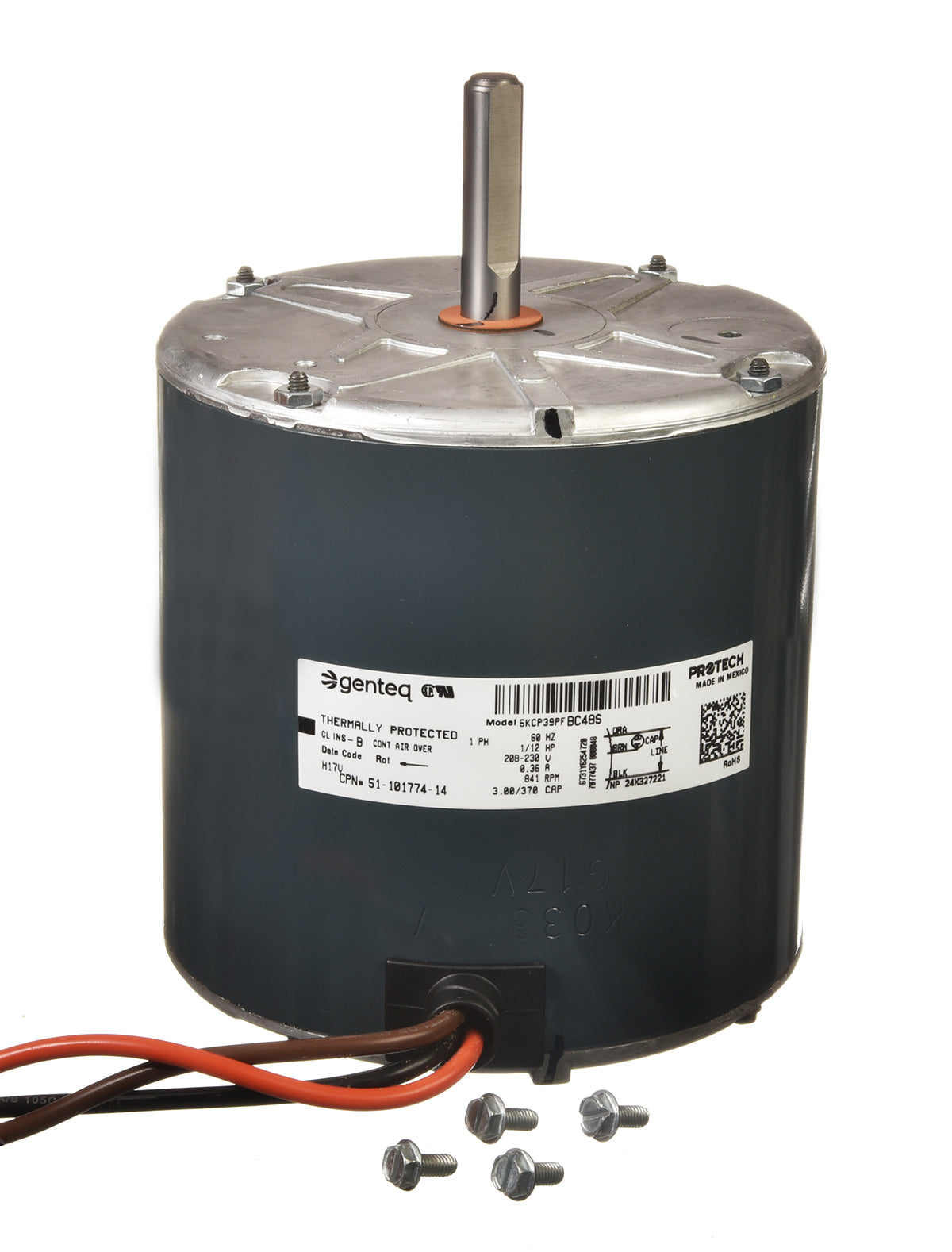

The RUUD 51-101774-14 is a condenser motor designed for OEM replacement in Rheem, Ruud, and Weatherking models. It can also be used for aftermarket retrofit in various applications. This direct drive motor operates at a single speed of eight hundred twenty-five RPM and delivers one-twelfth horsepower. It requires a two hundred eight to two hundred thirty volt single-phase power supply at sixty Hertz. The motor features counterclockwise rotation and comes with a run capacitor.

• Condenser motor with one-twelfth horsepower.
• Operates at two hundred eight to two hundred thirty volts, single phase, sixty Hertz.
• Single-speed motor with a speed of eight hundred twenty-five RPM.

Product Highlights

This motor is essential for maintaining HVAC systems, ensuring reliable performance in cooling applications.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-101774-14

Technical Specifications

• Product Type: Condenser Motor
• Horse Power: 1/12
• Number of Speeds: 1
• High Speed (RPM): 825
• Input Voltage: 208-230/1/60
• Rotation Direction: CCW
• Run Capacitor: 3uF/370V
• Full Load Amperage: 0.36 @ 230V
• Locked Rotor Amperage: 1 @ 230V
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Keyed/Flat Shaft Length: 1-1/2 inches
• Overall Shaft Length: 2 inches
• Motor Body Length: 5-11/16 inches
• Overall Motor Length: 7-13/16 inches
• Mounting Type: Shell-band/End-boss
• Frame Size: 48
• Bearing Type: Ball
• Drive Type: Direct
• Approximate Height: 6.80 inches
• Approximate Length: 14.65 inches
• Approximate Weight: 17.28 pounds
• Approximate Width: 7.30 inches
