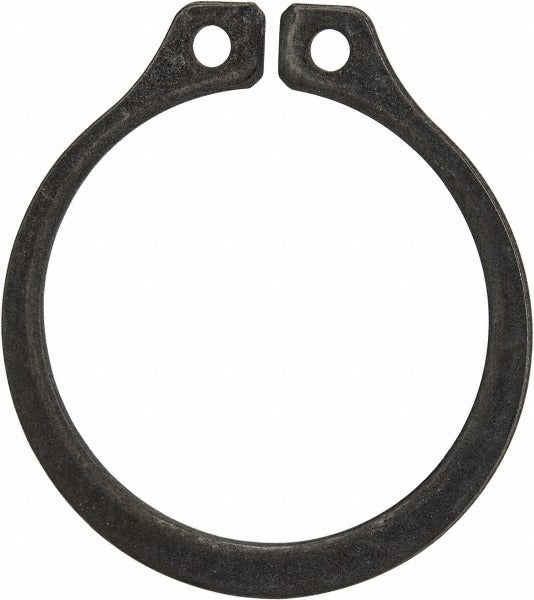

Rotor Clip SH106ST Pa B100 External Retaining Ring

Product Description

The ROTOR CLIP SH106ST PA B100 is an external retaining ring engineered for shaft retention applications requiring precise dimensional control. Designed for a 1.0625-inch shaft diameter with a groove diameter of 0.998 inches, this ring seats into a machined groove to secure components axially on a shaft without the need for threading or welding. Manufactured from SAE 1060-1090 carbon steel to UNS G10600-G10900 standards with a phosphate finish, it delivers a hardness rating of 47-52 HRC. Maintenance technicians, mechanical assemblers, and industrial service professionals install this type of ring across rotating equipment, drive assemblies, and power transmission systems.

This external retaining ring is suited for use in rotating shaft assemblies found in industrial machinery, HVAC equipment, pump drives, and general mechanical power transmission applications. The phosphate finish provides a base-level corrosion inhibitor and improves lubrication retention in service environments where the ring is exposed to incidental moisture or lubricants. The ring is sold in a minimum order quantity of 100 units per package, making it appropriate for shop stock, OEM assembly lines, or service fleets that replace these components in volume.

Key Features

• Fits 1.0625-inch (1-1/16 inches) shaft diameter with a 0.998-inch groove diameter
• SAE 1060-1090 carbon steel construction with hardness of 47-52 HRC
• Phosphate finish for corrosion inhibition and lubrication retention
• Ring thickness of 0.05 inches with a tight tolerance of plus or minus 0.002 inches
• Groove width of 0.056 inches and groove depth of 0.032 inches for positive axial retention
• Meets ISO 13485:2015 and SAE 1060-1090 fastener standards

Compatibility

Designed as an OEM-style external retaining ring for 1.0625-inch diameter shafts with a 0.998-inch groove diameter machined to SAE 1060-1090 and UNS G10600-G10900 dimensional standards.

Installation Notes

External retaining rings of this type are installed and removed using dedicated external snap ring pliers; using improper tools risks ring deformation or eye injury from ejected rings. Shut down and de-energize all rotating equipment fully before service and confirm the shaft is stationary before attempting installation. Verify groove dimensions match the ring specifications before seating to avoid improper retention and potential component migration. Follow applicable ANSI and ASME machinery safety standards for shaft hardware installation procedures.
