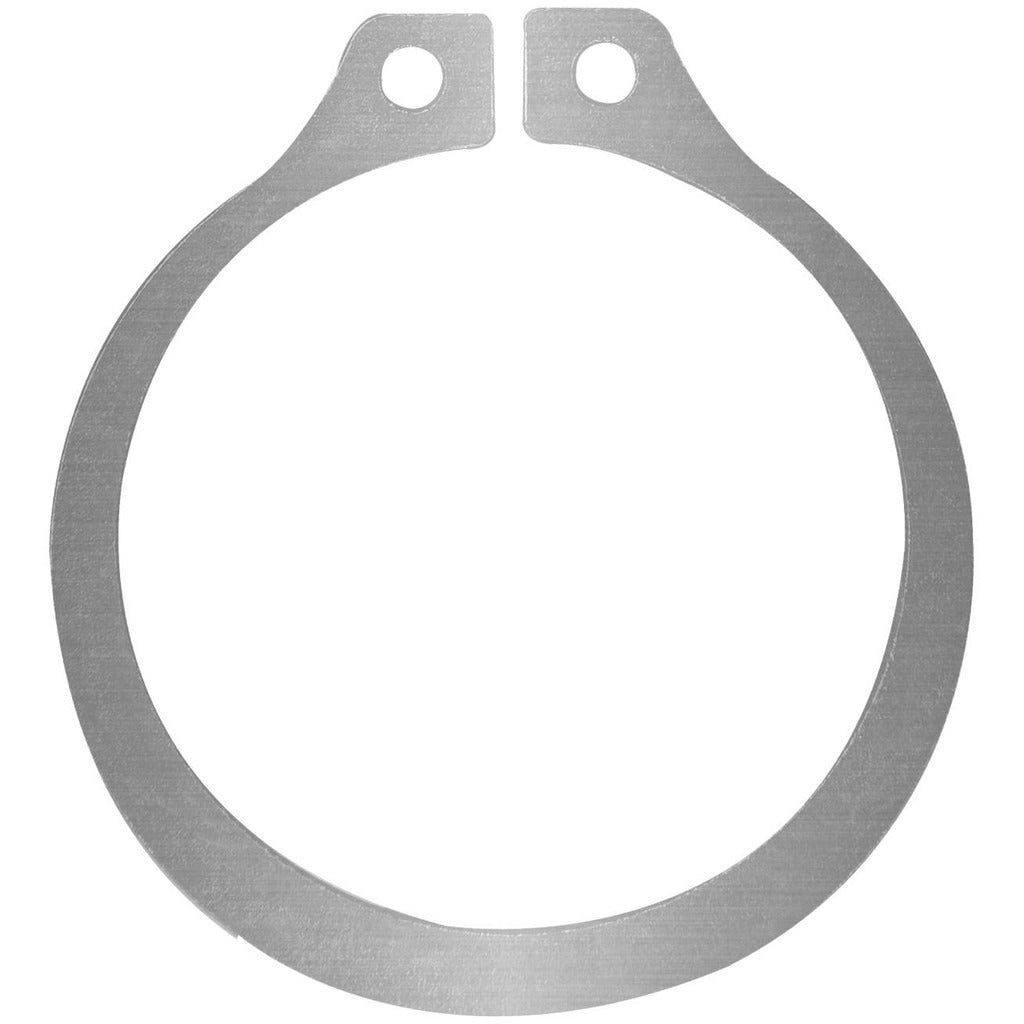

Rotor Clip SH-93SS B100 External Retaining Ring 15/16 in

Product Description

The ROTOR CLIP SH-93SS B100 is an external retaining ring engineered for precision shaft retention applications. Manufactured from 15-7 Grade 632 stainless steel to AMS-5529 and UNS S15700 standards, this ring seats in a 0.882-inch groove diameter on a 15/16-inch (0.9375-inch) shaft. With a hardness rating of 47-53 HRC and a zinc finish, it delivers corrosion resistance and mechanical durability in demanding environments. Maintenance technicians, mechanical assemblers, and industrial service professionals install this ring where secure, low-profile axial retention is required on rotating or stationary shafts.

This external retaining ring is suited for use in precision mechanical assemblies across industrial, HVAC, and equipment-service applications where a 15/16-inch shaft diameter is present. It is designed for installations requiring tight groove tolerances and reliable retention force without the use of threads or welding. The zinc-plated 15-7 stainless steel construction makes it appropriate for environments with moderate corrosion exposure. Packaging quantity is 1 ring per package with a minimum order quantity of 5 units.

Key Features

• 15-7 Grade 632 stainless steel construction per AMS-5529 and UNS S15700 standards
• Zinc finish for added corrosion resistance
• Hardness of 47-53 HRC for high-load retention capability
• Groove diameter of 0.882 inches with a tolerance of -0.003 to +0.003 inches
• Ring thickness of 0.042 inches with a tight tolerance of -0.002 to +0.002 inches
• Complies with ISO 13485:2015 quality management standards

Compatibility

Designed for external shaft retention on 15/16-inch (0.9375-inch) diameter shafts with a groove width of 0.046 inches and groove depth of 0.028 inches machined to AMS-5529 specifications.

Installation Notes

Installation requires retaining ring pliers sized for external rings of this diameter. Ensure the shaft groove is clean and free of burrs before seating the ring. Power down and de-energize any associated equipment before servicing shaft assemblies. Do not over-spread the ring during installation, as exceeding the free outside diameter of 1.34 inches may permanently deform the ring and compromise retention.
