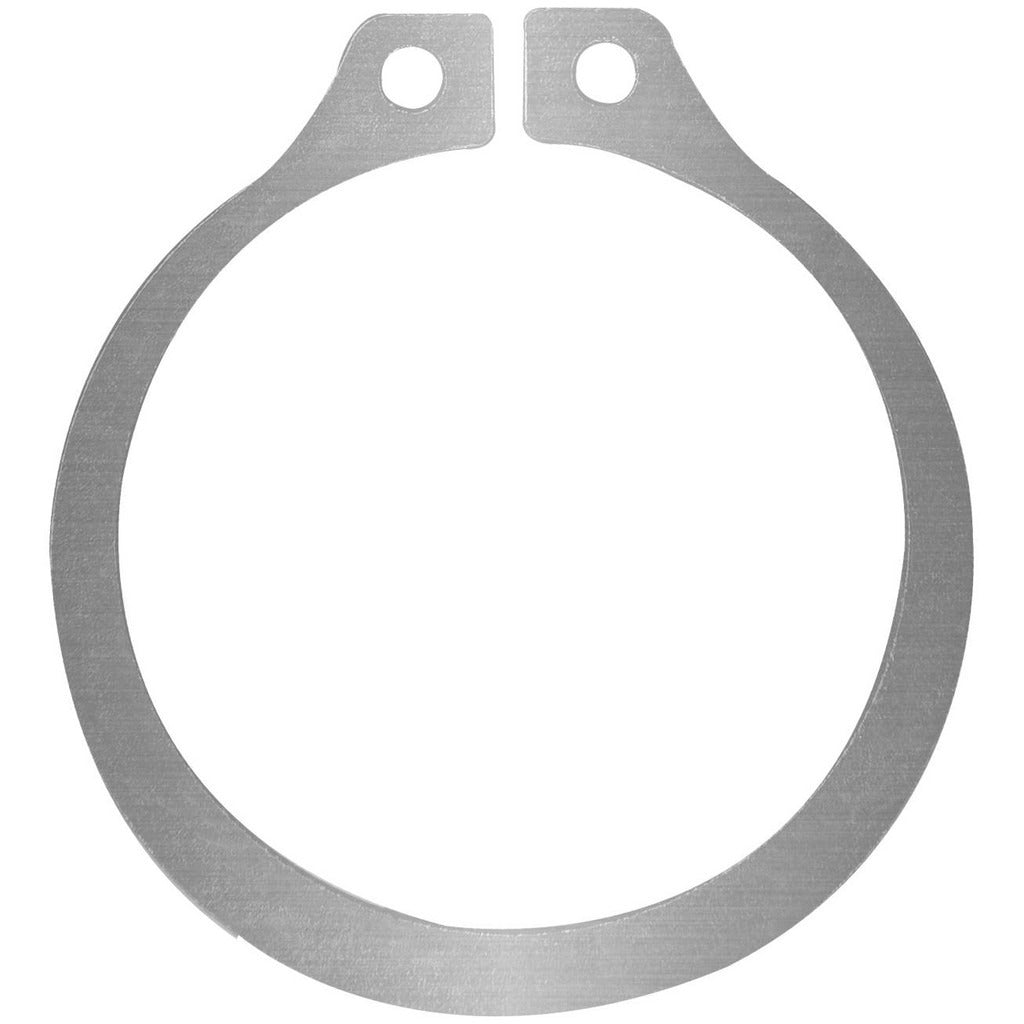

Rotor Clip SH-59SS External Retaining Ring 19/32 in Shaft

Product Description

The ROTOR CLIP SH-59SS is an external retaining ring designed to secure components on a 19/32-inch (0.5938-inch) shaft. Manufactured from 15-7 Grade 632 stainless steel to AMS-5529 and UNS S15700 standards, it delivers high hardness in the 66-71 HRC range for dependable retention in demanding applications. The ring features a zinc finish for added corrosion resistance and measures 0.035 inches in thickness with a groove diameter of 0.559 inches. It is installed by licensed maintenance technicians, mechanical assemblers, and MRO professionals working across industrial, HVAC, and rotating-equipment applications.

This retaining ring is suited for use in shaft assemblies where a compact, high-hardness external ring is required. The 19/32-inch shaft diameter and 0.039-inch groove width make it applicable to precision rotating shafts in motors, pumps, compressors, and similar mechanical assemblies found in both commercial and industrial settings. The ISO 13485:2015 standard compliance also makes it relevant for equipment used in regulated manufacturing environments.

Key Features

• External retaining ring for 19/32-inch (0.5938-inch) shaft diameter
• 15-7 Grade 632 stainless steel construction per AMS-5529 and UNS S15700
• High hardness rating of 66-71 HRC for reliable retention under load
• Zinc finish provides corrosion protection in typical service environments
• Ring thickness of 0.035 inches with tight tolerance of plus or minus 0.002 inches
• Meets ISO 13485:2015 standards for use in regulated assembly applications

Compatibility

Designed as an OEM-style external retaining ring for precision shaft assemblies requiring a 19/32-inch shaft diameter and a groove diameter of 0.559 inches with a width of 0.039 inches.

Installation Notes

Installation is performed by qualified mechanical technicians using standard external snap-ring pliers sized for this ring diameter. De-energize and lock out all equipment before servicing any shaft assembly. Verify groove dimensions match the 0.559-inch groove diameter and 0.039-inch groove width before installation. Do not reuse a retaining ring that has been removed, as repeated expansion can alter its retention properties.
