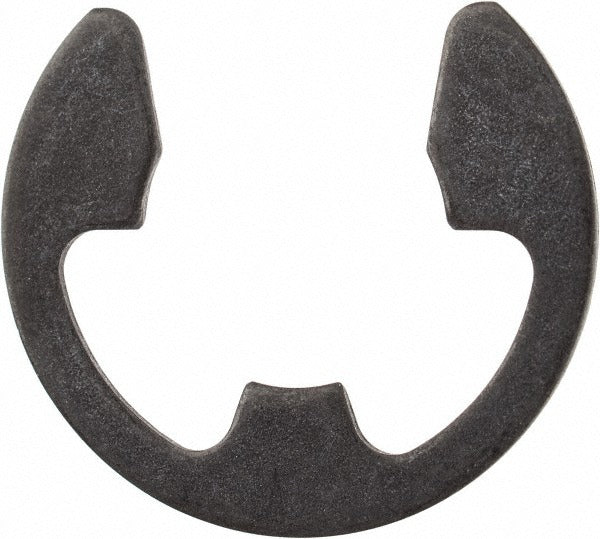

Rotor Clip E-62ST Pa B100 External E Style Retaining Ring

Product Description

The ROTOR CLIP E-62ST PA B100 is an external E style retaining ring designed to seat in a machined groove on a shaft and provide positive axial retention of components without requiring secondary fasteners. Built from SAE 1060-1090 steel with a hardness of 37-43 HRC, this ring delivers reliable holding strength in demanding mechanical assemblies. The phosphate finish provides baseline corrosion resistance and improves lubrication retention. With a 5/8 inch shaft diameter, 0.485 inch groove diameter, and 0.042 inch ring thickness, it fits precise groove geometries in rotating and stationary shaft applications. Licensed technicians and mechanical assemblers working on HVAC blower assemblies, pump shafts, and motor assemblies commonly specify this part for OEM-level repair and production work.

This retaining ring is suited for applications requiring a compact, three-prong E style clip on shafts up to 5/8 inch in diameter. It is commonly found in light mechanical assemblies such as fan and blower shaft assemblies, small motor shafts, pump impeller shafts, and similar rotating equipment found in residential and light commercial HVAC, plumbing, and pool equipment. The minimum order quantity is 100 pieces per order, making it appropriate for service shops and production environments that stock hardware in bulk.

Key Features

• E style external retaining ring with three-prong design for secure axial retention on grooved shafts
• 5/8 inch shaft diameter with 0.485 inch groove diameter for precise fitment
• SAE 1060-1090 steel construction with 37-43 HRC hardness for strength in dynamic applications
• Phosphate finish for corrosion resistance and improved lubricant adhesion
• Meets SAE 1060-1090, UNS G10600-G10900, and ISO 13485:2015 standards
• Minimum order quantity of 100 pieces suits production and service shop stocking needs

Compatibility

Designed as an OEM-style replacement or new-installation retaining ring for 5/8 inch grooved shafts in mechanical assemblies where an external E style ring meeting SAE 1060-1090 and UNS G10600-G10900 specifications is required.

Installation Notes

Installation should be performed by a qualified mechanical technician using appropriate snap ring pliers sized for E style external rings. Ensure the shaft and groove are clean and free of burrs before seating the ring to avoid improper groove engagement. De-energize and lock out all power to rotating equipment before servicing shaft assemblies. Verify groove diameter and width tolerances match this ring specification before installation to ensure full retention force.
