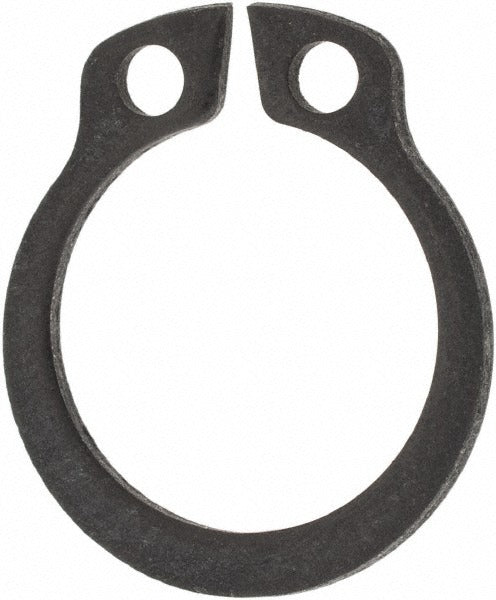

Rotor Clip DSH-12ST PDB100 External Retaining Ring 12mm

Product Description

The ROTOR CLIP DSH-12ST PDB100 is a DIN 471 external retaining ring designed to secure components on a 12 mm shaft. Manufactured from 1060-1090 spring steel with a phosphate and oil finish, it provides corrosion resistance and consistent holding force in assembled mechanical systems. The ring seats in a groove with a 11.5 mm groove diameter and a 1.00 mm ring thickness. It is installed by machinists, maintenance technicians, and mechanical assemblers working on shafts, motors, pumps, and rotating equipment across HVAC, plumbing, and industrial applications.

This external retaining ring is used wherever a DIN 471-standard snap ring is required to retain a bearing, gear, pulley, or hub on a 12 mm shaft. It is suited for both original equipment assembly and field repair. The phosphate and oil finish makes it appropriate for moderately corrosive environments and general-purpose mechanical assemblies in residential and commercial equipment. Sold in a minimum order quantity of 100 pieces per order.

Key Features

• DIN 471 standard external retaining ring for 12 mm shafts
• 1060-1090 spring steel construction with phosphate and oil finish for corrosion resistance
• Hardness rated 63-69.5 HR30N for consistent snap and retention force
• Groove width of 1.10 mm and groove depth of 0.25 mm for precise seating
• Meets DIN 471, SAE 1060-1090, and ISO 13485:2015 standards
• Metric dimensioning throughout for compatibility with metric-spec assemblies

Compatibility

Designed as a DIN 471-compliant external retaining ring for 12 mm shafts in metric-dimensioned mechanical assemblies requiring a groove diameter of 11.5 mm.

Installation Notes

External retaining rings of this type are installed and removed using snap ring pliers sized for external rings. Always power down and de-energize any equipment before disassembling rotating shafts or bearing assemblies. Verify groove diameter and groove width match the ring specifications before installation to ensure proper retention. Follow applicable machinery safety standards and equipment manufacturer service procedures during assembly.
