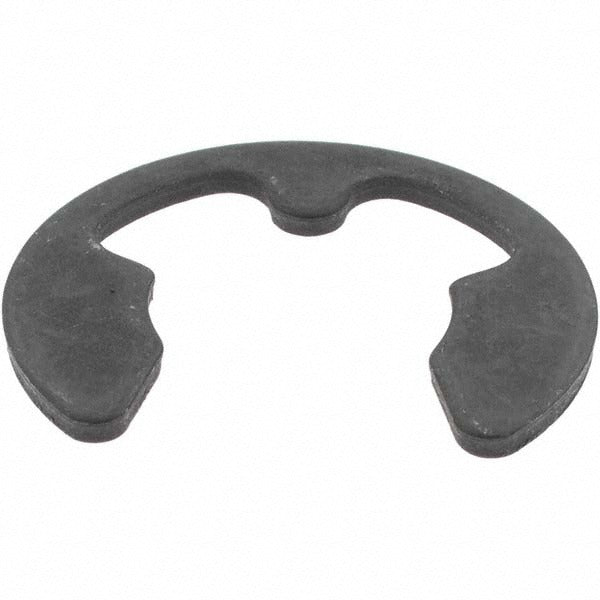

Rotor Clip DE-15ST Pd E Style Retaining Ring Spring Steel

Product Description

The ROTOR CLIP DE-15ST PD is an external E style retaining ring engineered for secure axial retention on shafts in metric-dimensioned assemblies. Manufactured from spring steel with a phosphate finish, this ring seats into a 15 mm groove diameter and accommodates shaft diameters ranging from 16 to 24 mm. At 1.5 mm ring thickness, it delivers reliable holding force while maintaining a compact profile. Licensed HVAC technicians, plumbers, machinists, and mechanical assemblers working on metric shaft assemblies will find this ring suited to high-volume production and maintenance repair operations alike. It conforms to ISO 13485:2016 standards, making it appropriate for precision assemblies requiring documented material traceability.

This retaining ring is used in external groove applications on shafts within mechanical assemblies such as motors, pumps, gearboxes, and rotating equipment common to HVAC, plumbing, and industrial settings. The E style design allows for tool-free or plier-assisted installation in field and shop environments. The phosphate finish provides a baseline level of corrosion resistance suitable for indoor and light-duty mechanical environments. This listing is sold in packages of 50 rings, with a minimum order quantity of 1 package.

Key Features

• E style external retaining ring for axial shaft retention in metric assemblies
• Fits 15 mm groove diameter with shaft diameter range of 16 to 24 mm
• Spring steel construction provides consistent snap force and fatigue resistance
• Phosphate finish for baseline corrosion protection in standard service environments
• 1.5 mm ring thickness for a low-profile, space-efficient installation footprint
• Meets ISO 13485:2016 standards for use in quality-controlled assembly processes

Compatibility

Designed as an OEM-style replacement or standard-stock retaining ring for external groove shaft applications requiring a 15 mm groove diameter and shaft diameters between 16 and 24 mm in metric-dimensioned mechanical assemblies.

Installation Notes

Installation and removal should be performed by qualified mechanical technicians using retaining ring pliers sized for E style rings. De-energize and lock out all rotating equipment before servicing any shaft assembly. Inspect the groove for burrs or damage before seating the ring to ensure full engagement and prevent ring displacement under load. Refer to applicable machinery safety standards and manufacturer assembly guidelines for torque and preload requirements on adjacent components.
