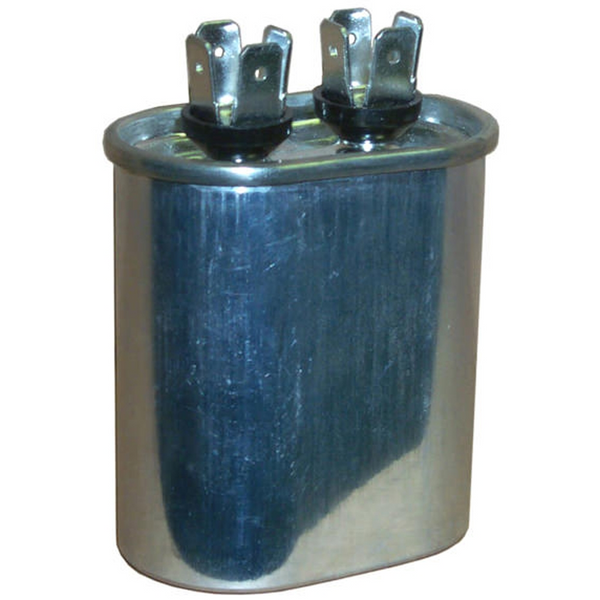

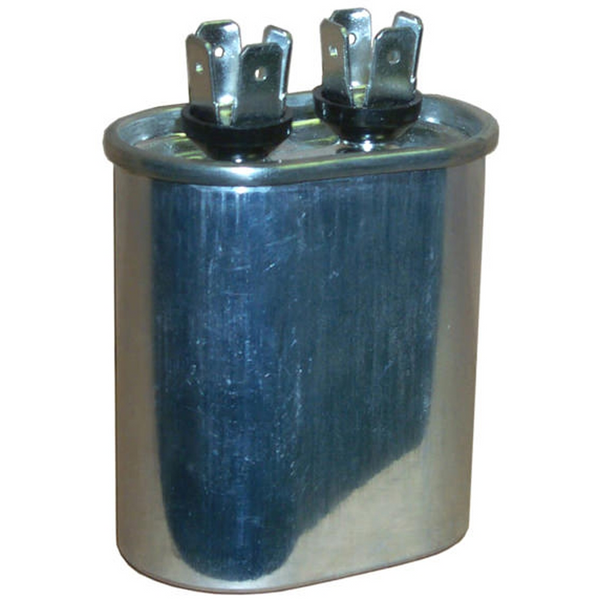

Rotom 36-20-370440 Oval Run Capacitor 20 MFD (Oval) 20DV

Product Description

The Rotom 36-20-370440 is a 20 MFD motor run capacitor rated for dual-voltage operation at 370/440 VAC. It uses an oval metal-can housing intended for motor and HVAC run applications and includes a built-in interrupter. Physical dimensions are approximately 2.80 in W x 1.77 in D x 3.15 in H. The unit is identified by catalog number 36-20-370440 and is UL and cUL recognized.

• 20 MFD capacitance for motor run applications
• Dual-voltage rating: 370/440 VAC; dual-voltage configuration
• Oval metal-can housing; dimensions approx. 2.80 in W x 1.77 in D x 3.15 in H

Product Highlights

20 MFD dual-voltage run capacitor for motor and HVAC applications; oval housing; UL and cUL recognized.

Product Information

Standard Information

• Brand: ROTOM
• Manufacturer Part Number: 36-20-370440

Technical Specifications

• Brand: Rotom
• Manufacturer Part Number: 36-20-370440
• Alias: 20DV
• Capacitor Type: Run capacitor
• Capacitance: 20 MFD (microfarads)
• Voltage Rating: 370/440 VAC
• Voltage Configuration: Dual-voltage
• Shape: Oval
• Dimensions: 2.80 in W x 1.77 in D x 3.15 in H
• Certifications: UL and cUL recognized
• Built-in Interrupter: Yes
• SKU / Catalog Number: 36-20-370440
• Intended Application: Motor and HVAC run applications
