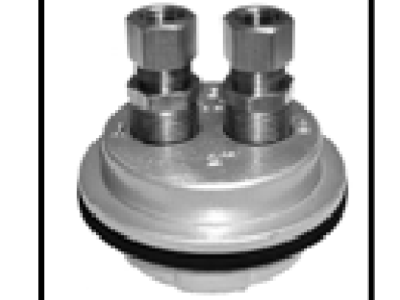

Roth 2350000027 2 Inch Male X 1/2 Inch Compression Duplex Bushing

Product Description

The Roth 2350000027 is a 2 inch male by 1/2 inch compression duplex bushing designed for direct installation into Roth oil storage tank openings. This bushing is secured in place by the Roth tank cap nut, ensuring a reliable and leak-free seal during operation. Duplex bushings like this one play a critical role in oil tank systems by providing two separate connection ports through a single tank opening. This allows technicians to run both a supply line and a return line, or a supply line alongside a vent or gauge connection, all through one fitting point. The result is a cleaner, more efficient installation with fewer penetrations into the tank. This fitting is commonly used by plumbers and heating technicians working on residential and light commercial oil heating systems. The 2 inch male thread end connects directly to the standard Roth tank opening, while the 1/2 inch compression fitting on the outlet side accommodates standard copper or plastic oil supply tubing. Compression fittings are favored in oil line applications because they create a tight mechanical seal without the need for solder or thread sealant on the tubing side, reducing installation time and minimizing the risk of fuel leaks. Roth is a well-known manufacturer of oil storage tanks and compatible fittings and accessories. Using genuine Roth fittings ensures proper thread compatibility and dimensional accuracy with Roth tank openings. This bushing is built to work within the Roth tank system as a whole, making it a straightforward replacement or new-installation component. Whether you are setting up a new oil tank installation or replacing a worn or damaged bushing on an existing system, the Roth 2350000027 provides a dependable, purpose-built solution. It fits neatly into the Roth tank opening and is held securely by the standard Roth cap nut already included in most Roth tank assemblies.

• Installs directly into the Roth oil tank opening for a secure, leak-free connection
• Duplex design provides two separate connection ports through a single tank opening for supply and return lines
• 2 inch male thread inlet and 1/2 inch compression outlet for compatibility with standard Roth tank systems and oil supply tubing

Product Highlights

The Roth 2350000027 duplex bushing delivers a reliable dual-port connection through a single Roth tank opening, secured by the standard Roth cap nut for a clean and leak-resistant oil tank installation.

Product Information

Standard Information

• Brand: ROTH
• Manufacturer Part Number: 2350000027

Technical Specifications

• Connection Type (Inlet): 2 inch Male Thread
• Connection Type (Outlet): 1/2 inch Compression
• Configuration: Duplex Bushing
• Installation Location: Roth Tank Opening
• Retention Method: Roth Tank Cap Nut
