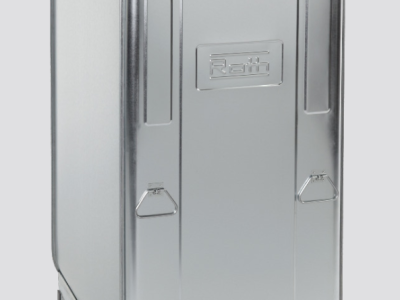

Roth 2335102642 Double Wall 400 Gallon Vertical Oil Tank 30 X 64 X 68 Inches

Product Description

The Roth 2335102642 is a double wall 400 gallon vertical oil tank designed for reliable fuel oil storage in residential and light commercial applications. This tank measures 30 inches wide, 64 inches long, and 68 inches high, making it a substantial storage solution for heating oil systems. HVAC technicians, plumbers, and fuel oil installers rely on tanks like this for safe, code-compliant oil storage. The double wall construction gives this tank a major safety advantage over single wall designs. The primary internal tank is made from seamless blow molded polyethylene, which resists corrosion and does not rust. The secondary outer tank is constructed from 19 gauge galvanized steel, adding a strong protective layer around the primary vessel. This two-in-one design means that if the inner tank ever develops a leak, the outer steel tank contains the spill and prevents environmental contamination. All edges have sealant applied and are then rolled to create leak-proof seams. Both the inner and outer tanks are pressure tested during assembly to verify structural integrity before the unit leaves the factory. The Roth 2335102642 carries a UL-2258 listing, confirming it meets the safety and performance standards required by inspectors and local codes across the United States. Four 2 inch top tappings provide flexible connection points for oil supply lines, vents, and gauges. Large grip handles on each end make positioning and installation more manageable on the job site. The tank ships with a detachable saddle base that must be installed at the time of setup. Each unit also includes two 3 inch plastic adapters and two metal adapters. For outdoor installations, an optional rain cover is available and must be used to protect the tank from weather exposure.

• Double wall design with seamless blow molded polyethylene inner tank and 19 gauge galvanized steel outer tank for secondary containment
• UL-2258 listed for compliance with safety codes and inspection requirements
• Includes detachable saddle base, two 3 inch plastic adapters, and two metal adapters for a complete installation package

Product Highlights

The Roth 2335102642 delivers 400 gallons of fuel oil storage capacity with a double wall, dual-material construction that meets UL-2258 standards and provides secondary containment for spill protection. It is a complete, pressure-tested unit ready for residential and commercial heating oil installations.

Product Information

Standard Information

• Brand: ROTH
• Manufacturer Part Number: 2335102642

Technical Specifications

• Capacity: 400 gallons
• Width: 30 inches
• Length: 64 inches
• Height: 68 inches
• Tank Orientation: Vertical
• Wall Construction: Double wall
• Inner Tank Material: Seamless blow molded polyethylene
• Outer Tank Material: 19 gauge galvanized steel
• Top Tappings: Four 2 inch tappings
• Certification: UL-2258 listed
• Included Accessories: Detachable saddle base, two 3 inch plastic adapters, two metal adapters
