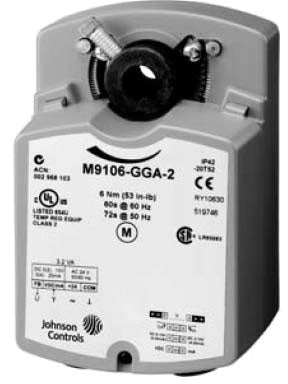

Johnson Controls M9106-GGA-2 - Rotary Actuator
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
- Electric Actuator
- Type Proportional Control
- Operation Type Non-Spring Return
- Voltage Rating 24 Volt AC
- Maximum AC Voltage 24 Volt
- Frequency Rating 50/60 Hertz
- Power Rating 2.5 Volt Amp
- Torque 53 Pound-Inch
- Angle of Rotation 30 to 90 Degree
- Limit Switch Contact Type SPDT
- Limit Switch Contact Rating 1.5 Amp Inductive, 3 Amp Resistive
- Enclosure NEMA 2, IP32
- Size 4.2 Inch Width x 2.64 Inch Depth x 5.9 Inch Height
- Shaft Diameter 3/8 to 1/2 Inch (Round), 3/8 Inch (Square)
- Application Heating, Ventilating and Air Conditioning/HVAC
- Approval UL 873, CSA C22.2, CE, EMC
