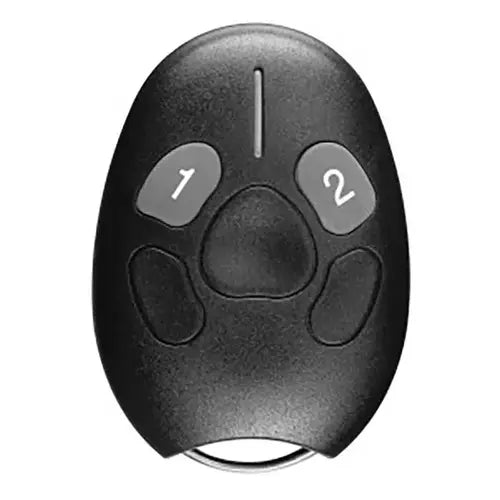

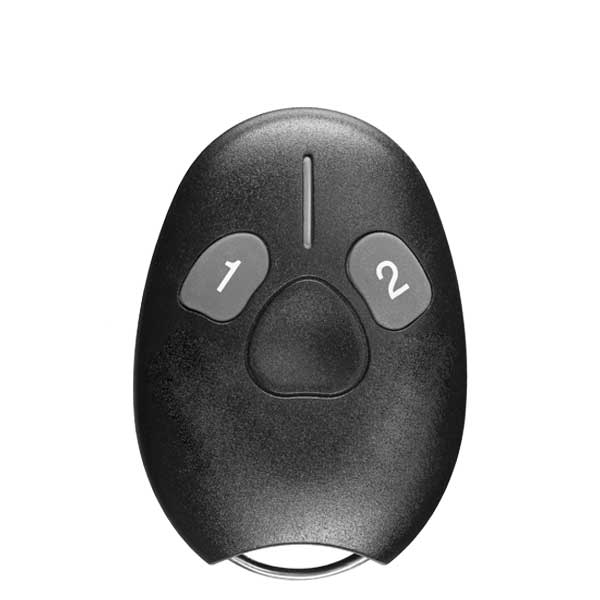

Rosslare SA-23-B2G Dual Channel Remote Transmitter - For AY-L23 Reader

Product Description

The Rosslare SA-23-B2G is a wireless remote control used with the AY-L23 Outdoor Long-Range RF Reader. It can send a signal to the AY-L23 from up to 70 m away and output the command signal in 2 different Wiegand formats. Each button can be programmed to a different Wiegand ID for access control operations.

• Dual-Channel Transmitter
• Programmable Wiegand ID for each button
• Flexible and advanced access control operations

Product Highlights

The SA-23-B2G remote transmitter is designed for use with the AY-L23 reader, offering dual-channel operation and programmable Wiegand IDs for enhanced access control.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: SA-23-B2G

Technical Specifications

• Brand: Rosslare
• Model: SA-23-B2G
• Condition: New
• SKU: ROS-SA-23-B2G
• Voltage: 3 VDC
• For Use With: AY-L23
• Operating Temperature: -25° to 145°F
• Function: Ingress/Egress Control
• Product Height: 1.57 Inch
• Product Width: 2.36 Inch
• Number of Buttons: 2
• Read Range: 230 ft
• Interface: Weigand
• IP Rating: IP65
• Product Depth: 0.47 Inch
• Standards: FCC; CE; TUV; RoHS
• Battery Used: CR2450
• Product Type: Access Control Part/Accessory
• Series: Access Control Accessory
• Manufacturer Parent: Rosslare Enterprises Ltd
• Sub-Series: SA-23-B2G
