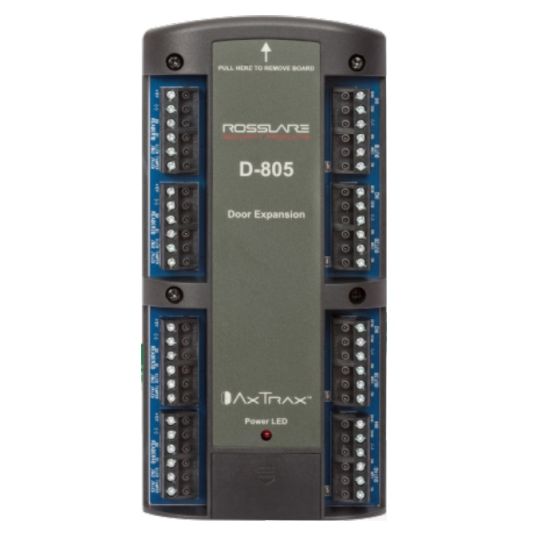

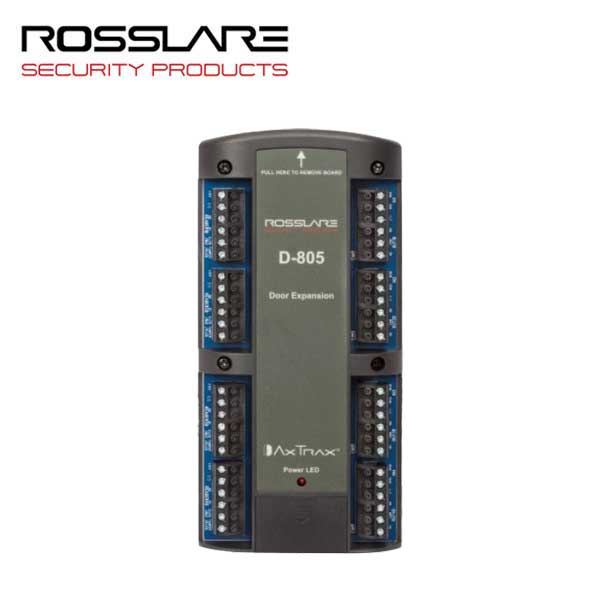

Rosslare D-805 Expansion Board for 825

Product Description

The ROSSLARE D-805 expansion board is for the AC-825IP networked controller, ideal for residential and commercial applications. The D-805 expansion board increases flexibility to the access control system by adding four readers, four doors, four relay outputs and eight supervised inputs to the controller.

• Expansion Board of AC-825IP
• Ideal for residential and commercial applications
• Adds four readers, four doors, four relay outputs and eight supervised inputs to the controller

Product Highlights

This expansion board supports up to 58 doors and 100,000 users. It also features onboard TCP/IP networking with data encryption to an AxTraxNG server.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: D-805
• Country of Origin: China

Technical Specifications

• Enclosure: ME-1515 (up to 2 R/S/D/P expansions)
• Enclosure SMPS: Input: 90 to 265 VAC, 50–60 Hz, Switch mode power management board Output: 12 VDC, 4 A
• PCBA Input Power: 12 VDC, 2 A, regulated power management board
• Battery Charger: 12 V sealed lead acid (SLA) up to 7 Ah
• Relays 5 A, Form-C: 4
• Inputs: 8
• Readers (Wiegand+OSDP): 4
• Connectivity: OSDP
• Board Dimensions: 7.0 x 3.4 x 1.1 in.
• Enclosure Dimensions: 13.6 x 15.9 x 3.9 in.
• Also Known As: D805
• For Use With: AC-825IP head panel (sold separately)
• Manufacturer: Rosslare
• Model Number: D-805
• Power Requirements: 12VDC
• Usage: Interior Use
• Door Expansion Features: 4 x Wiegand Readers 4 x Relay Outputs (Form C, 5A) 8 x Supervised Inputs
• Vendor Item No.: D-805
• Item Category Code: ACCESS CONTROL
• Brand: Rosslare
• MPN: 4897027885415
• Condition: New
• Country of Origin: China
