Rosslare AYC-Q64B Convertible Anti-Vandal Backlit 3x4 PIN

Product Description

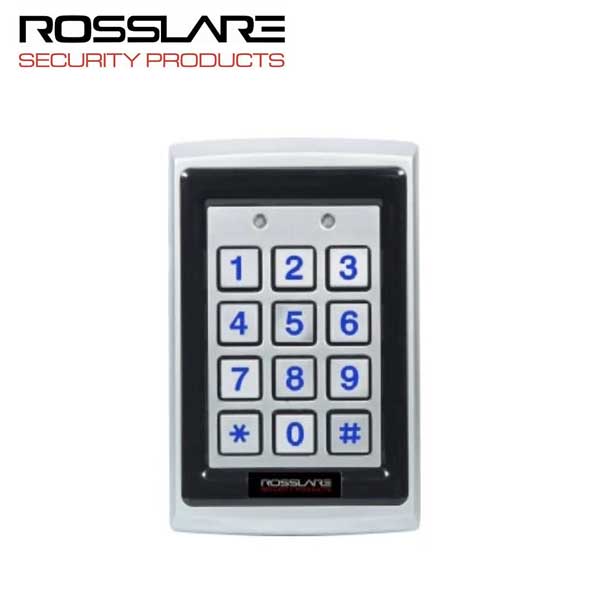

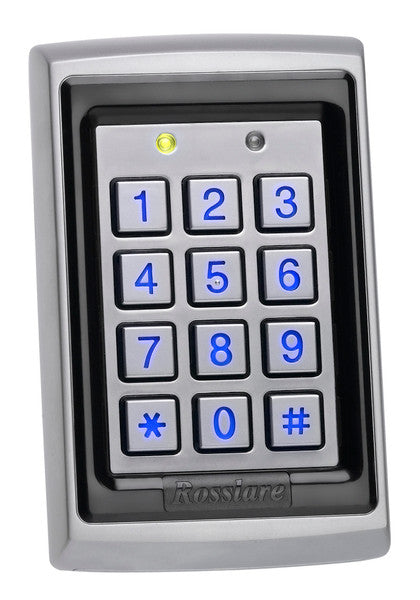

The Rosslare AYC-Q64B is a convertible anti-vandal proximity reader with a 3x4 matrix backlit keypad. UL294 Approved, it can function as an outdoor backlit keypad and proximity reader when connected to a standard controller. Alternatively, it can convert into a 500-user stand-alone controller with Rosslare's PS-x5 power supply units.

• Part of the Convertible line of readers / controllers
• Can be operated as an outdoor backlit keypad & proximity reader
• Connects to any standard controller

Product Highlights

Effective for indoor and outdoor access systems requiring PIN & proximity credentials. Features blue illuminated metal keys and a metallic, epoxy-filled, sealed housing.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: AYC-Q64B

Technical Specifications

• Recommended Uses For Product: security
• Brand: Rosslare security products
• Power Source: Corded Electric
• Mounting Type: Wall Mount
• Supported Credentials: Supports 4 to 8-Digit PIN credentials and 125KHz EM type RFID cards and tags
• Operation: Smooth, attractive design, with all-weather indoor and outdoor operation
• Keypad: Large, highly-visible BLUE Backlit Keypad
• Indicators: 2 tri-colored LEDs and an integral sounder for programming and operation
• Menu: User friendly menu, based on keypad, LED and sounder indicators
• Tamper Detection: Back and Cover Optical tamper detection and output
• Default Operation: Default operation as a multi-format reader (Wiegand 26 bits / Clock & Data)
• Intelligent Power Supply Family: Automatically recognizes Rosslare’s PS-x5 intelligent power supply family converting it into a 500-user stand-alone controller with secure relays
• PIN Transmission Modes: 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3×4 Matrix
• Transmission Formats: Supports Wiegand or Clock & Data Transmission formats
• Included: Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
• Operating Voltage Range: 5–16 VDC from a standard controller
• Input Current: 90 mA at 12 VDC
• Input Current Max: 130 mA at 16 VDC
• Max Read Range: 45 mm (1.8 in.) Modulation: ASK at 125 kHz
• Compatible Cards: All 26-Bit EM cards
• Tamper: Optical back tamper sensor, O.C. active low, 32 mA max. sink current
• Design: Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments.
• Audio/Visual: Two tri-color LED indicators, built-in buzzer
• LED Control: Dry Contact N.O.
• Facility Code: Programmable
• Read Card Format: Selectable Wiegand 26-Bit or Clock & Data
• Controller Capacity: 500 users, dual code/card or code + card each
• User Levels: Normal, Secure, Master
• Security Modes: Normal, Bypass, Secure
