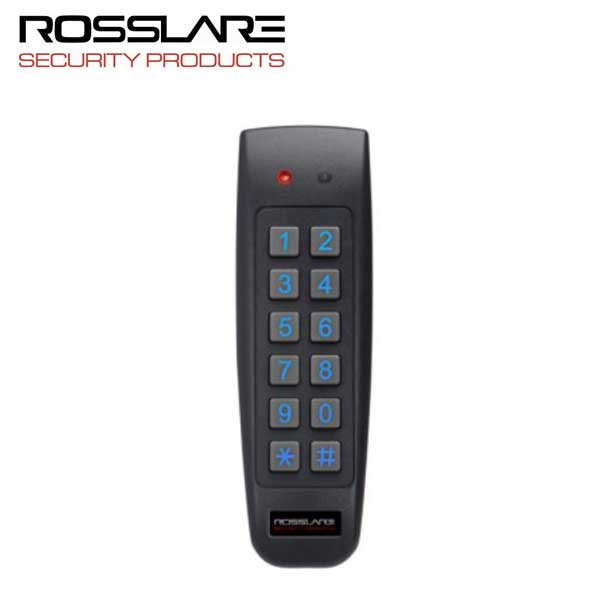

Rosslare AYC-G60 Mullion Go Prox & PIN Convertible Reader - Controller

Product Description

The ROSSLARE AYC-G60 reads HID Prox Cards/Tags (125 kHz FSK) using Genuine HID Technology and outputs HID Prox card data in Wiegand. It also reads Rosslare PROX – EM Proximity Cards (125 kHz – EM) and can output EM card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. As a controller, it allows entry via PIN or proximity card for up to 500 users.

• Advanced, secure, multi-application functionality for intelligent installations
• Smooth, attractive design, with all-weather indoor and outdoor operation
• 2 tri-colored LEDs and an integral sounder for programming and operation

Product Highlights

The AYC-G60 reader supports multi-format reading and operates as a reader or a 500-user standalone controller when connected to a compatible power supply. Features backlit piezoelectric keys and tamper detection.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: AYC-G60

Technical Specifications

• Operating Voltage Range: 5–16 VDC
• Input Current: 100 mA
• Input Current Max: 140 mA
• LED Control Input: Dry Contact N.O.
• Operating Temperature: -35°C to 66°C (-31°F to 151°F)
• Item model number: AYCG60
• Access Codes/Capacity: 1 Door 500 Users with PS-5x
• Connections: Shielded Interface Cable
• Environment - Application: Indoor Use
• Expandable: No
• Programming: Keypad
• Type/Mount: Backlit PIN/PROX Reader/Controller
• Wireless: No
