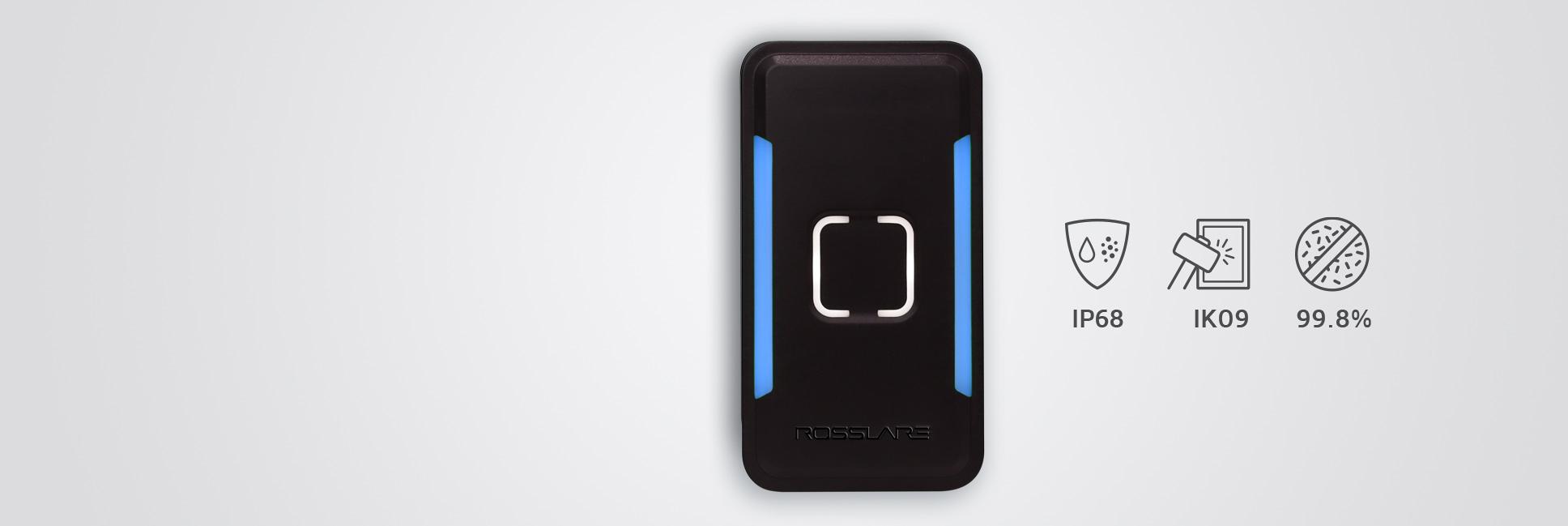

Rosslare AY-K35 Multi-Smart Reader

Product Description

The ROSSLARE AY-K35 Multi-Smart Reader features multi-technology and OSDP secure channel communication, bringing versatility and scalability to physical access control. It supports NFC and BLE mobile credentials, 125 kHz FSK and ASK, 13.56 MHz, and MIFARE Classic Sector credentials. The reader is dust and water resistant, vandal proof and has anti-microbial properties.

• OSDP V2 secure channel enhanced by AES 128 encryption.
• Bluetooth and NFC mobile identity for iOS and Android credentials using Rosslare BLE-ID app or SDK.
• Water resistance with an IP68 rating and vandal-proof resistance with an IK09 rating.

Product Highlights

The AY-K35 reader supports multiple technologies, is protected against the elements and vandalism, and reduces the risk of contamination.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: AY-K35

Technical Specifications

• Frequency: 125Khz + 13.56 MHz + 2.4GHz
• Technology: Bluetooth + MIFARE, DESFire (CSN), NFC, Iclass (CSN), Prox, HID Prox
• Interface: Wiegand, OSDP V1 and V2, C&D
• Read Distance: BLE - 12m / 13.56 MHz - 50mm / 125 kHz - 80mm
• Tamper (Open collector): 20mA
• Outdoor: √
• Vandal Resistance: IK09
• IP Rating: IP68
• Antimicrobial Efficacy: 99.8%
• Operating Voltage (VDC): 8.5 -16
• Finish: Black
• Format: 26-bit Wiegand Output
• Manufacturer: Rosslare
• Model Number: AY-K35
• Power Requirements: 12VDC
• Usage: Weather Resistant
• Maximum Current: 300mA at 12VDC
• Operating Temperature: -35 degrees C to 66 degrees C (-31degrees F to 150 degrees F)
• BLE Read Range*: 12 m (39.3 ft) (line of sight)
• RFID and NFC Read Range**: Contactless: 13.56 MHz: 5 cm (1.97 in.), 125 kHz: 8 cm (20.32 in.)
• LED/Buzzer Controls: Dry Contact, N.O
• Tamper / Touch Button Output: Optical tamper, open collector, active low, max. sink current 20 mA @12 VDC, 10 mA@5 VDC. Current limit: 500 Ω series resistance
• RFID: 125kHz ASK 125kHz FSK - supports Wiegand 26, 32, 34, 35, 37, 40, 48 bit 13.56MHz: ISO14443A (UID): MIFARE® Classic® EV1: Sector Read, MIFARE® Ultralight® Nano /Ultralight EV1/ Ultralight C, MIFARE Classic® / Classic EV1, MIFARE Plus® S / SE / X / EV1, MIFARE DESFire® EV1, LEGIC ISO14443B (UID), ISO15693 HID®, iClass®, PicoPass, iCode, LEGIC ISO18092 (UID): SONY® FeliCa®
• Communication and Controller Connection: Wiegand 26-64 bit***, Clock & Data, and OSDP Secure Channel V2 via 11-wire Pigtail (58 cm / 22.8 in.)
• Operating Environment: IP68, UV-resistant, epoxy-potted, suitable for indoor and outdoor use
• Operating Temperature Range: -35°C to 66°C (-31°F to 150°F)
• Operating Humidity Range: 0% to 95% (non-condensing)
• Antimicrobial efficacy: Inhibits bacteria proliferation by up to 99.8%
• Material Type: Tough polycarbonate plastic
• Enclosure Dimensions (H x W x D): 88 × 48 × 24 mm (3.46 x 1.89 x 0.94 in.)
• MPN: AY-K35
• Equipment Type: RFID Reader
• Model: AY-K35
