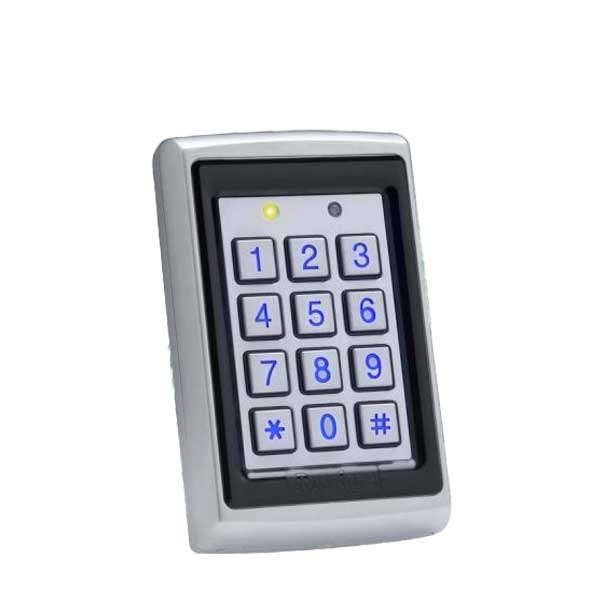

Rosslare AC-Q42HB Backlit Proximity & Pin Standalone Reader

Product Description

The ROSSLARE AC-Q42HB is an advanced 500-user standalone controller featuring anti-vandal metal keys for PIN code and a built-in 125 kHz RFID card reader for RFID user credentials. It has a rugged metal construction ideal for installations in high-traffic environments and removable terminal blocks for quick installation, and advanced programming options.

• Built-in 125 kHz RFID card reader
• 500 users can have PIN and / or RFID user credentials for granting access
• Smooth attractive design, with anti-vandal construction

Product Highlights

Features a highly-visible blue backlit keypad, slim rugged metal construction, and supports up to 8-digit PIN codes. Includes 2 tri-colored LEDs and integral sounder for programming and operation.

Product Information

Standard Information

• Brand: ROSSLARE
• Manufacturer Part Number: AC-Q42HB

Technical Specifications

• Proximity Card Reader: Maximum read range: 2.5 in. Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards
• Capacity: 500 users, single / dual code each
• Keypad: 3x4 Blue illuminated Keys for local programming and 4 to 8 digit PIN codes entry
• User levels: Normal, Secure, Master
• Security Modes: Normal, Bypass, Secure
• Audio/Visual: Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, built-in sounder
• Design: Rugged metal enclosure, highly strong construction, blue backlit metallic keys. Suitable for extremely harsh environments.
• RFI Protection: > 10 V/m up to 1000 MHz
• Certifications: IP54 Water Resistant
• Brand: ROSSLARE
• Item model number: ACQ42HB
• Manufacturer: Rosslare
• Operating Voltage Range: 12 to 24 VDC, from a regulated power supply 16 to 24 VAC, from a transformer
• Input Current: (Heater Off) Standby: 85 mA, Maximum: 145 mA, at 12 VDC (Heater On) Standby: 565 mA, Maximum: 625 mA, at 12 VDC
• Relay Outputs: Lock Strike: 2A, N.O. and N.C. Auxiliary: 2A, N.O. and N.C
• Tamper: Optical back tamper sensor, O.C. active low 32 mA max sink current
• Inputs: REX: N.O. Dry Contact. Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes
