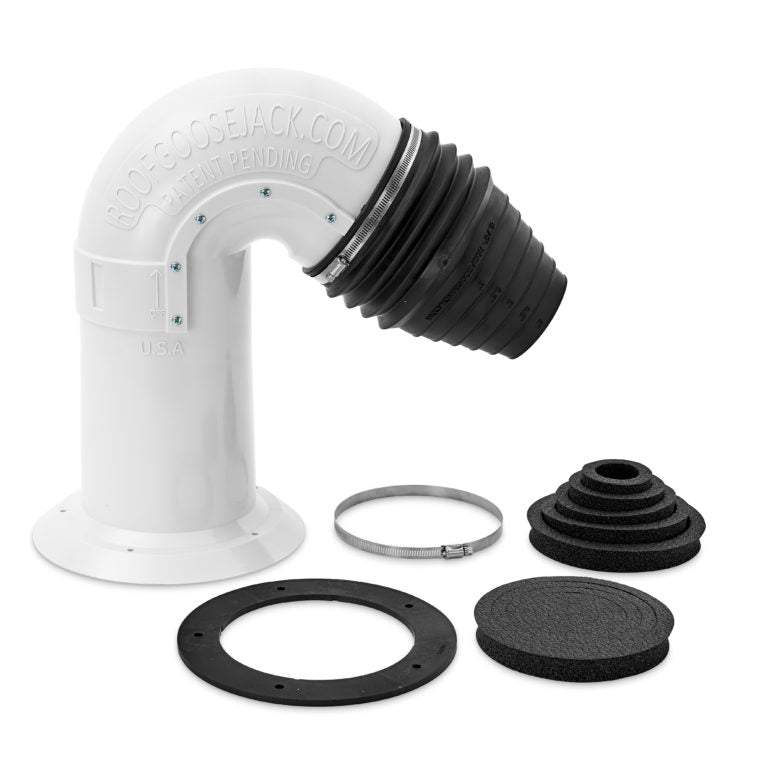

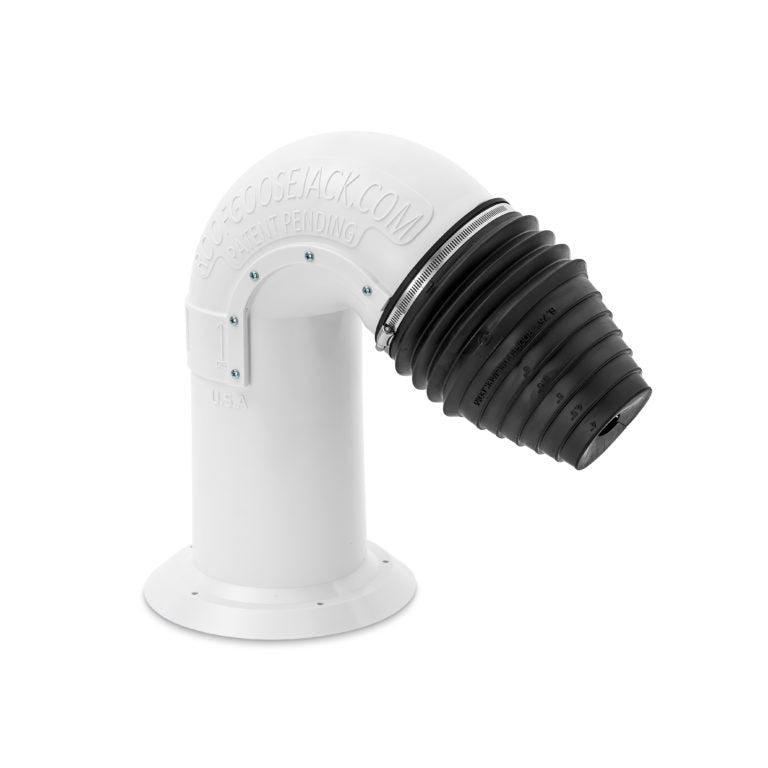

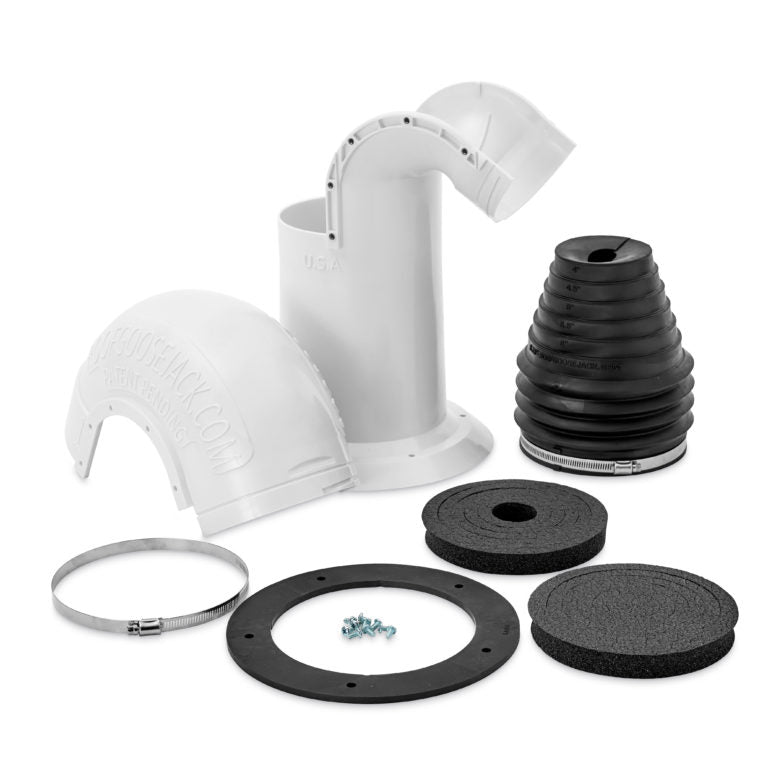

Roof Goose rj6-utility 6 Inch Roof Utility Termination

Product Description

The ROOF GOOSE rj6-utility is a 6-inch roof utility termination designed to provide a clean, weather-tight exit point for soft and malleable copper line sets through a roofing surface. Built as a contractor-focused alternative to traditional lineset doghouses and pitch pockets, this gooseneck-style roof fitting simplifies the process of routing refrigerant line sets from the rooftop to the conditioned space below. HVAC technicians and roofing contractors working on residential and light commercial systems will find this fitting straightforward to position and secure during installation.

The rj6-utility is suited for rooftop HVAC line set penetrations where a neat, low-profile termination is required. It is appropriate for use on pitched and flat roof assemblies where copper line sets need a protected passage point. The design targets scenarios where standard pitch pockets require excessive sealing work or where doghouse covers create additional complexity on the roof surface.

Key Features

• 6-inch utility termination opening sized to accommodate soft and malleable copper line sets
• Gooseneck roof jack design reduces water intrusion risk at the roof penetration point
• Engineered as a direct replacement approach for traditional lineset doghouses and pitch pockets
• Contractor-friendly design intended to reduce installation time and complexity

Compatibility

Designed as an OEM-style replacement fitting for residential and light commercial rooftop HVAC line set penetration applications using soft or malleable copper line sets.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified roofing contractor familiar with rooftop penetration practices. Disconnect and de-energize the associated HVAC system before routing line sets through the fitting. Follow all applicable local building codes and manufacturer instructions for flashing, sealing, and securing the termination to the roof deck to maintain a weather-tight assembly.

Technical Specifications

• Opening Diameter: 6 inches
• Line Set Compatibility: Soft and malleable copper
• Termination Style: Gooseneck roof jack

Standard Information

• Brand: ROOF GOOSE
• Manufacturer Part Number: rj6-utility
