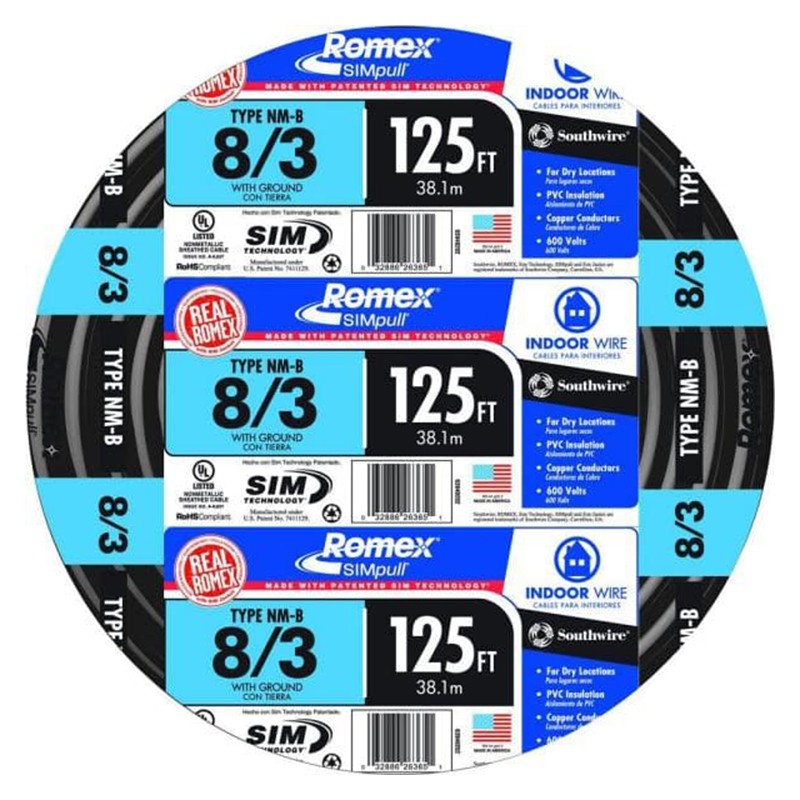

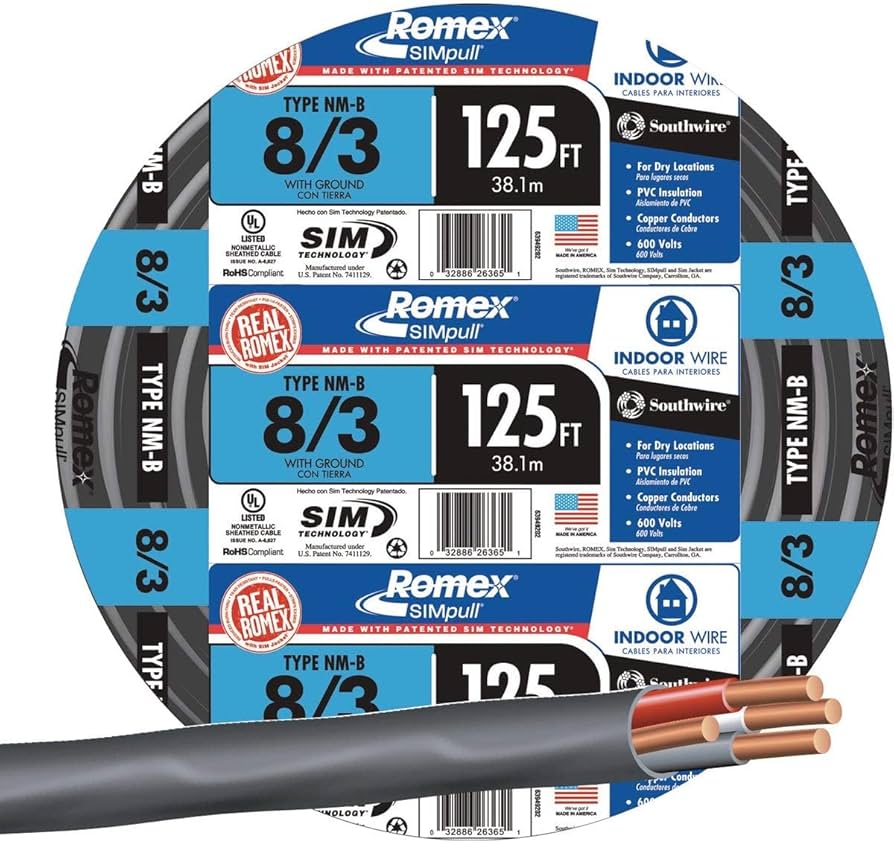

ROMEX ROMEX8/3W/GRDMR ROMEX 8/3 W/GRD MR NM-B Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable

Product Description

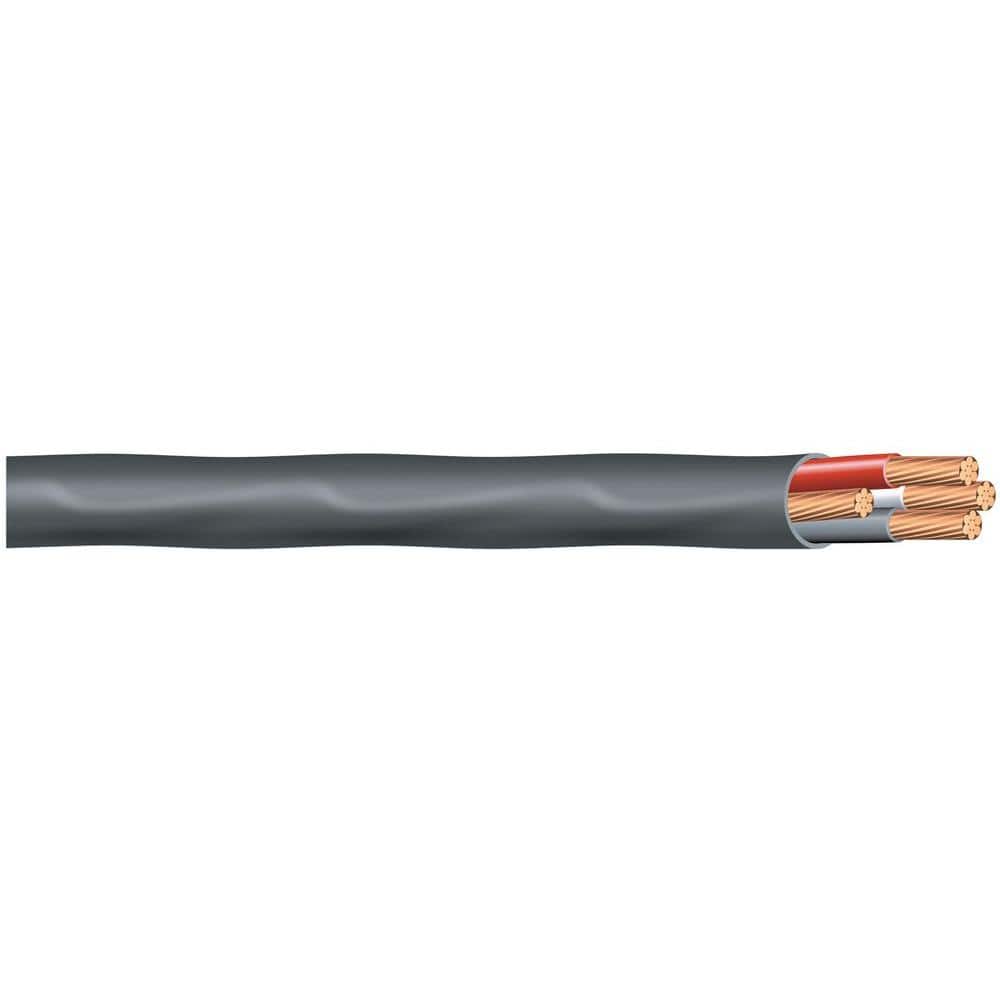

The ROMEX 8/3 W/GRD MR is a Type NM-B non-metallic sheathed cable made for residential electrical use. This cable acts as a branch circuit cable, providing power to outlets, switches, and appliances including stoves and dryers. It features bare copper conductors and is insulated with Polyvinyl Chloride (PVC) along with a Nylon sheath. A bare copper ground wire is also included. This product is suitable for both exposed and concealed installations in dry locations, allowing routing through air voids in masonry or tile walls, as long as these areas remain dry.

• Primarily used for residential branch circuits.
• Constructed with bare copper conductors, PVC/Nylon insulation.
• Engineered with SIMpull Technology for easier installation.

Product Highlights

The cable is designed with SIMpull Technology which reduces friction for smoother installation.

Product Information

Standard Information

• Conductor Material: Copper
• Conductor Size: 8 AWG

Technical Specifications

• Current Rating: 40 Amp
• Insulation Material: PVC with Nylon Sheath
• Number of Conductors: 3
• Stranding: 7 Strand
• Temperature Rating: 90 degrees C
• Type: NM-B
• Voltage Rating: 600 Volt
• Country of Origin: USA
