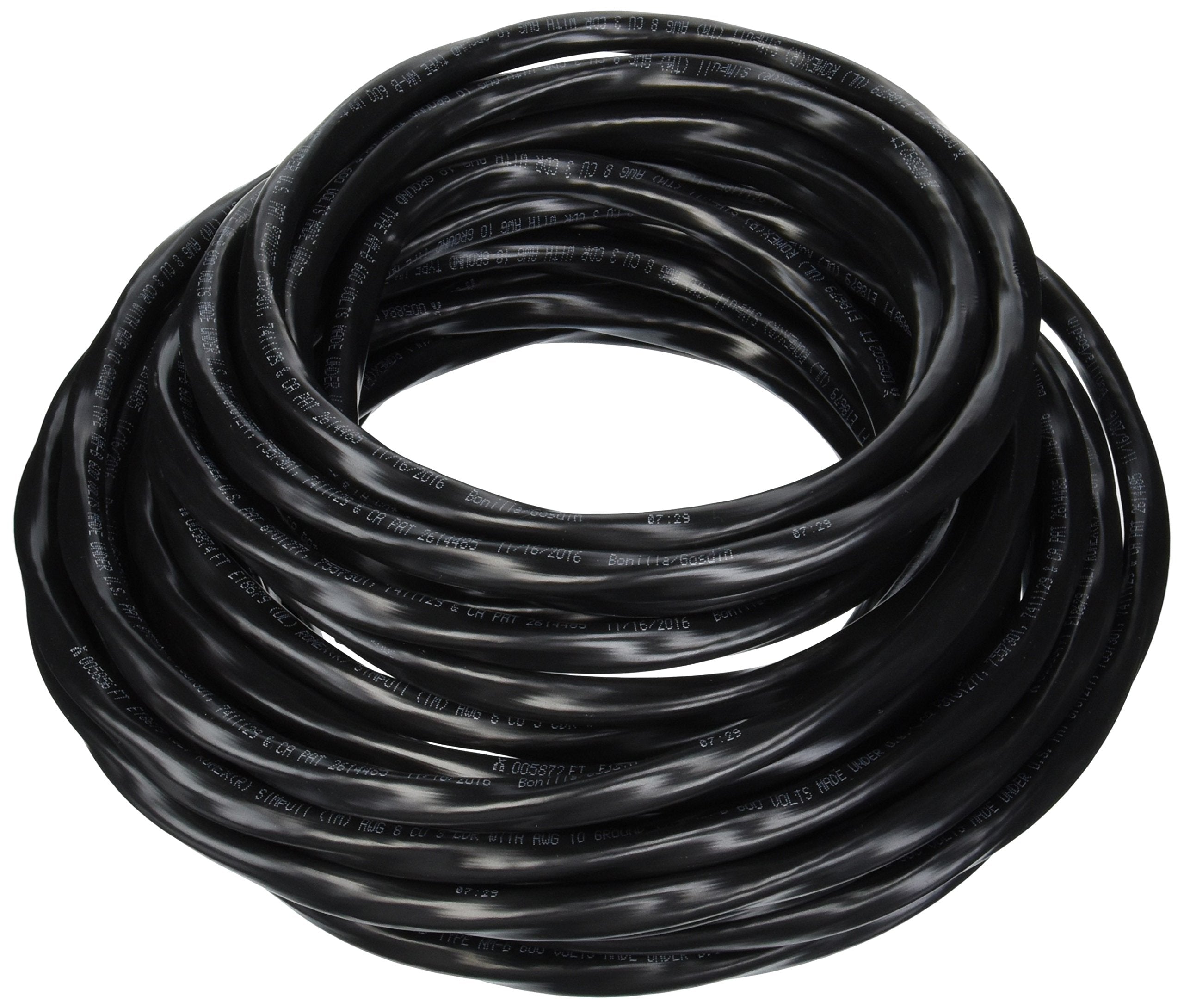

ROMEX ROMEX8/3W/GRD500R ROMEX NM-B 8/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable 500ft Reel

Product Description

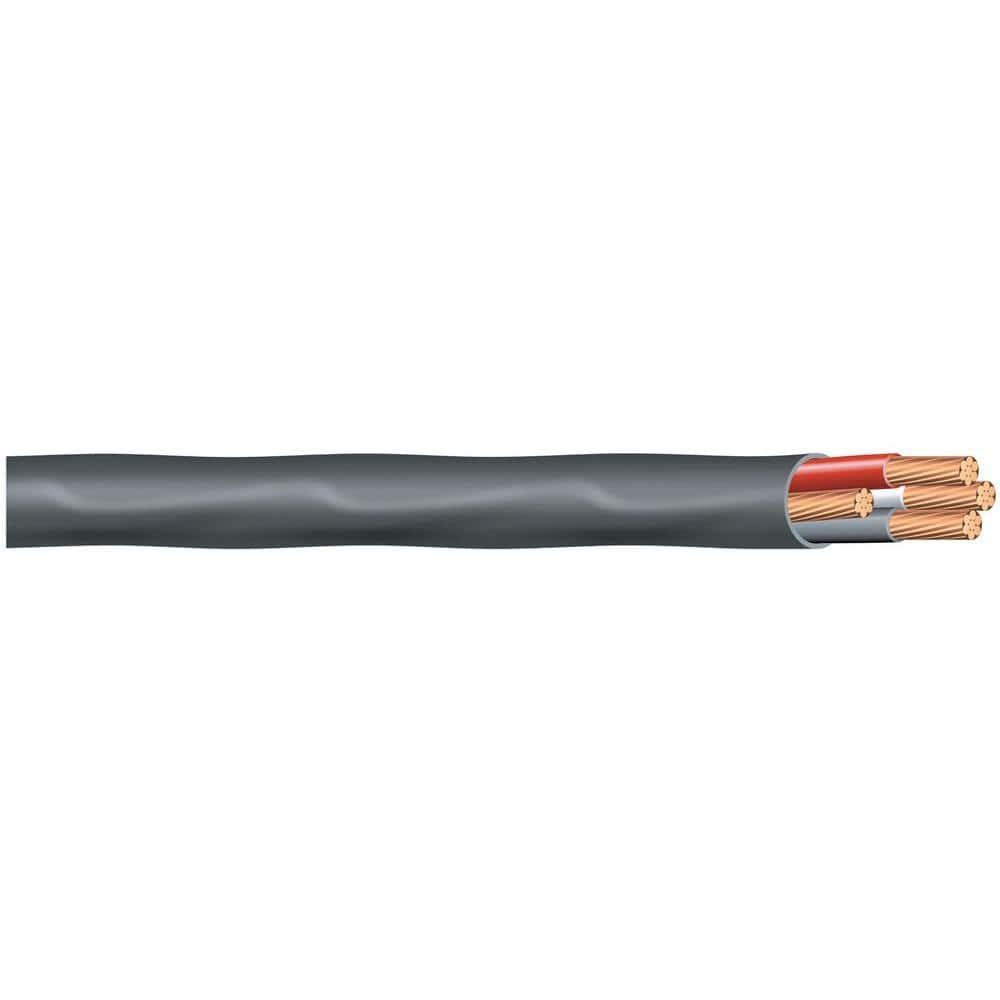

The ROMEX NM-B 8/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable, identified by MPN ROMEX8/3W/GRD500R, is a 500-foot reel suitable for both residential and commercial electrical applications. It features three 8 AWG copper conductors and an uninsulated ground wire, all encased in a weather-resistant plastic jacket. Rated for 600 volts, this cable can handle up to 40 amps, making it ideal for powering outlets, switches, and other electrical loads.

• Constructed with high-quality PVC insulation for durability.
• Designed for installation in dry locations.
• Suitable for use in both exposed and concealed work.

Product Highlights

Ideal for branch circuits supplying electrical outlets, this cable is built for versatile installation environments.

Product Information

Standard Information

• Manufacturer: Romex Wire
• Cable Type: NM-B

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 8 AWG
• Number of Conductors: 3
• Ground Wire Size: 10 AWG
• Voltage Rating: 600 Volt
• Ampacity: 40 Amps
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Jacket Material: Polyvinyl Chloride (PVC)
• Temperature Rating: 90°C (Dry)
• Spool Length: 500 ft
• Conductor Stranding: 7 Strand
• Insulation Thickness: 0.76 mm / 30 mils
• Jacket Thickness: 0.76 mm / 30 mils
• Approximate Outer Diameter (OD): 1.49 cm / 0.585 in
• Conductor Colors (3C): Black, Red, White
