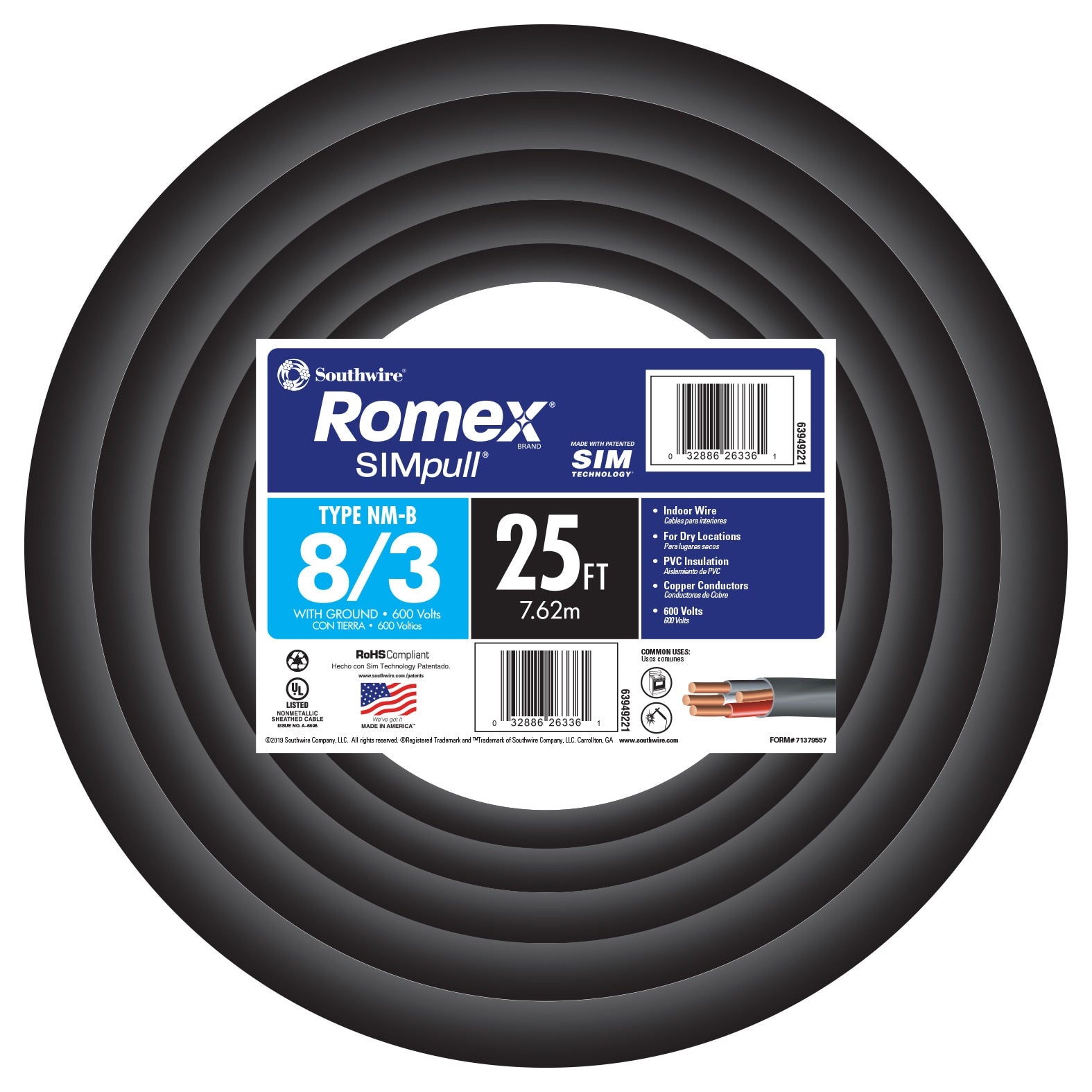

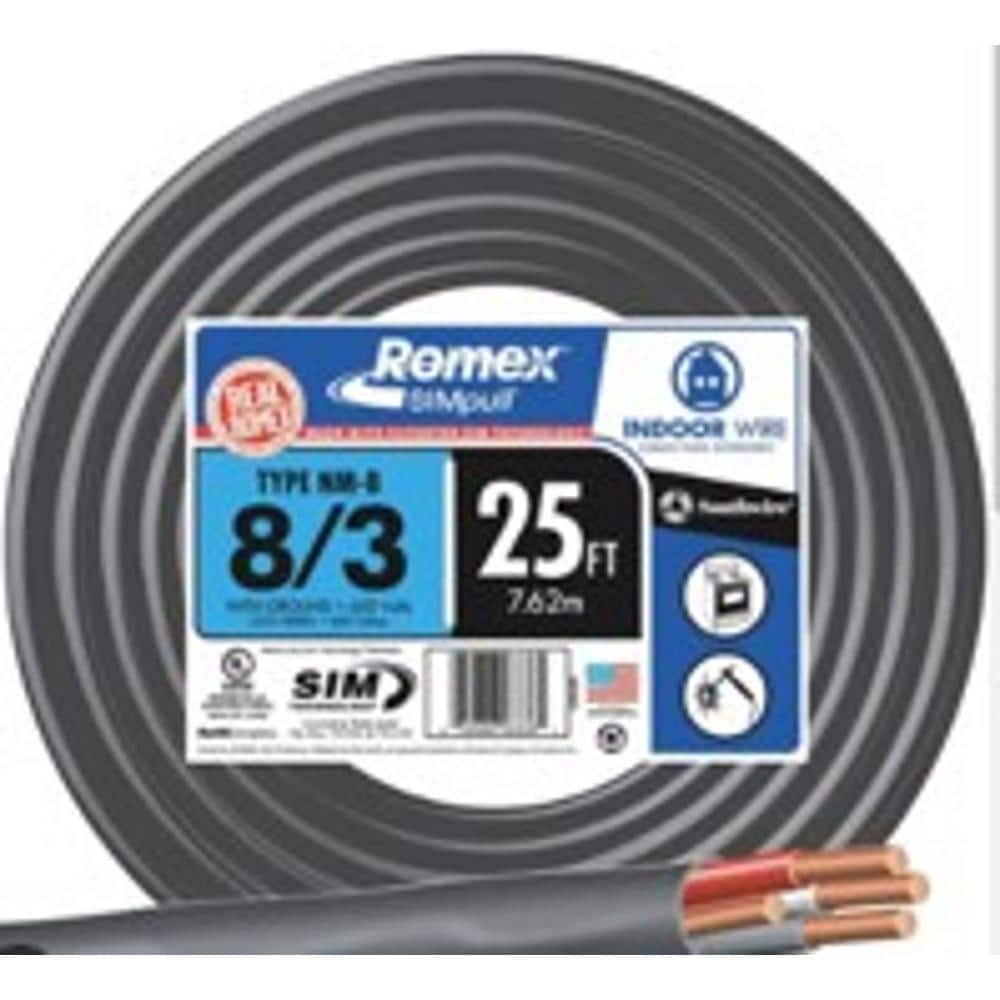

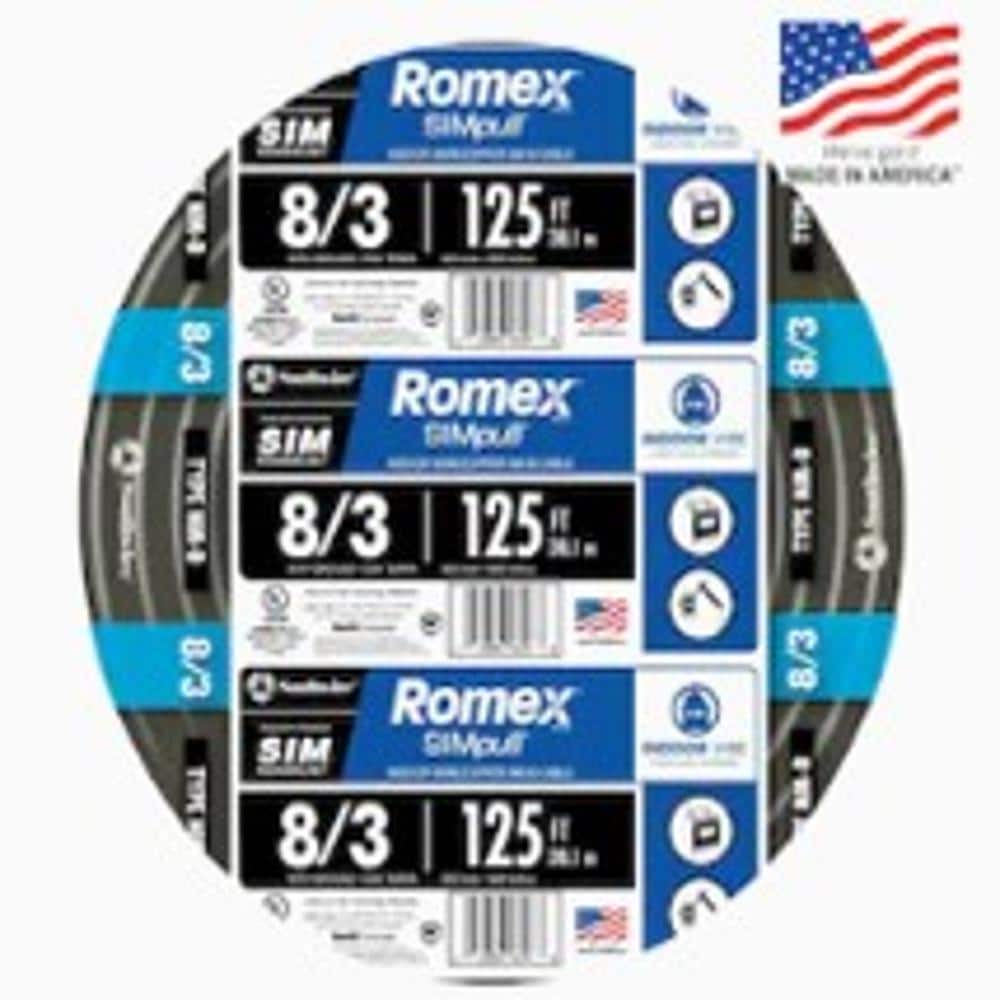

ROMEX ROMEX8/3W/GRD125C ROMEX NM-B 8/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable

Product Description

The ROMEX NM-B 8/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable, identified by MPN ROMEX8/3W/GRD125C, is designed for residential electrical use. This cable is essential for creating branch circuits that deliver power to various outlets and switches within buildings. It consists of copper conductors and features a durable insulation made of PVC and Nylon, along with a bare copper ground wire.

• Used for residential wiring, providing power to outlets and switches.
• Suitable for dry locations, both exposed and concealed.
• Equipped with SIMpull Jacket for easier installation.

Product Highlights

This cable meets requirements for branch circuit installations in residential settings.

Product Information

Standard Information

• Conductor Material: Copper
• Conductor Size: 8 AWG

Technical Specifications

• Number of Conductors: 3
• Current Rating: 40 Amp
• Insulation Material: PVC with Nylon Sheath
• Temperature Rating: 90 degrees C
• Voltage Rating: 600 Volt
• Cable Type: NM-B
• Stranding: 7 Strand (for #8 AWG)
• Country of Origin: USA
