ROMEX ROMEX8/3W/GRD1000R ROMEX NM-B 8/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable 1000ft Reel

Product Description

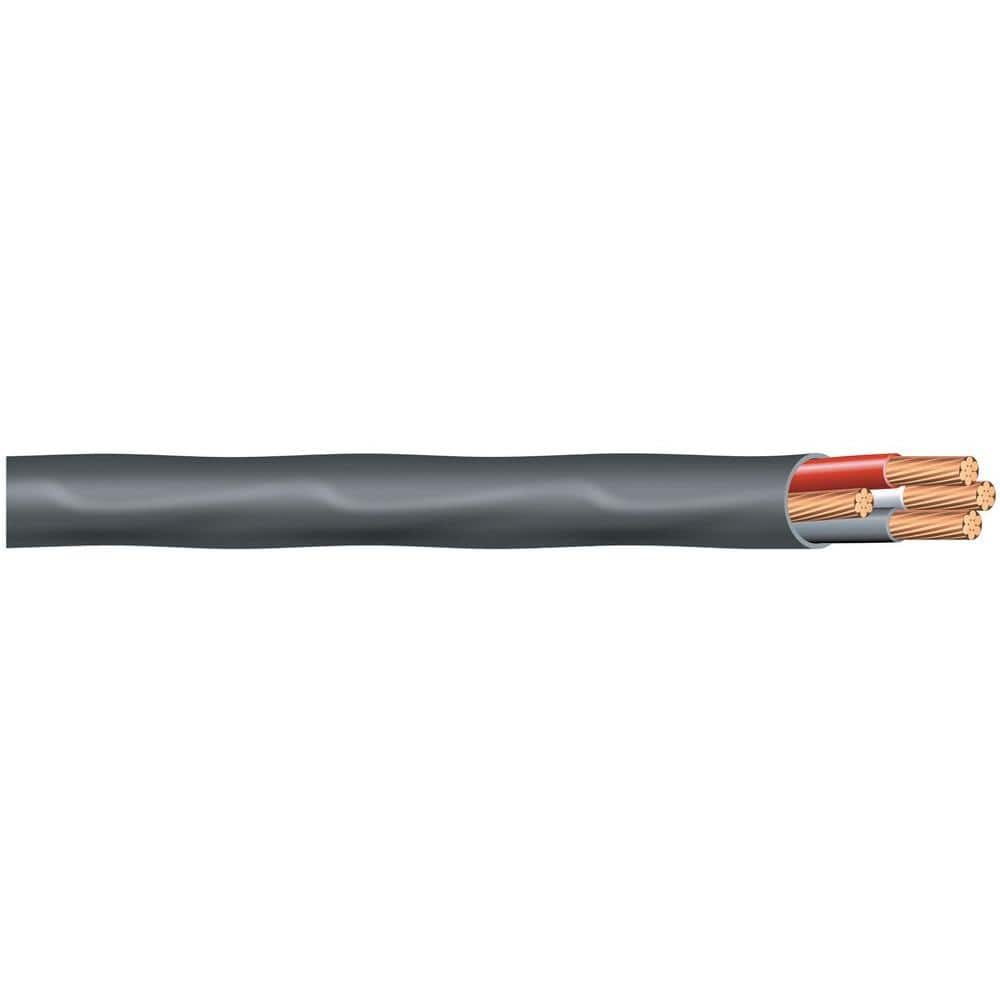

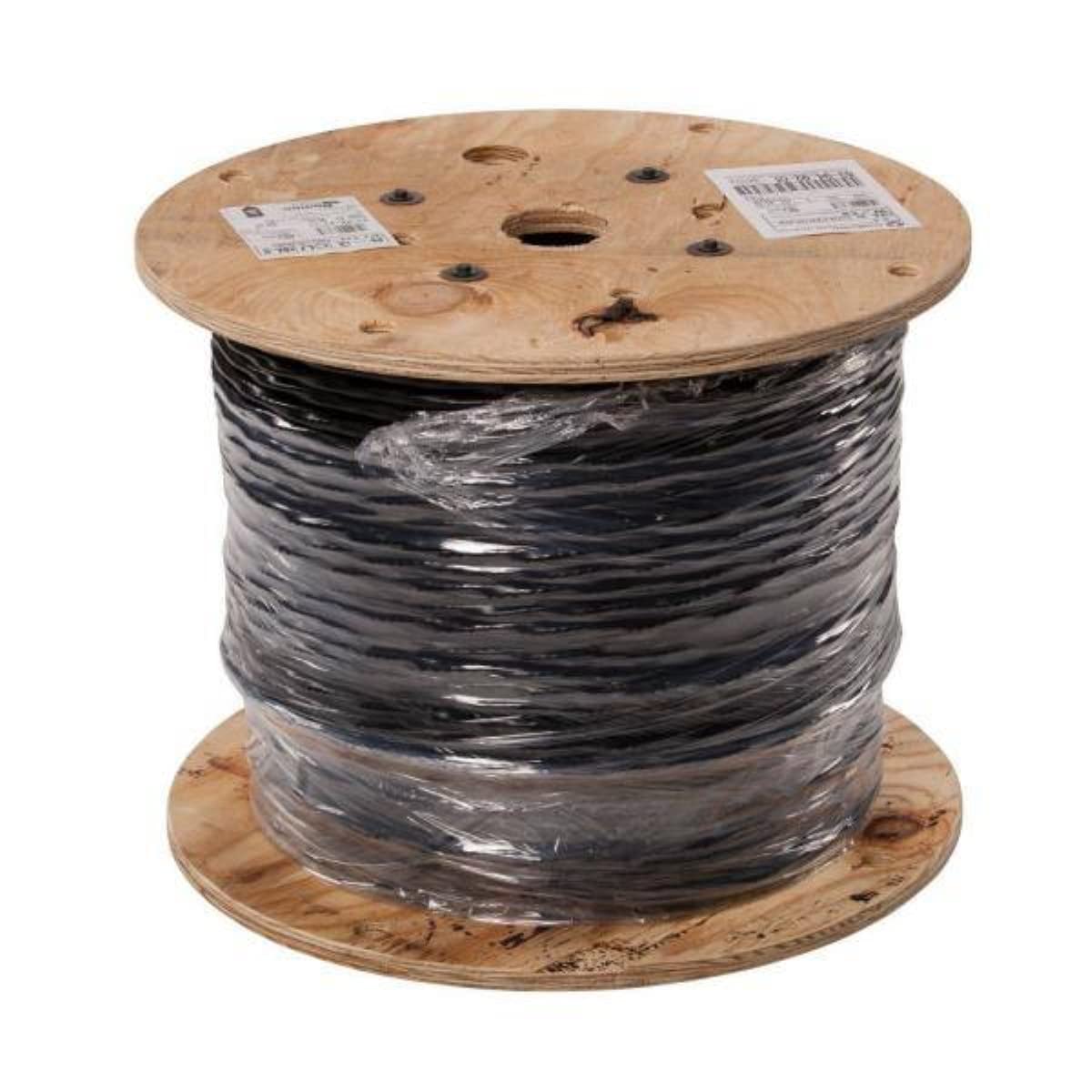

The ROMEX NM-B 8/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable is appropriate for both residential and commercial electrical wiring applications. This cable comes in a 1000-foot reel and includes three #8 AWG copper conductors and a separate bare ground wire. The conductors are insulated with a combination of Polyvinyl Chloride (PVC) and nylon, and the entire assembly is protected by a black PVC jacket. For ease of installation, it features SIMpull Technology that reduces friction during the pulling process.

• Features three #8 AWG copper conductors.
• Rated for fifty Amps and suitable for dry locations.
• Constructed with durable PVC for abrasion and moisture resistance.

Product Highlights

This NM-B cable is designed to connect various electrical loads, including outlets and switches, in dry conditions. Its construction allows for exposed or concealed installations.

Product Information

Standard Information

• Country of Origin: USA
• Conductor Material: Copper

Technical Specifications

• Conductor Size: 8 AWG
• Number of Conductors: 3
• Cable Type: NM-B
• Current Rating: 40 Amps
• Insulation Material: PVC with Nylon Sheath
• Jacket Material: PVC
• Stranding: 7 Strand
• Voltage Rating: 600 Volts
• Temperature Rating: 90°C (DRY)
• Ground Wire: Bare Copper
• Outer Diameter: 0.565 inches
• Spool Length: 1000 Feet
