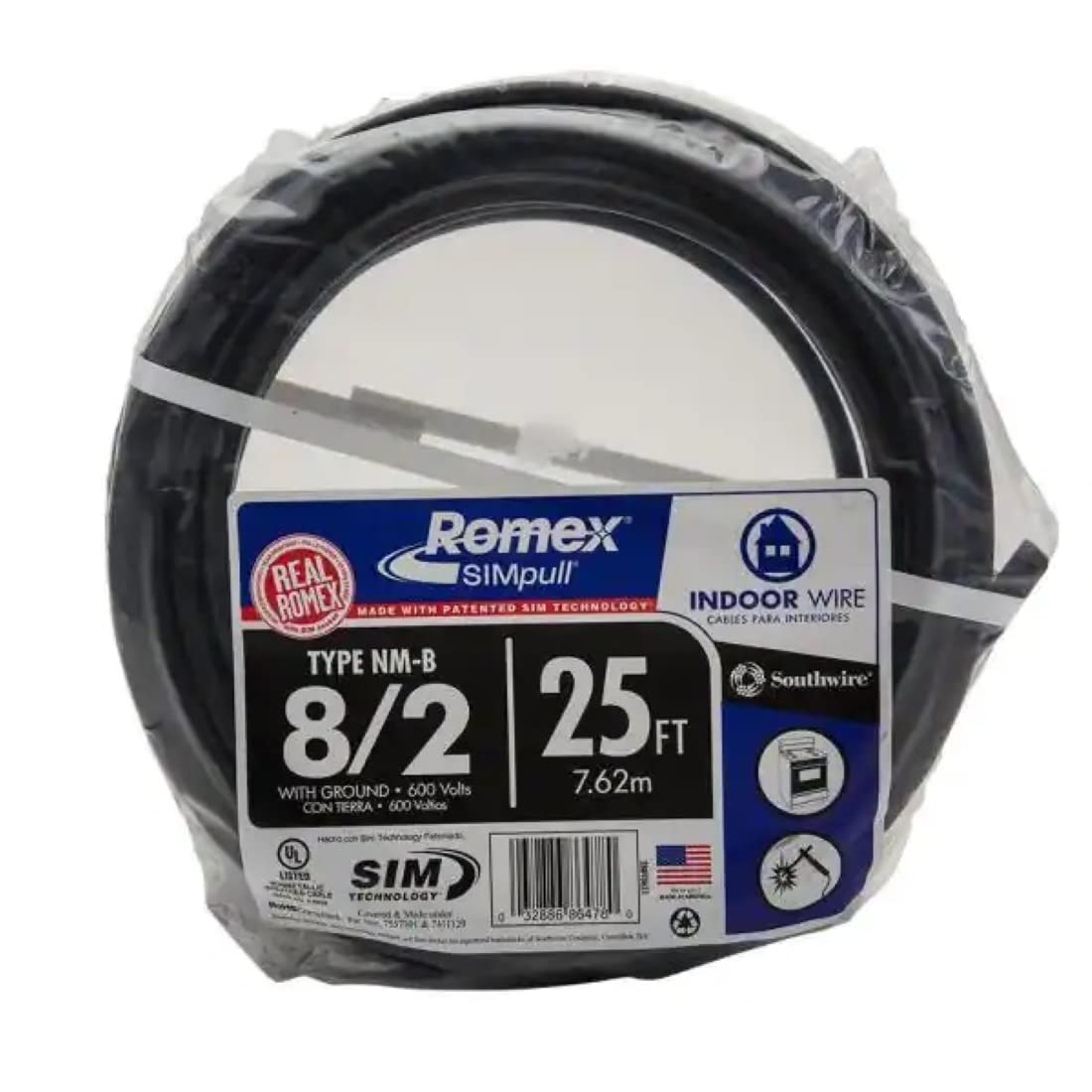

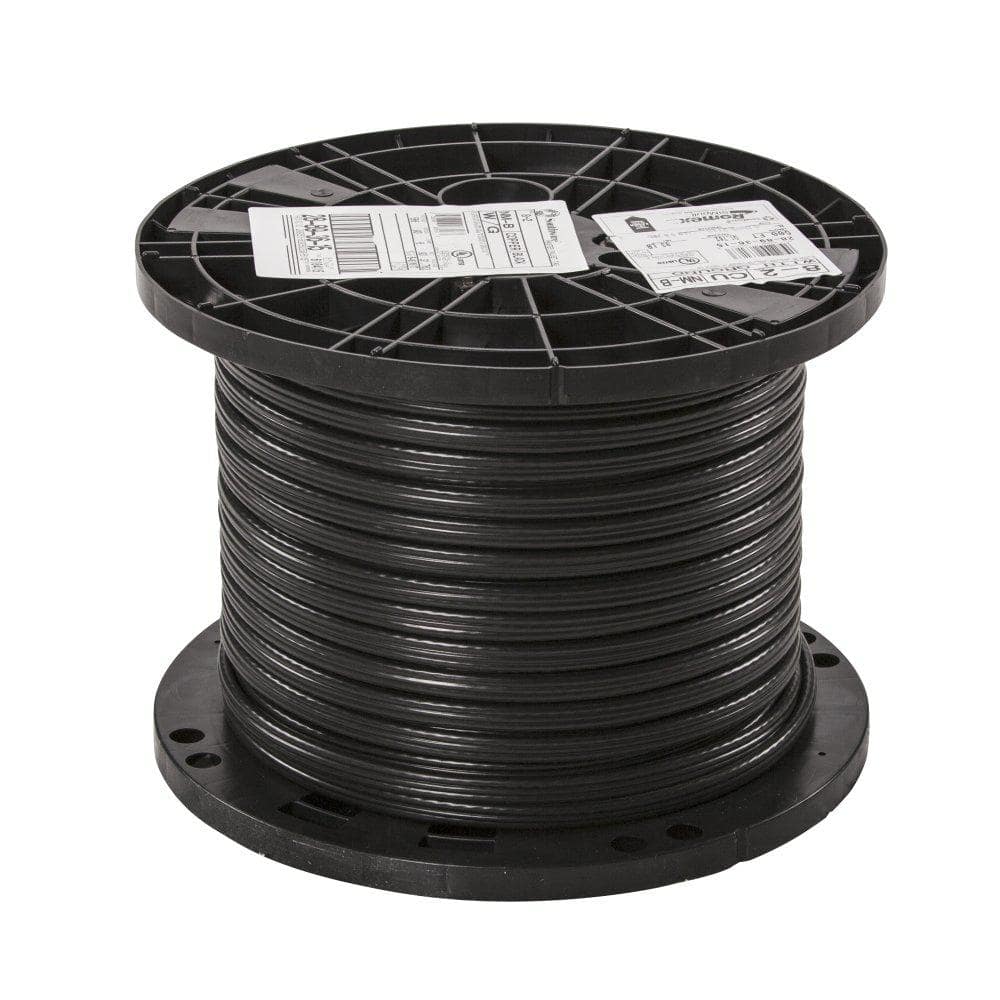

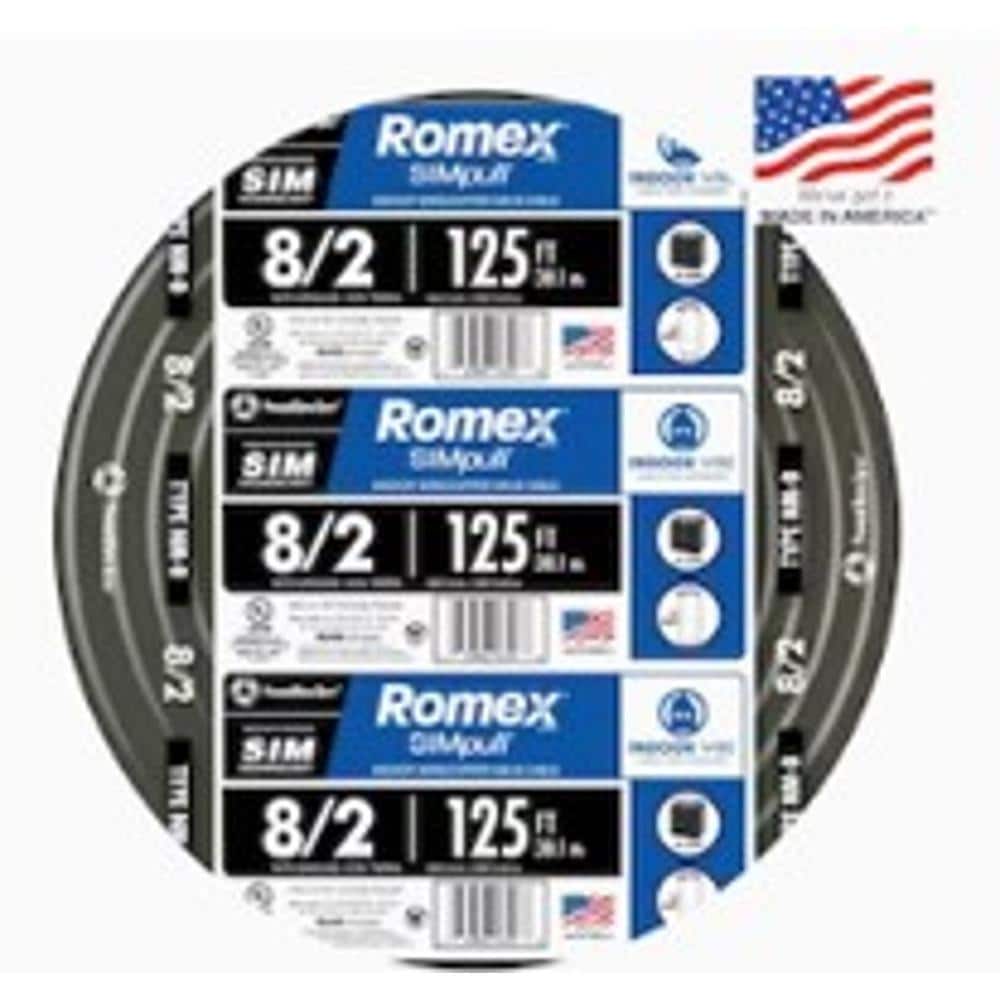

ROMEX ROMEX8/2W/GRD500R ROMEX NM-B 8/2 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable (500ft Reel) ROMEX8/2W/GRD500R

Product Description

The ROMEX NM-B 8/2 Copper with Ground Non-Metallic Sheathed Branch Circuit Cable (MPN: ROMEX8/2W/GRD500R) is suitable for residential wiring applications. This cable includes two 8 AWG insulated copper conductors and a bare copper ground wire, all encased in a PVC jacket. It is ideal for installed electrical systems in dry locations.

• Two 8 AWG copper conductors and one bare copper ground wire
• PVC jacket suitable for 600-volt applications
• Designed for branch circuits in dry indoor locations

Product Highlights

This cable has a maximum voltage rating of 600 volts and operates at a temperature of up to ninety degrees Celsius in dry conditions. It is designed with SIMpull Technology for easier handling during installation, making it a practical choice for electricians.

Product Information

Standard Information

• Brand: ROMEX
• MPN: ROMEX8/2W/GRD500R

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 8 AWG
• Number of Conductors: 2 (plus bare ground)
• Current Rating: 40 Amp
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Voltage Rating: 600 Volt
• Temperature Rating: 90°C (DRY) / 194°F
• Cable Type: NM-B
• Stranding: 7 Strand (Class B compressed stranded for 8 AWG)
• Jacket Material: Polyvinyl Chloride (PVC)
• Spool Length: 500 Foot
