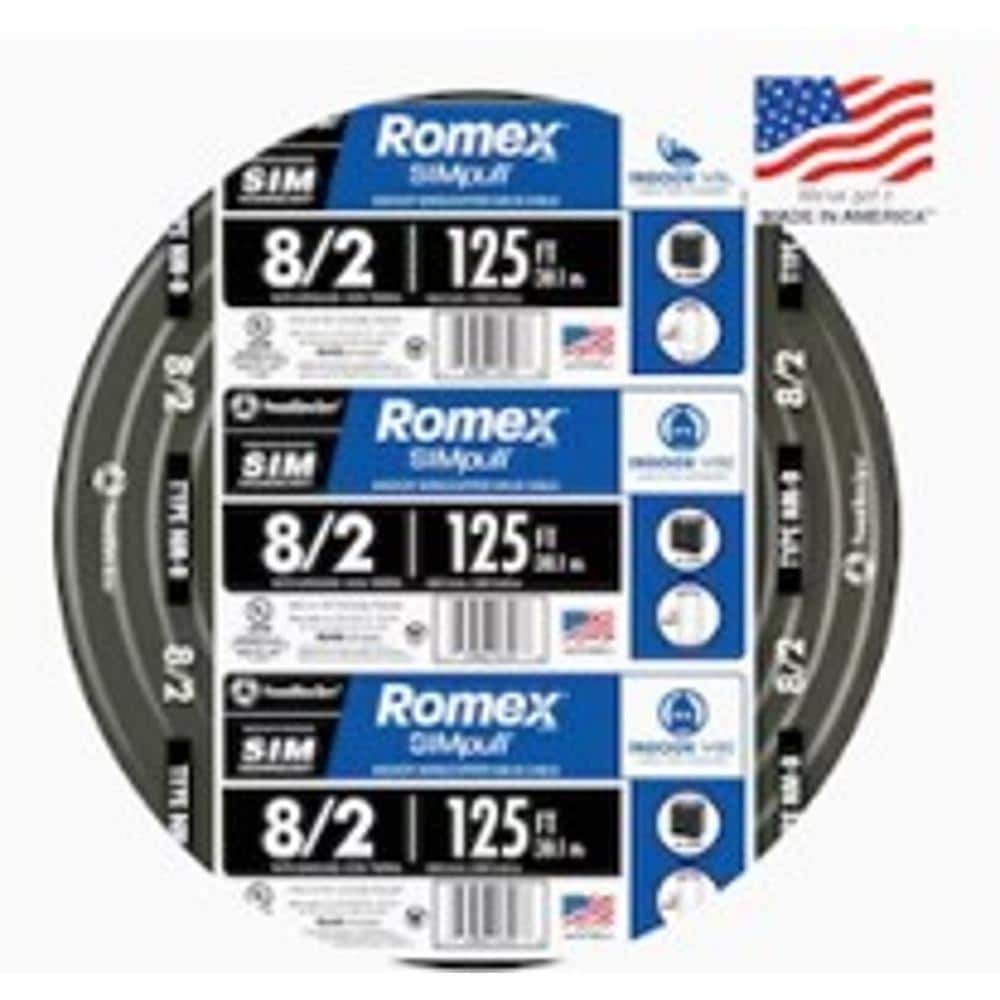

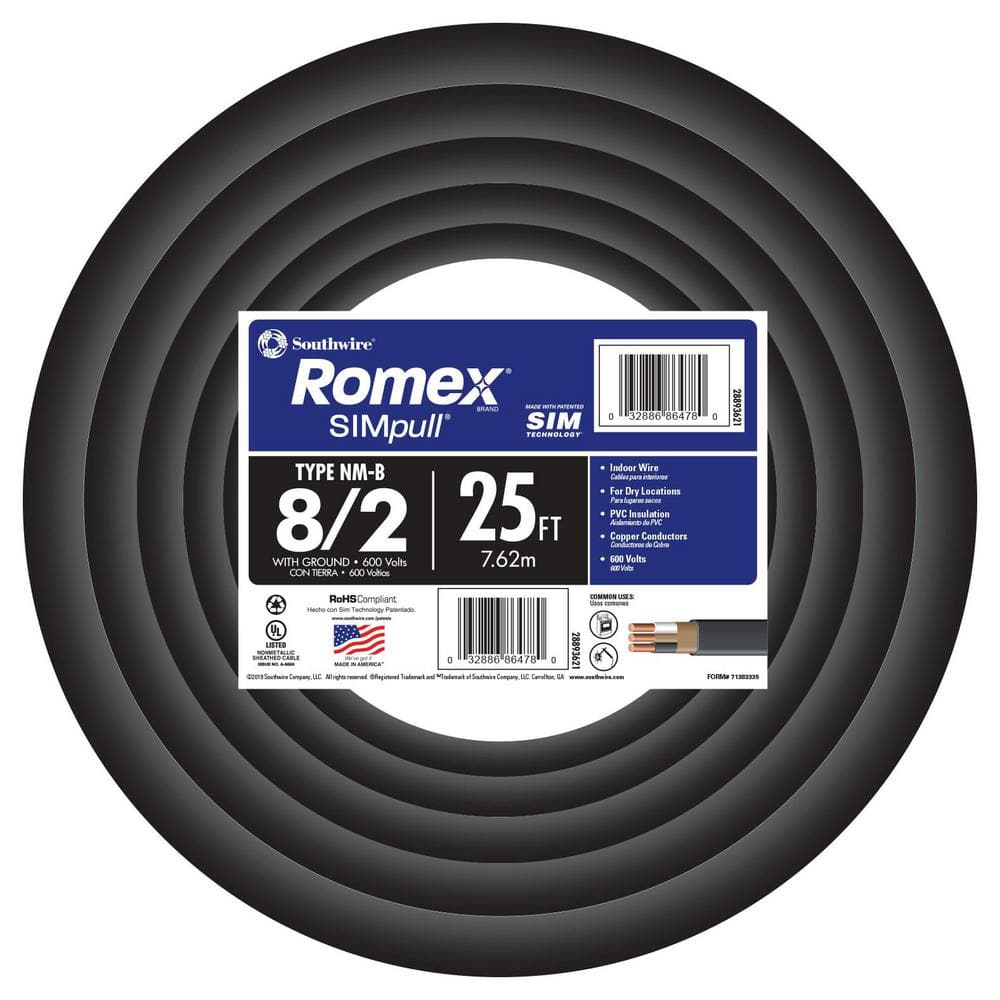

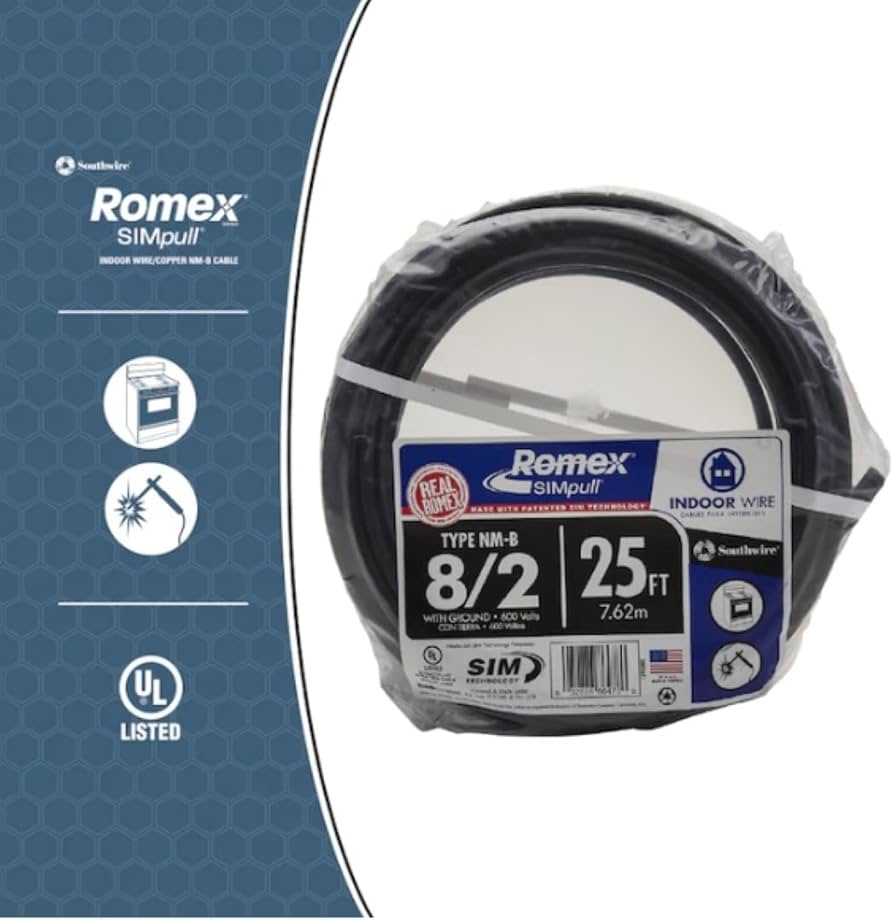

ROMEX ROMEX8/2W/GRD125C ROMEX NM-B 8/2 Copper with Ground Non-Metallic Sheathed Branch Circuit Cable 125ft Coil

Product Description

The ROMEX NM-B 8/2 Copper with Ground Non-Metallic Sheathed Branch Circuit Cable, identified by MPN ROMEX8/2W/GRD125C, is an electrical cable for various wiring projects. It comes in a 125ft coil and consists of two 8 AWG copper conductors along with a bare ground wire, all protected by a PVC jacket.

• Includes two 8 AWG copper conductors and a ground wire.
• Constructed with durable PVC insulation.
• Rated for a maximum voltage of 600 Volts.

Product Highlights

This NM-B type cable is designed for branch circuits, suitable for dry locations and capable of handling temperatures up to 90 degrees Celsius.

Product Information

Standard Information

• Conductor Material: Copper
• Conductor Size: 8 AWG

Technical Specifications

• Current: 40 Amp
• Insulation Material: PVC
• Number of Conductors: 2
• Stranding: 7 Strand
• Temperature Rating: 90 degrees C (DRY)
• Type: NM-B
• Voltage: 600 Volt
• Spool Length: 125ft
• Jacket Material: PVC
