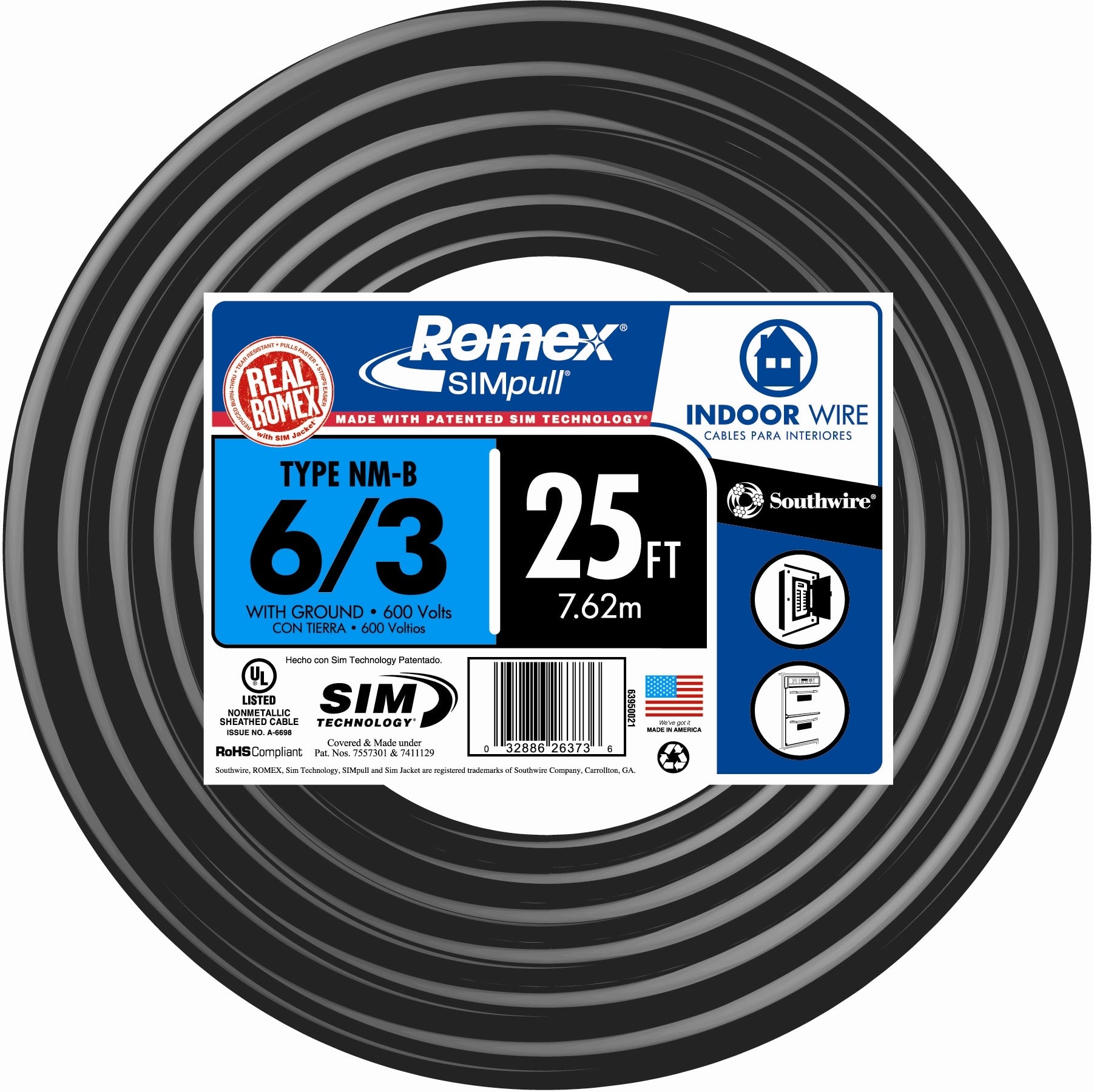

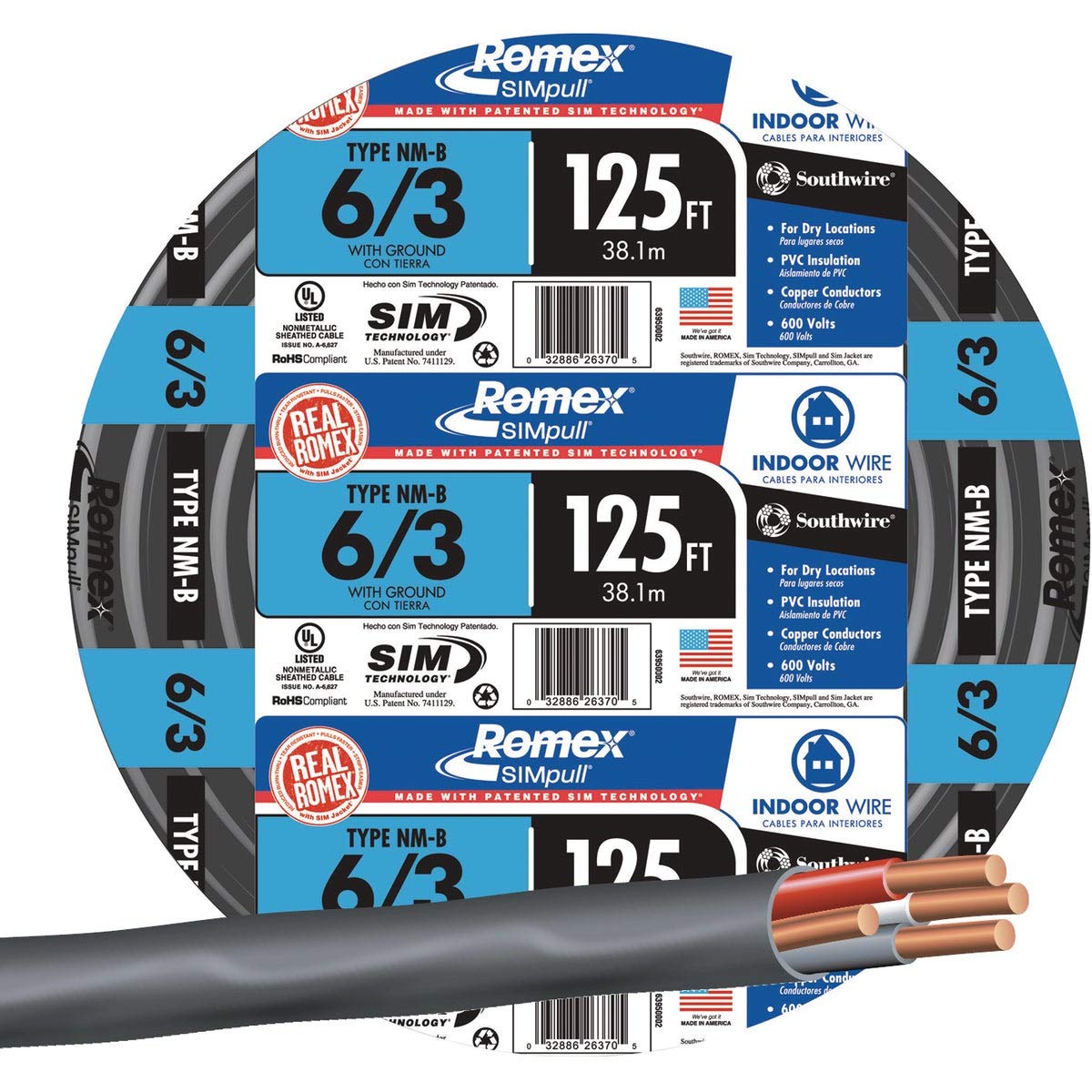

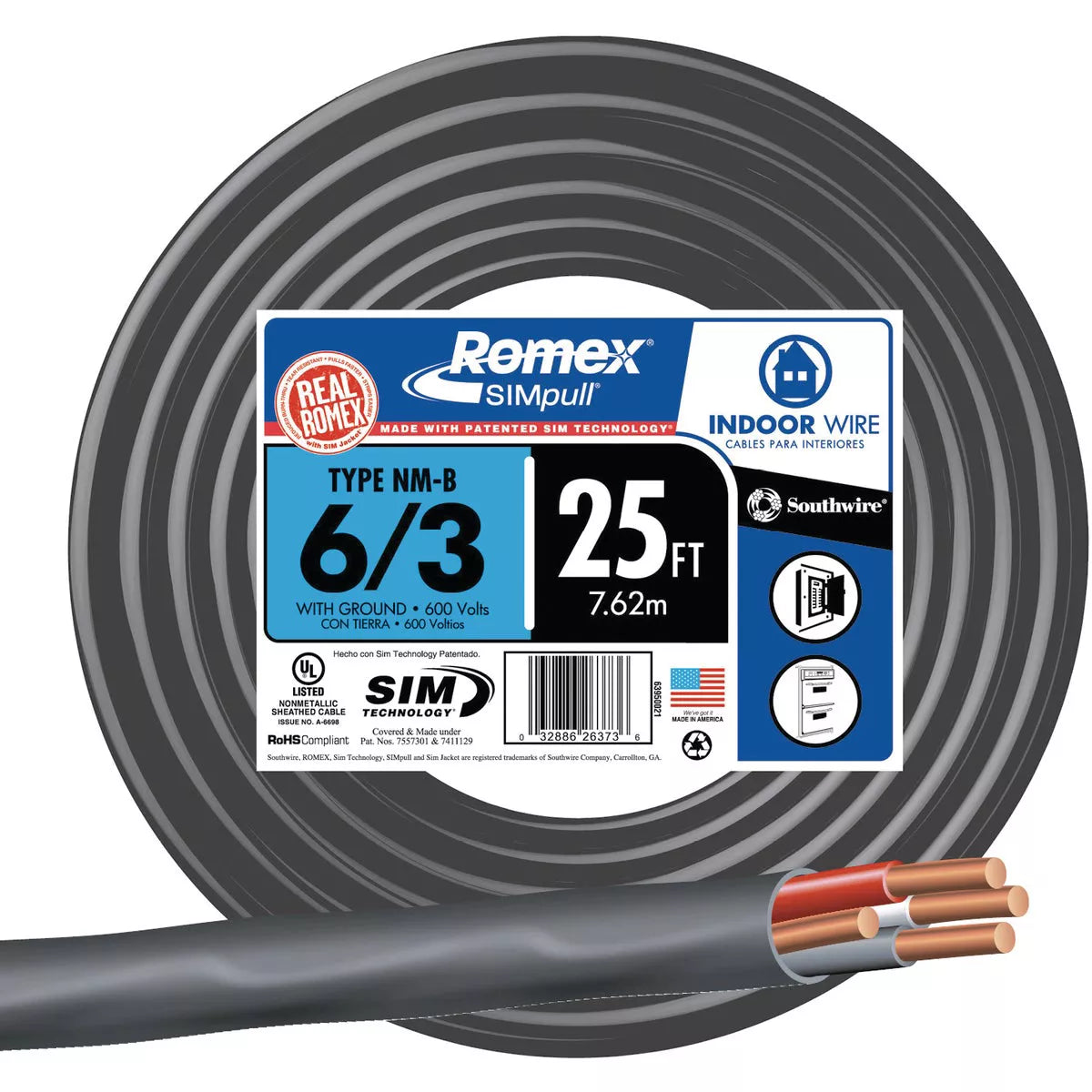

ROMEX ROMEX6/3W/GRDMR Romex NM-B 6/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable

Product Description

The ROMEX NM-B 6/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable (MPN: ROMEX6/3W/GRDMR) is suitable for residential and commercial wiring needs. This Type NM-B cable works well for dry locations and can be installed above ground. It has a service approval for up to 600 volts.

• Constructed with annealed copper conductors
• Features a flame-retardant and crush-resistant PVC jacket
• UL listed and CSA certified for safety

Product Highlights

This cable is designed for both exposed and concealed work environments, ensuring reliable performance in various applications.

Product Information

Standard Information

• Conductor Material: Copper
• Conductor Size: 6 AWG

Technical Specifications

• Number of Conductors: 3
• Cable Type: NM-B
• Voltage Rating: 600 Volt
• Current Rating: 55 Amp
• Insulation Material: PVC, Nylon
• Temperature Rating: 90 degrees C (Dry)
• Stranding: 7 Strand
• Outer Diameter: 0.612 inches
