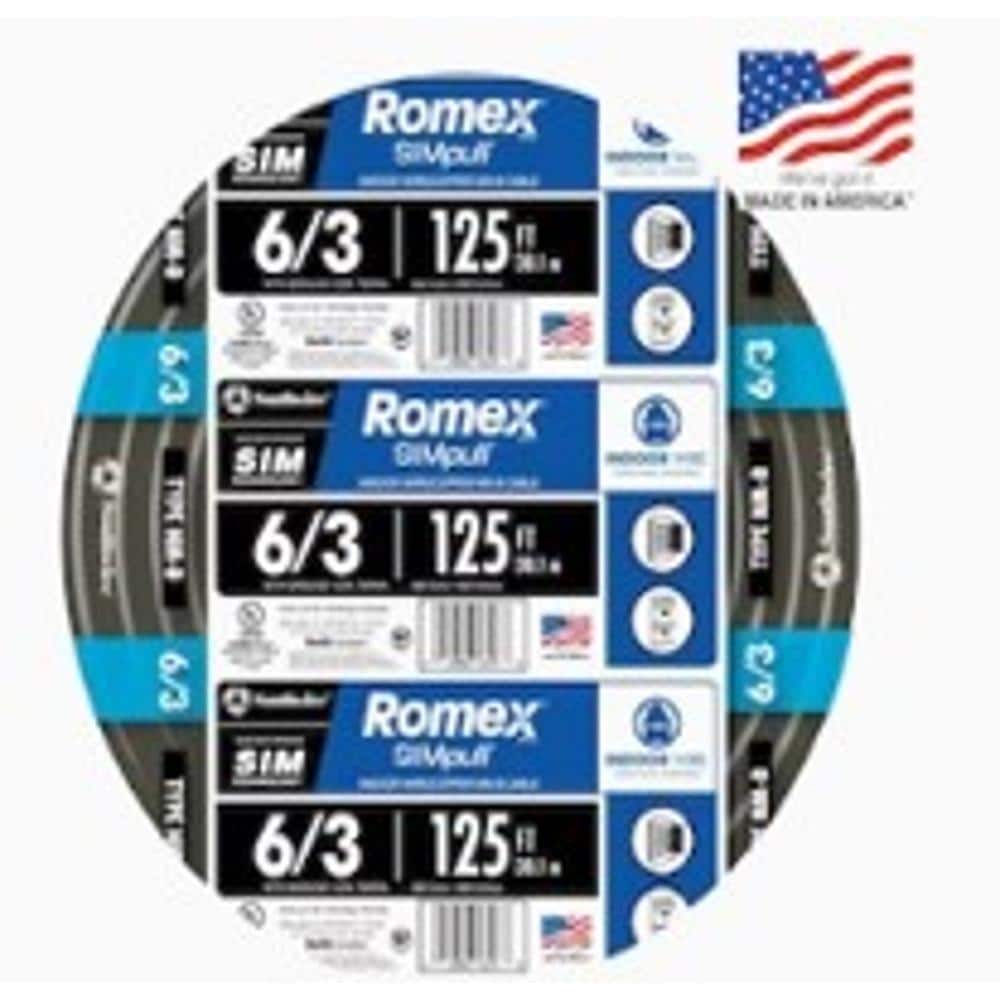

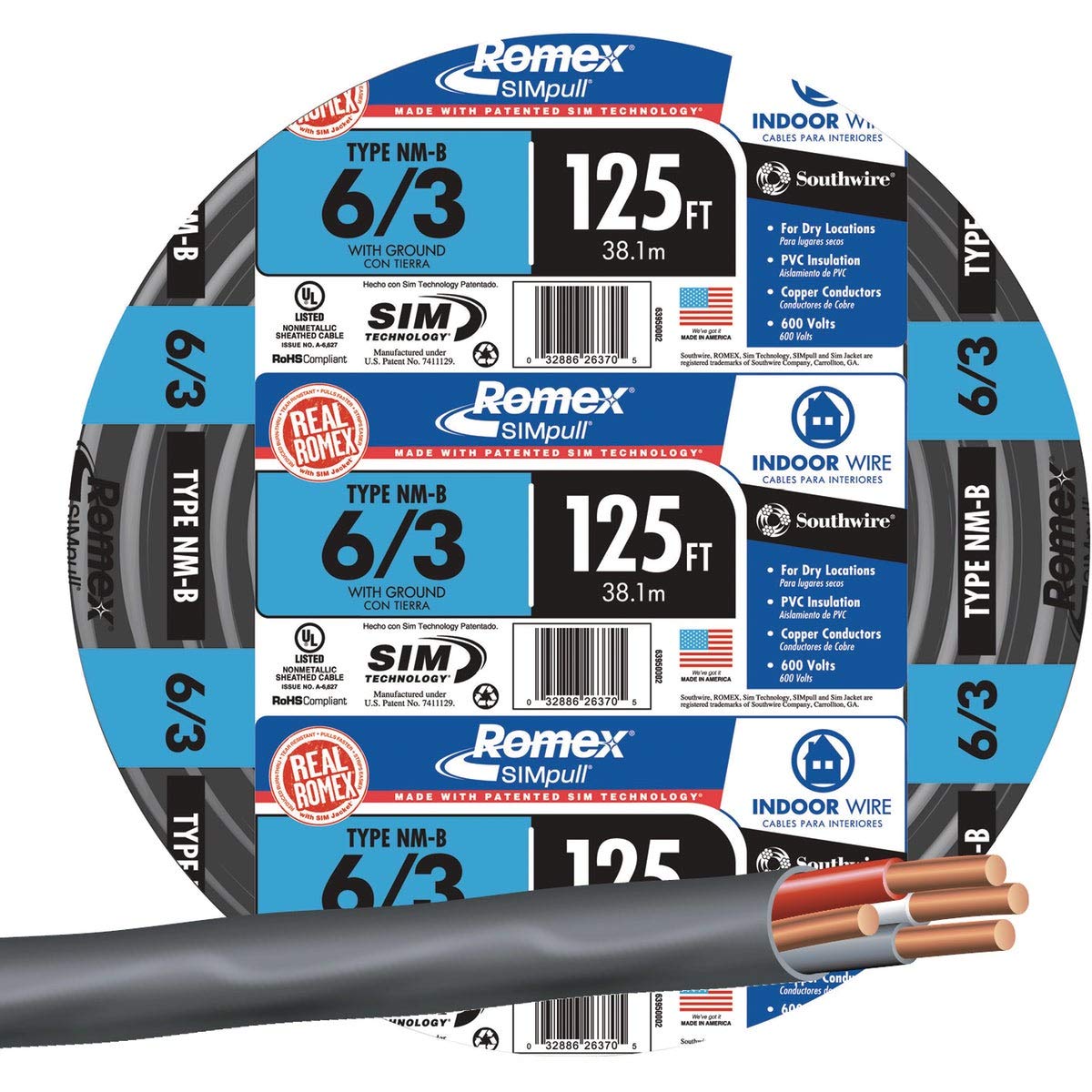

ROMEX ROMEX6/3W/GRD125C NM-B 6/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable (125ft Coil)

Product Description

The ROMEX NM-B 6/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable, identified by MPN ROMEX6/3W/GRD125C, is designed for residential wiring applications. This cable serves as a branch circuit for outlets, lighting, and various loads. It can be installed in both exposed and concealed dry locations. The cable adheres to the guidelines specified in the National Electrical Code.

• Contains three six AWG bare copper conductors and one ten AWG bare copper ground wire.
• Insulated with PVC and housed in a durable PVC jacket.
• Designed for use in dry locations, can be fished through masonry or tile walls where exposure to moisture is minimal.

Product Highlights

This cable is robust and suitable for various wiring needs in residential settings.

Product Information

Standard Information

• Brand: ROMEX
• MPN: ROMEX6/3W/GRD125C

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 6 AWG
• Number of Conductors: 3
• Ground Wire Size: 10 AWG
• Insulation Material: PVC
• Jacket Material: PVC
• Conductor Stranding: 7 Strand
• Voltage Rating: 600 Volts
• Temperature Rating: 90°C (conductor), Ampacity limited to 60°C
• Allowable Ampacity: 55 Amps
• Cable Type: NM-B
