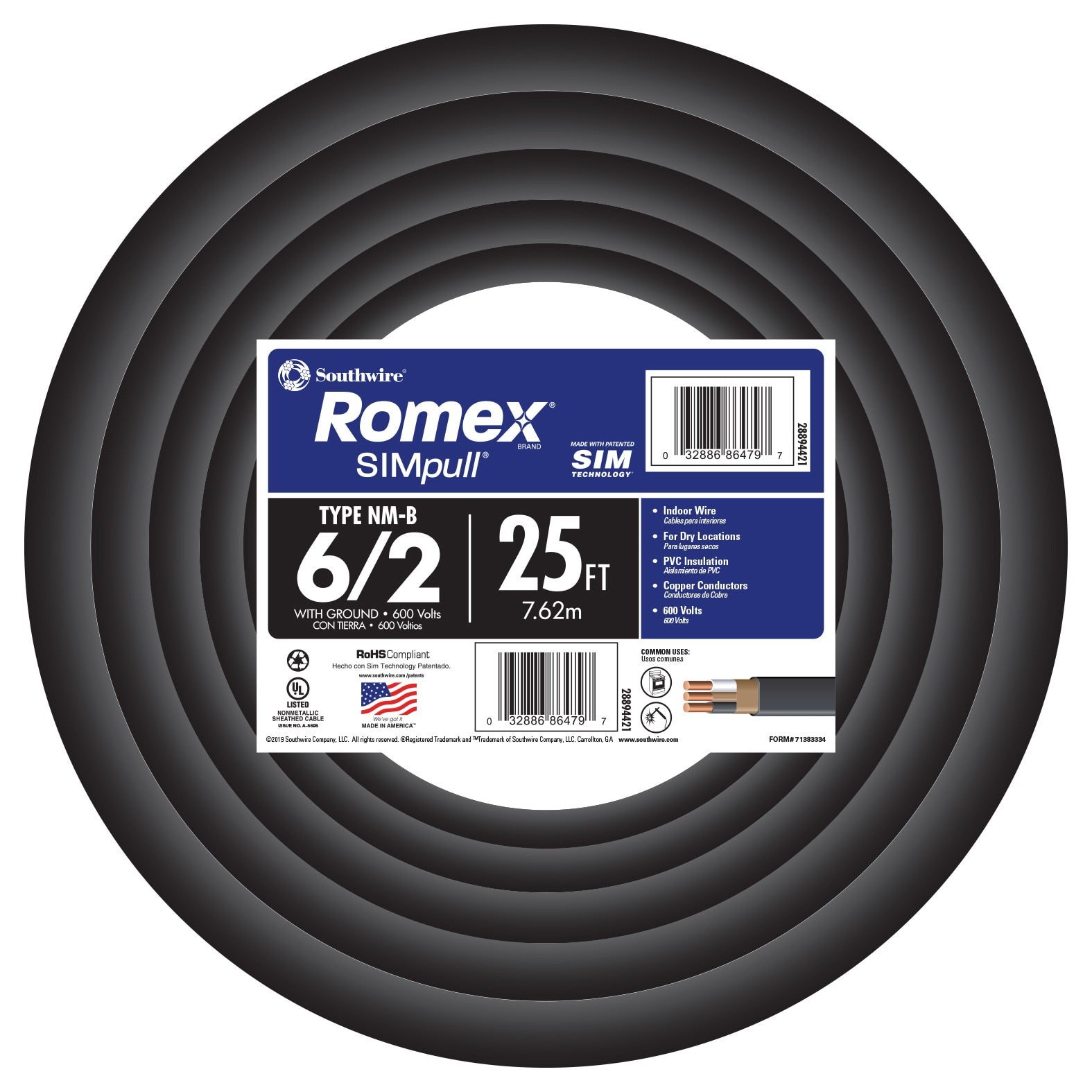

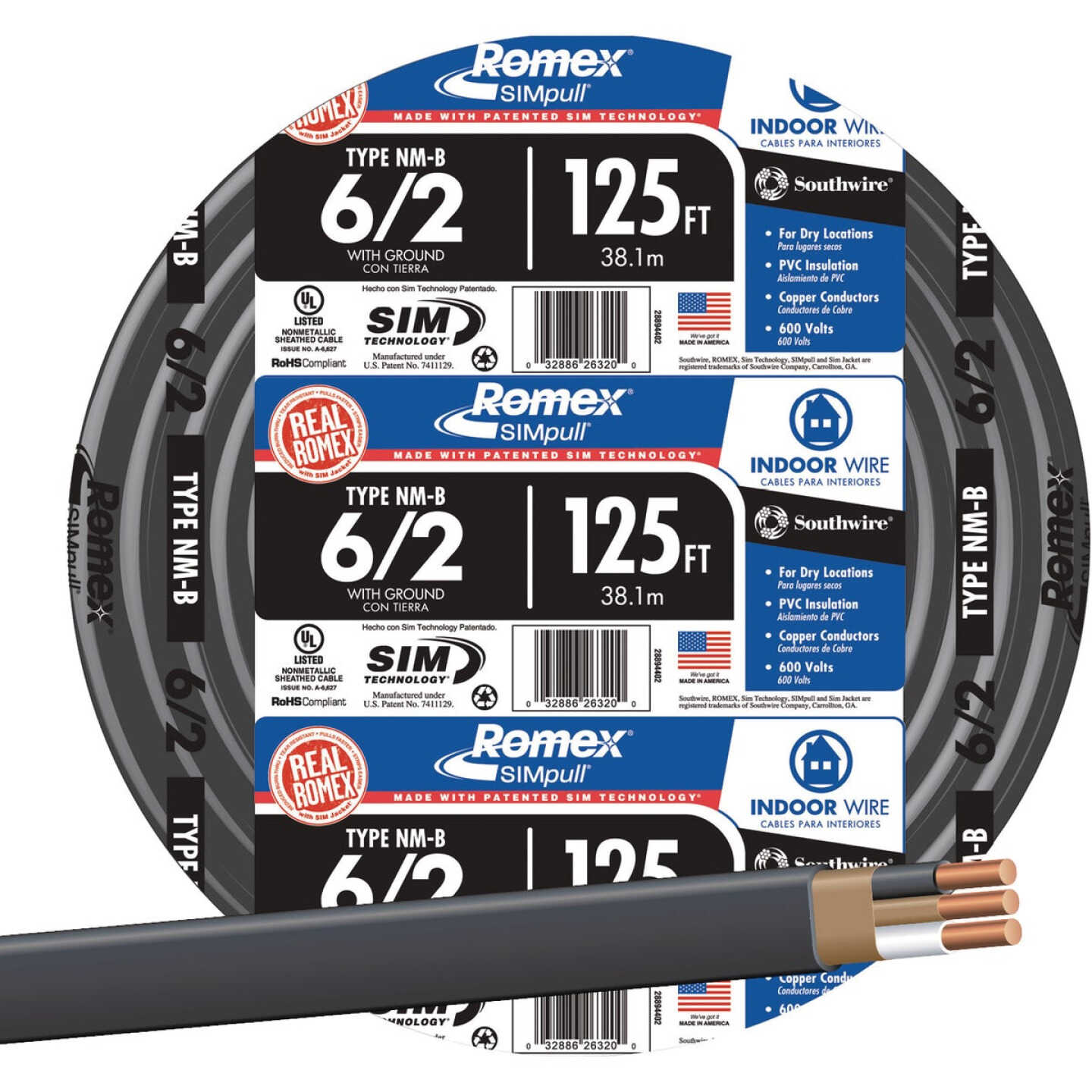

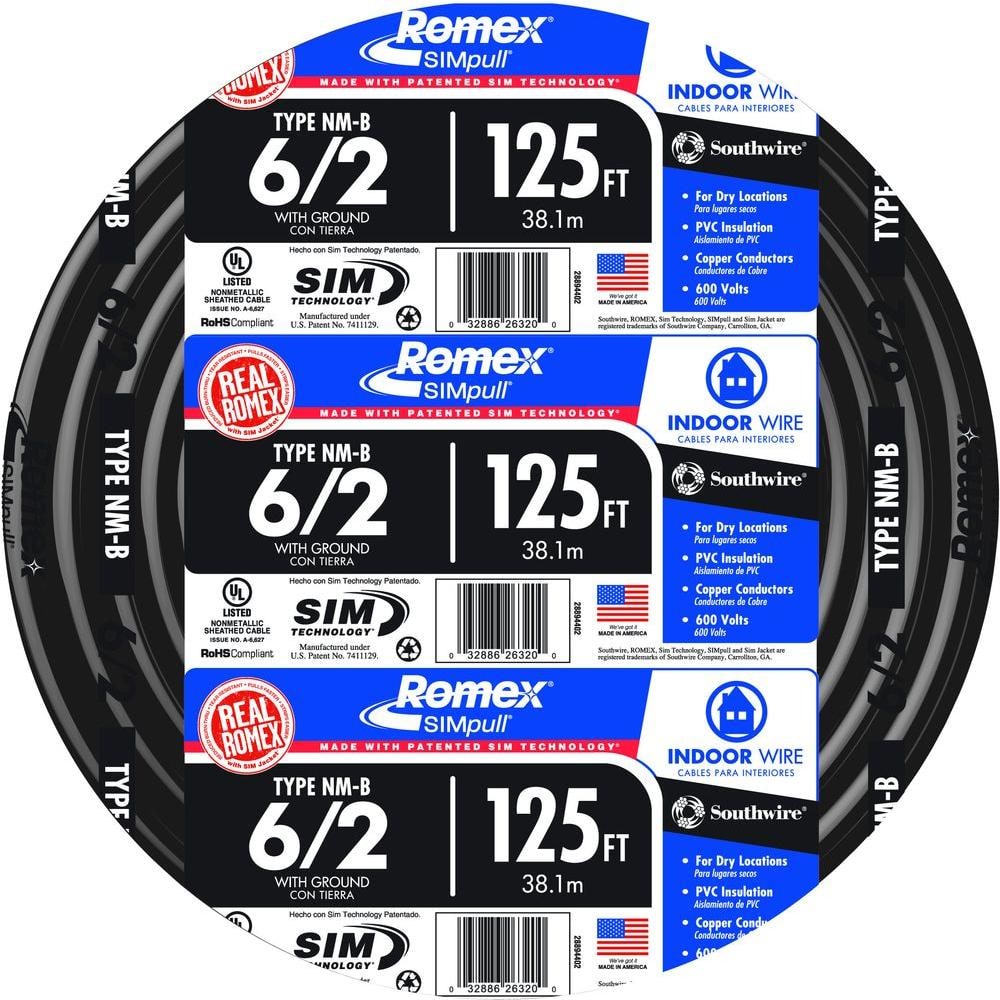

ROMEX ROMEX6/2W/GRDMR NM-B Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable

Product Description

The ROMEX ROMEX6/2W/GRDMR is a non-metallic sheathed cable designed for residential electrical wiring. This NM-B cable serves as a branch circuit for various electrical loads, such as outlets and switches. It is appropriate for both exposed and concealed installations in dry locations. This cable can also be routed through air voids in masonry block or tile walls, as long as these areas remain dry.

Made with copper conductors, the cable features PVC insulation with a nylon sheath. The PVC jacket incorporates SIMpull technology, simplifying the installation process. It is rated for a voltage of six hundred volts and a temperature of ninety degrees Celsius.

• Composed of six AWG copper conductors including a bare ground wire.
• Features PVC insulation with a nylon sheath and a PVC jacket.
• Designed for a voltage rating of six hundred volts with a current capacity of fifty-five amps.

Product Highlights

This cable is suitable for residential wiring applications, providing reliability for various electrical loads.

Product Information

Standard Information

• Brand: ROMEX
• Country of Origin: America

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 6 AWG
• Number of Conductors: 2 with ground
• Insulation Material: PVC with Nylon Sheath
• Jacket Material: PVC
• Voltage Rating: 600 Volt
• Temperature Rating: 90 degrees Celsius
• Current Rating: 55 Amps
• Cable Type: NM-B (Nonmetallic-Sheathed)
• Stranding: 7 Strand
• Approximate Outer Diameter: 0.700 x 0.314 inches
• Approximate Weight: 260 lbs/1000'
