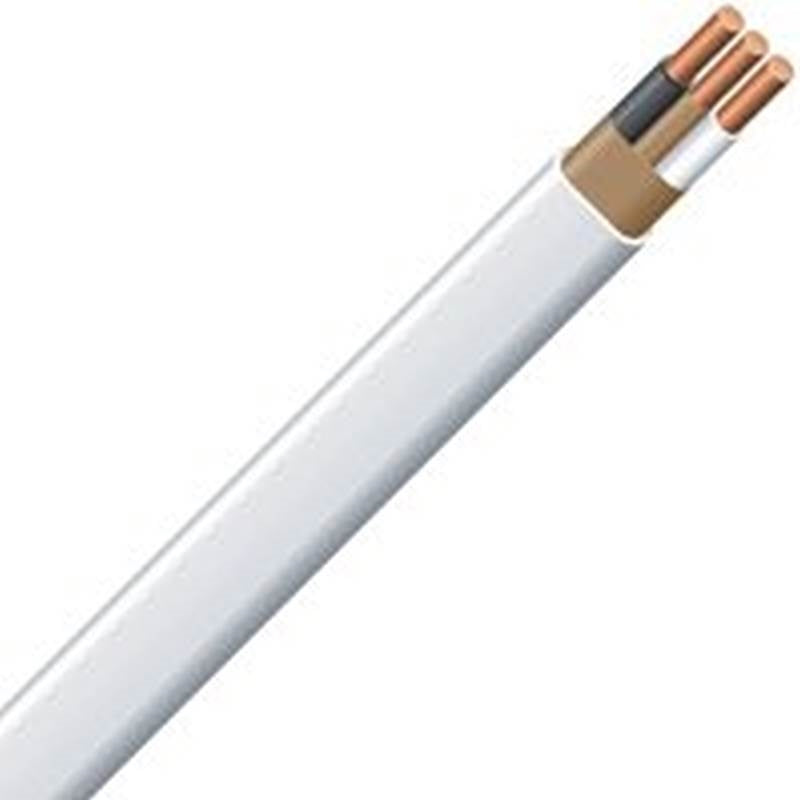

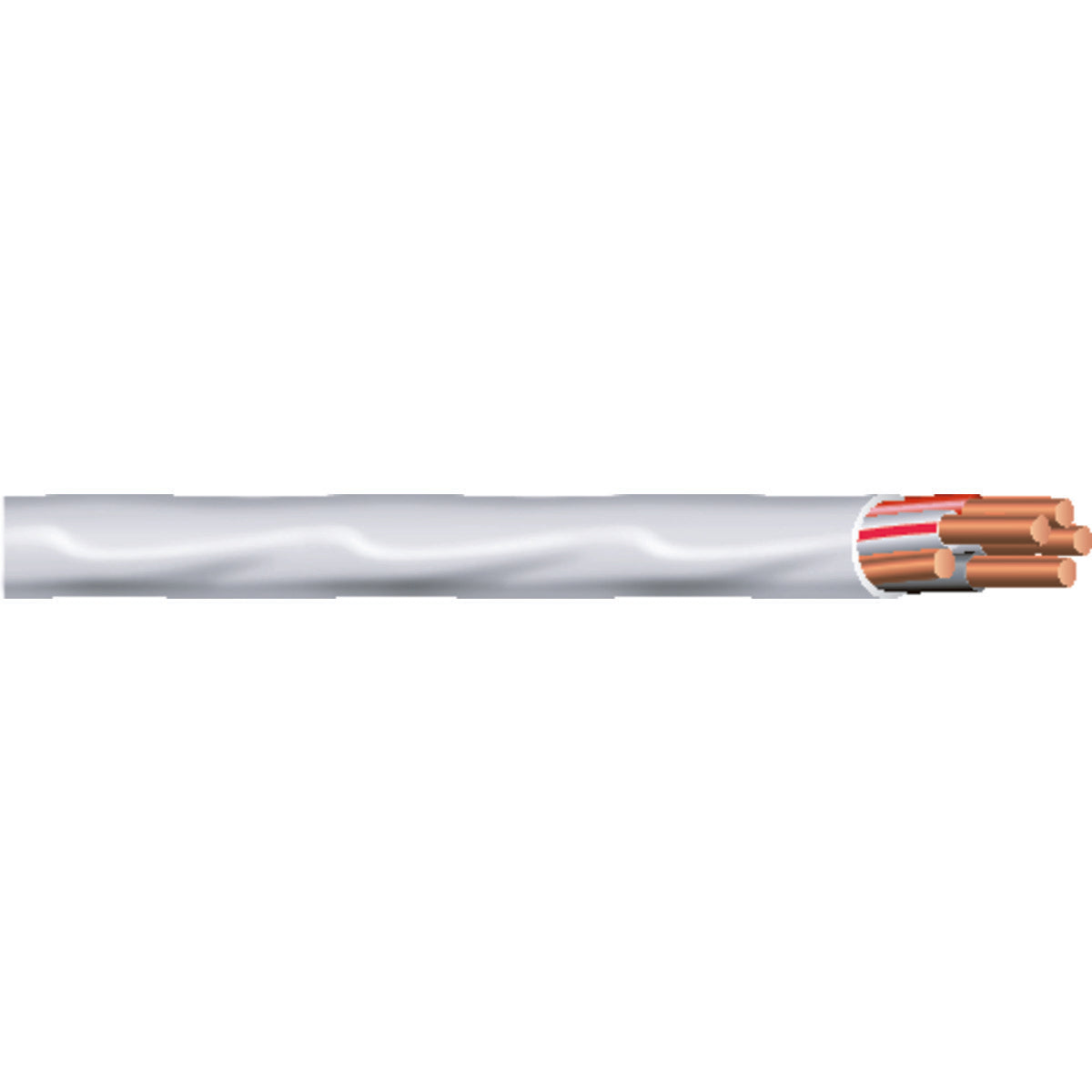

ROMEX ROMEX14/4W/GRD250C NM-B 14/4 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable 250ft Coil

Product Description

The ROMEX ROMEX14/4W/GRD250C is a NM-B (Non-Metallic Sheathed) branch circuit cable that is built for reliable electrical installations. This cable contains four solid copper conductors, each sized at fourteen AWG, along with a grounding wire. Its PVC insulation provides effective protection, and it is encased in a white PVC jacket for durability. This cable can handle a maximum voltage of six hundred volts and operates effectively in temperatures up to ninety degrees Celsius. Supplied in a two hundred fifty-foot coil, it is ideal for various branch circuit applications. The construction with copper ensures excellent conductivity, while the PVC helps in maintaining electrical safety standards.

• Features four solid copper conductors of fourteen AWG with a ground wire
• Insulated with PVC and encased in a white PVC jacket
• Rated for six hundred volts and a maximum temperature of ninety degrees Celsius

Product Highlights

The ROMEX14/4W/GRD250C combines solid copper conductors with durable PVC insulation.

Product Information

Standard Information

• Brand: ROMEX
• MPN: ROMEX14/4W/GRD250C

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 14 AWG
• Current: 12 Amp
• Insulation Material: PVC
• Number of Conductors: 4
• Stranding: Solid
• Temperature Rating: 90 degrees C
• Type: NM-B
• Voltage: 600 Volt
• Jacket Material: White PVC
