Romex romex14/4w/grd1000r Nm-b 14/4 Cable 1000 Ft

Product Description

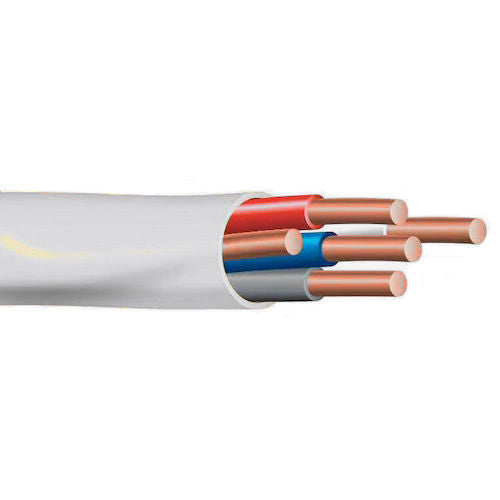

The ROMEX romex14/4w/grd1000r is a 14 AWG, 4-conductor NM-B non-metallic sheathed branch circuit cable supplied on a 1000-foot reel. Each conductor is solid copper, rated for 600 volts and 12 amps, with a 90 degrees C temperature rating. The white PVC outer jacket and PVC conductor insulation meet NM-B specifications for use in dry, protected interior locations. Electricians and residential wiring contractors install this cable for branch circuit wiring in walls, ceilings, and floors of residential and light commercial construction.

This cable is used in residential and light commercial branch circuit applications where a 4-conductor plus ground configuration is required. Common installations include multi-zone switched lighting circuits, ceiling fan wiring with independent light and fan control, and other applications that require an additional conductor beyond standard 3-wire NM-B. The 1000-foot reel format is suited to larger jobs or contractor stocking where frequent pulls reduce per-foot cost and minimize splices.

Key Features

• Solid copper conductors for reliable conductivity and code-compliant residential wiring
• 4-conductor plus ground configuration supports multi-zone and switched circuit applications
• 600-volt, 12-amp rating suitable for standard 15-amp residential branch circuits
• 90 degrees C temperature rating provides thermal headroom in conduit fill or enclosed spaces
• White PVC outer jacket identified as NM-B type for inspection and rough-in compliance
• 1000-foot reel minimizes waste and speeds layout on larger residential or light commercial projects

Compatibility

Designed as an NM-B type branch circuit cable for use in residential and light commercial wiring applications in dry, protected interior locations per NEC Article 334 guidelines.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC Article 334 and applicable local codes. De-energize the circuit and verify absence of voltage before making any connections. NM-B cable is approved for dry interior locations only and must not be installed in conduit, wet locations, or exposed exterior runs. Secure and protect the cable per NEC stapling and support requirements, and avoid bending tighter than the minimum bend radius to prevent conductor or jacket damage.

Technical Specifications

• Cable Type: NM-B
• Conductor Material: Copper
• Conductor Size: 14 AWG
• Number of Conductors: 4 plus ground
• Stranding: Solid
• Voltage Rating: 600 volts
• Current Rating: 12 amps
• Temperature Rating: 90 degrees C
• Insulation Material: PVC
• Jacket Material: White PVC
• Outer Diameter: 0.345 inches
• Length: 1000 feet
• Weight: 90 pounds per 1000 feet

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: romex14/4w/grd1000r
