ROMEX ROMEX14/3W/GRD1000R NM-B 14/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable 1000ft Reel

Product Description

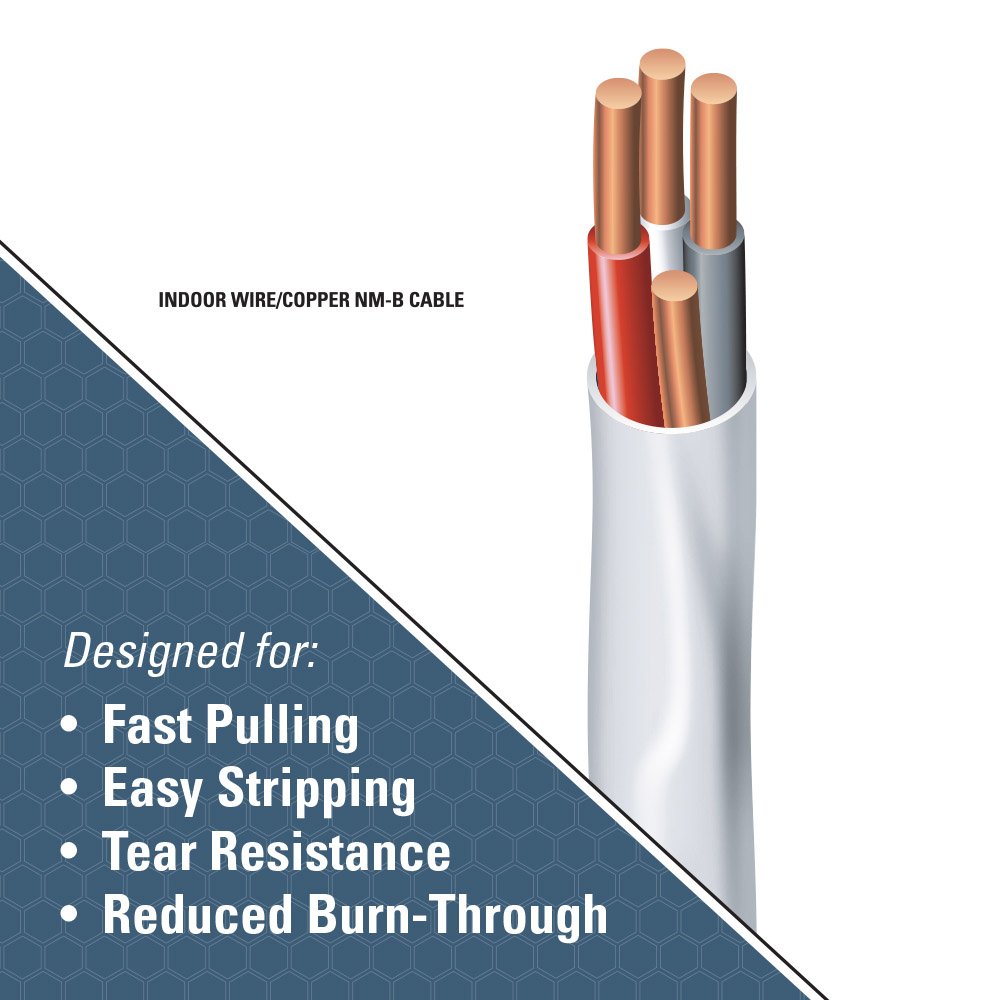

The ROMEX ROMEX14/3W/GRD1000R is a non-metallic sheathed cable made of 14/3 AWG copper with a ground wire. This cable is supplied in a one thousand foot reel and rated for six hundred volts. It is commonly used in residential electrical systems to provide power for outlets, lighting, and other devices. Designed for dry locations, it can be installed either exposed or concealed. The cable jacket is color-coded for easy identification and features a SIMpull design to aid in installation.

• Constructed with solid copper conductors for reliable conductivity.

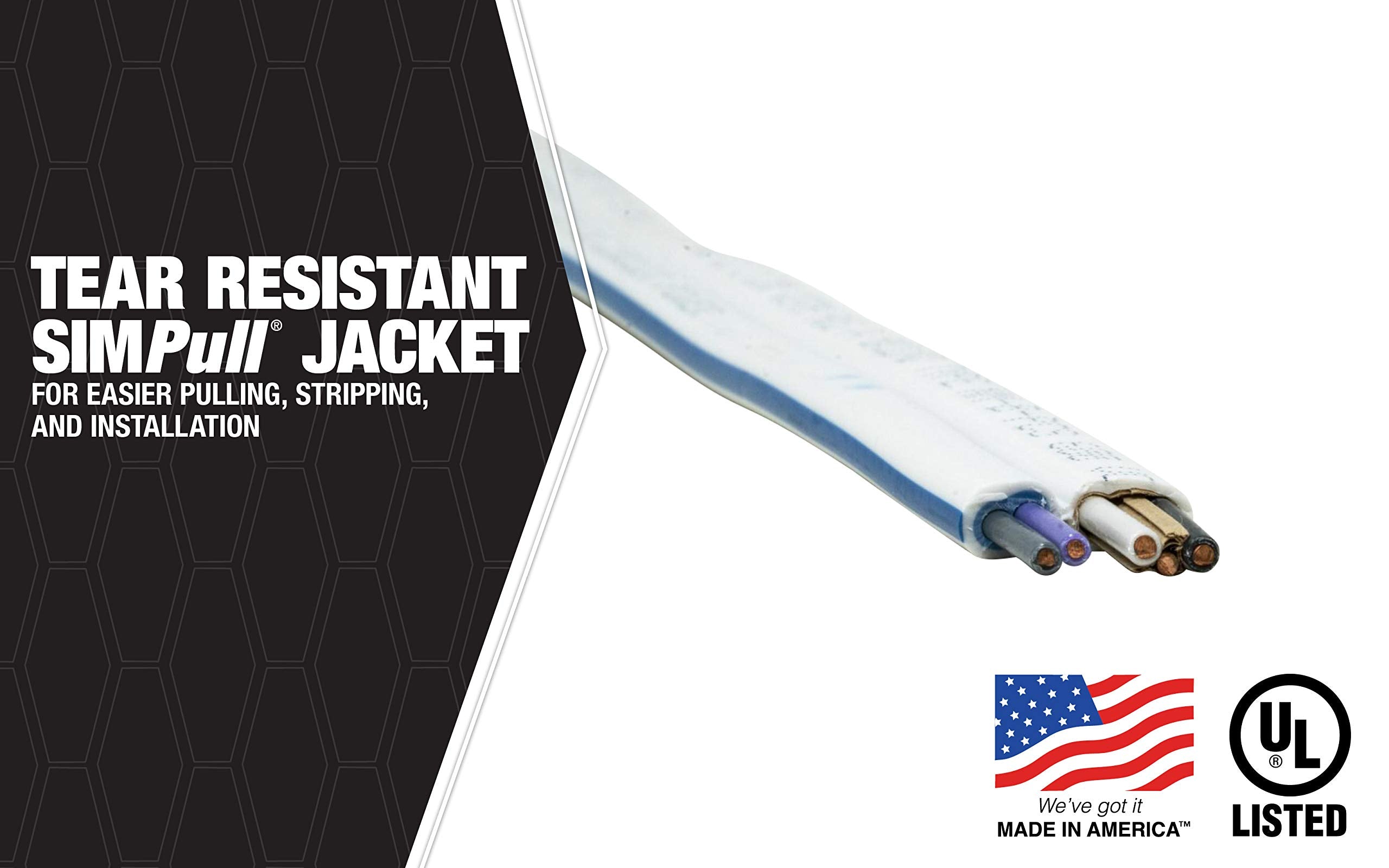

• SIMpull jacket helps reduce pulling force during installation.
• Meets the requirements for six hundred volt applications.

Product Highlights

Reliable for residential branch circuits and easy to install.

Product Information

Standard Information

• Brand: ROMEX
• MPN: ROMEX14/3W/GRD1000R

Technical Specifications

• Conductor Size: 14 AWG
• Number of Conductors: 3
• Voltage Rating: 600 Volt
• Conductor Material: Copper
• Cable Type: NM-B Nonmetallic-Sheathed
• Conductor Stranding: Solid
• Insulation Material: PVC
• Maximum Temperature Rating: 90°C (DRY)
• Length: 1000 ft
• Allowable Ampacity: 15 Amps
