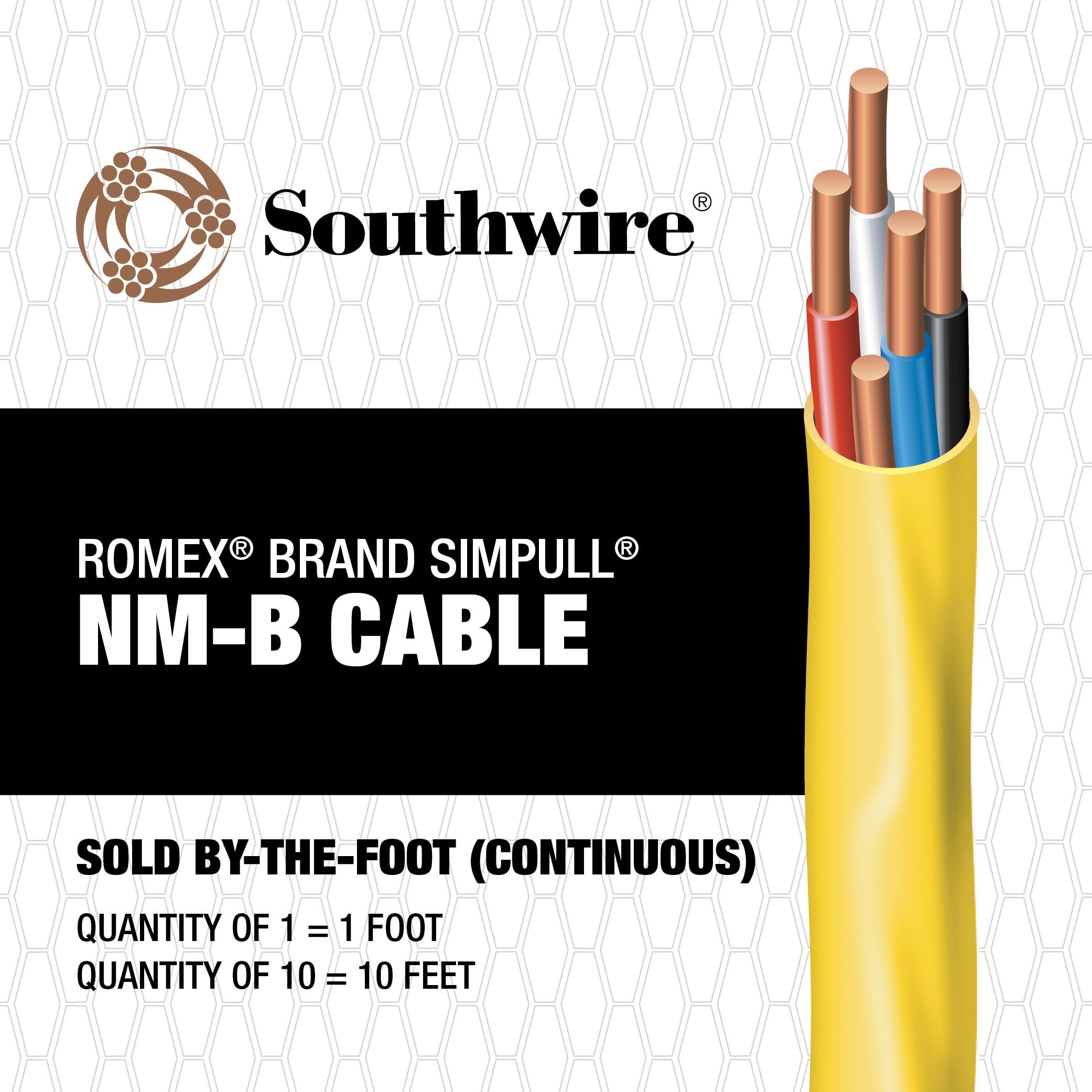

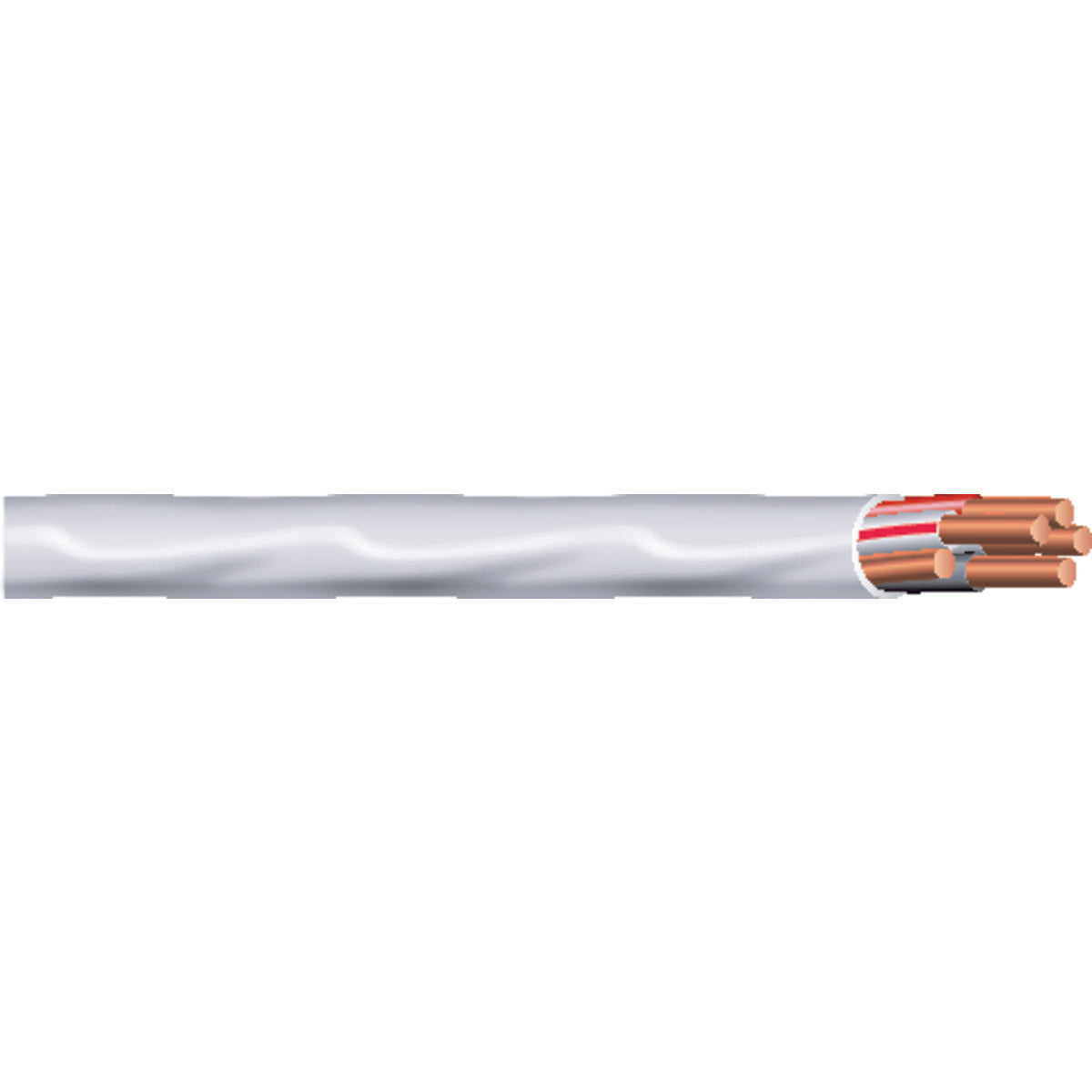

ROMEX ROMEX12/4W/GRD1000R NM-B 12/4 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable (1000ft Reel)

Product Description

The ROMEX NM-B 12/4 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable (MPN: ROMEX12/4W/GRD1000R) is designed for general wiring in residential and light commercial spaces. It can be used for both exposed and hidden applications in dry locations. This cable serves as branch circuits for outlets, switches, and various electrical loads. The solid copper conductors and a polyvinyl chloride jacket often incorporate SIMpull Technology, aiding in easier pulling during installation.

• 12 AWG copper conductors with a bare copper ground wire.
• Insulated with Polyvinyl Chloride with a Nylon Sheath for added durability.
• Includes a SIMpull Jacket for easier installation.

Product Highlights

This cable is rated for up to 600 volts and meets relevant electrical standards for reliable operation.

Product Information

Standard Information

• Conductor Material: Copper
• Conductor Size: 12 AWG

Technical Specifications

• Number of Conductors: 4
• Ground Wire Size: 12 AWG
• Insulation Material: PVC with Nylon Sheath
• Cable Type: NM-B (Non-Metallic Sheathed)
• Voltage Rating: 600 Volt
• Temperature Rating: 90 degrees C (conductor insulation)
• Stranding: Solid
• Jacket Material: Polyvinyl Chloride (PVC)
• Approximate Outer Diameter: 0.395 inches
• Allowable Ampacity: 16 Amp
