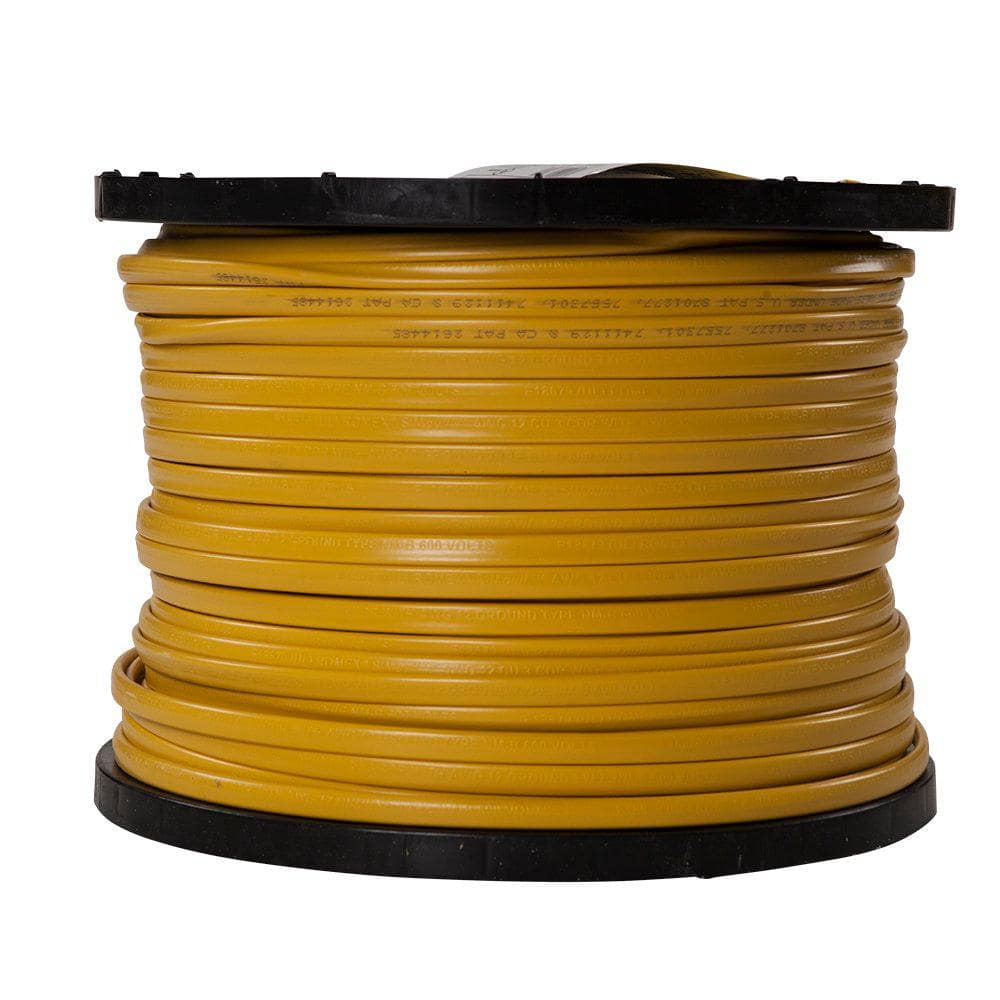

ROMEX ROMEX12/3W/GRD1000R NM-B 12/3 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable (1000ft Reel)

Product Description

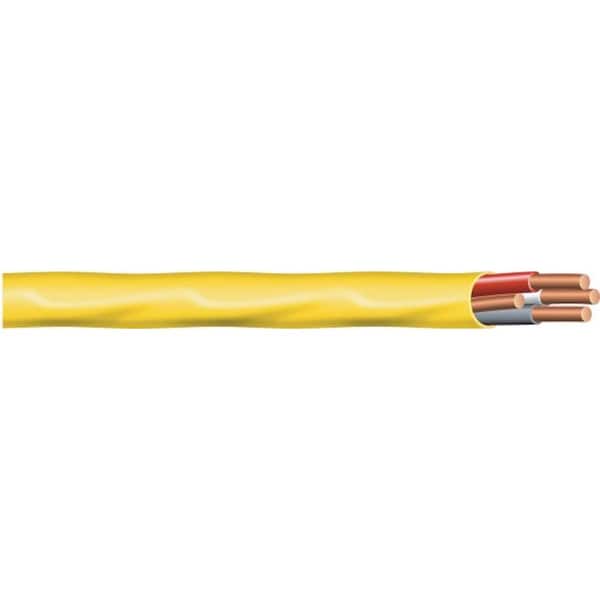

The ROMEX 12/3 W/GRD 1000R is an NM-B Type nonmetallic sheathed cable designed for reliable electrical installations. This cable is mainly used in residential wiring as branch circuits to connect outlets, switches, light fixtures, and other electrical loads. It is appropriate for both exposed and concealed installations within dry environments, and supports a maximum operating temperature of ninety degrees Celsius. The cable features a voltage rating of six hundred volts, making it suitable for safe installation within air voids of masonry block or tile walls when these areas are dry.

• Designed with a SIMpull jacket for easier handling and installation.
• Color-coded jacket helps in identifying size, with twelve AWG identified by yellow.
• Made with solid annealed soft bare copper conductors, insulated in PVC and nylon.

Product Highlights

This cable is ideal for residential installations, providing safe and efficient electrical connections in various environments.

Product Information

Standard Information

• Conductor Material: Copper
• Conductor Size: 12 AWG

Technical Specifications

• Number of Conductors: 3 + 1 Ground
• Cable Type: NM-B
• Voltage Rating: 600 Volts
• Temperature Rating: 90 degrees Celsius (DRY)
• Insulation Material: Polyvinyl Chloride (PVC), Nylon
• Stranding: Solid
• Allowable Ampacity: 20 Amps
• Outer Diameter: 347 mil
