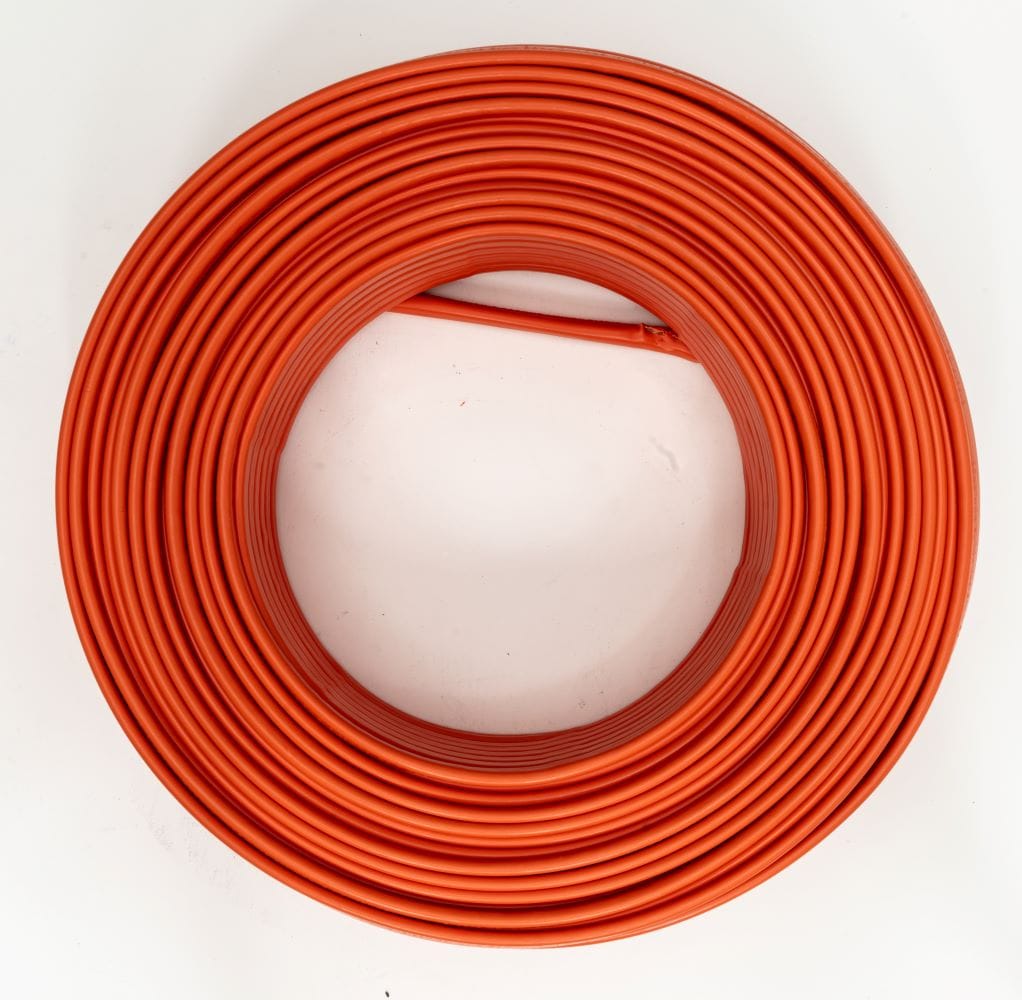

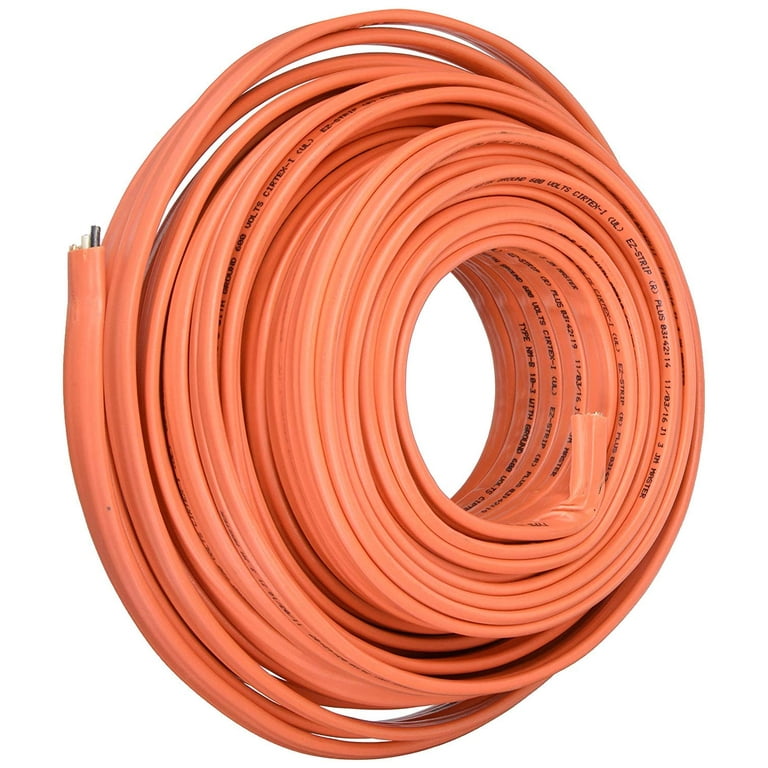

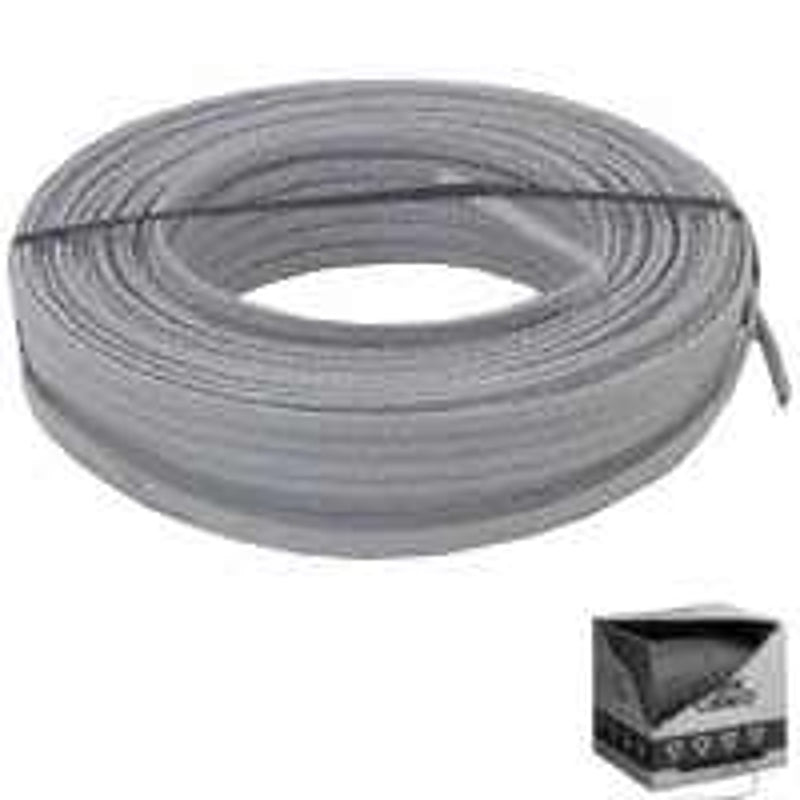

ROMEX ROMEX10/4W/GRD250C NM-B Copper w/Ground Cable 250 Foot

Product Description

The ROMEX 10/4 W/GRD 250C is a Type NM-B non-metallic sheathed branch circuit cable made for residential wiring tasks. This cable has four insulated copper conductors and a bare ground wire, making it suitable for circuits that require multiple hot conductors and a neutral. Applications include multi-wire branch circuits and 240V split-phase loads with neutral. Rated for six hundred volts, this cable is intended for use in normally dry locations, both exposed and concealed, with conductor temperatures not exceeding ninety degrees Celsius. Its design makes pulling during installation easier.

• Primarily used for residential wiring as branch circuits for outlets and switches.
• Suitable for dry indoor applications with a maximum conductor temperature of ninety degrees Celsius.
• Comprises four insulated copper conductors and a bare ground wire.

Product Highlights

Perfect for residential circuit installation, ensuring reliable connections with ease during pulling.

Product Information

Standard Information

• Country of Origin: America
• Weight: 205 Lb/MFt

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 10 AWG
• Number of Conductors: 4 (with ground)
• Voltage Rating: 600 Volt
• Insulation Material: PVC
• Jacket Material: PVC
• Spool Length: 250 Foot
• Current Rating: 30 Amp
• Temperature Rating: 90 degrees C
• Conductor Stranding: Solid
• Insulation Thickness: 24 mils
