ROMEX ROMEX10/2W/GRD1000R NM-B 10/2 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable 1000ft Reel

Product Description

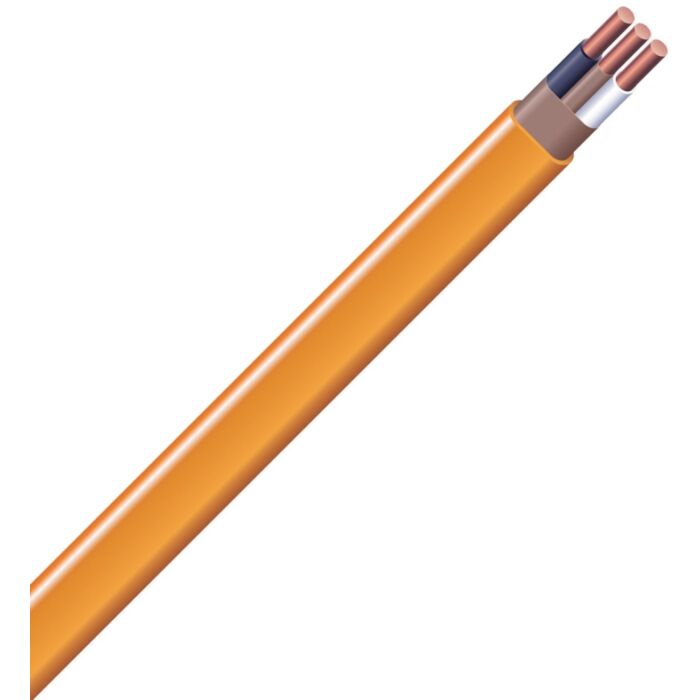

The ROMEX NM-B 10/2 Copper w/Ground Non-Metallic Sheathed Branch Circuit Cable, identified by MPN ROMEX10/2W/GRD1000R, is designed for branch circuit installations. This cable consists of ten American Wire Gauge (AWG) copper conductors and includes a ground wire, all protected by a non-metallic sheath.

This product is suitable for use in dry environments, with a maximum temperature rating of ninety degrees Celsius. It supports a maximum voltage of six hundred volts, making it ideal for various residential and commercial wiring projects.

• Features ten AWG copper conductors with a dedicated ground wire.
• Insulated with PVC material and rated for a dry temperature of ninety degrees Celsius.
• Designed as an NM-B type non-metallic sheathed cable for six hundred volt applications.

Product Highlights

This NM-B cable is suitable for a variety of applications, ensuring reliable and safe electrical installations.

Product Information

Standard Information

• Brand: ROMEX
• MPN: ROMEX10/2W/GRD1000R

Technical Specifications

• Conductor Material: Copper
• Conductor Size: 10 AWG
• Current: 30 Amp
• Insulation Material: PVC
• Number of Conductors: 2
• Stranding: Solid
• Temperature Rating: 90 degrees C (DRY)
• Type: NM-B
• Voltage: 600 Volt
• Spool Length: 1000 ft
