Romex 63947655 Nm-b Wire 12/3 Solid 250 Ft 600V

Product Description

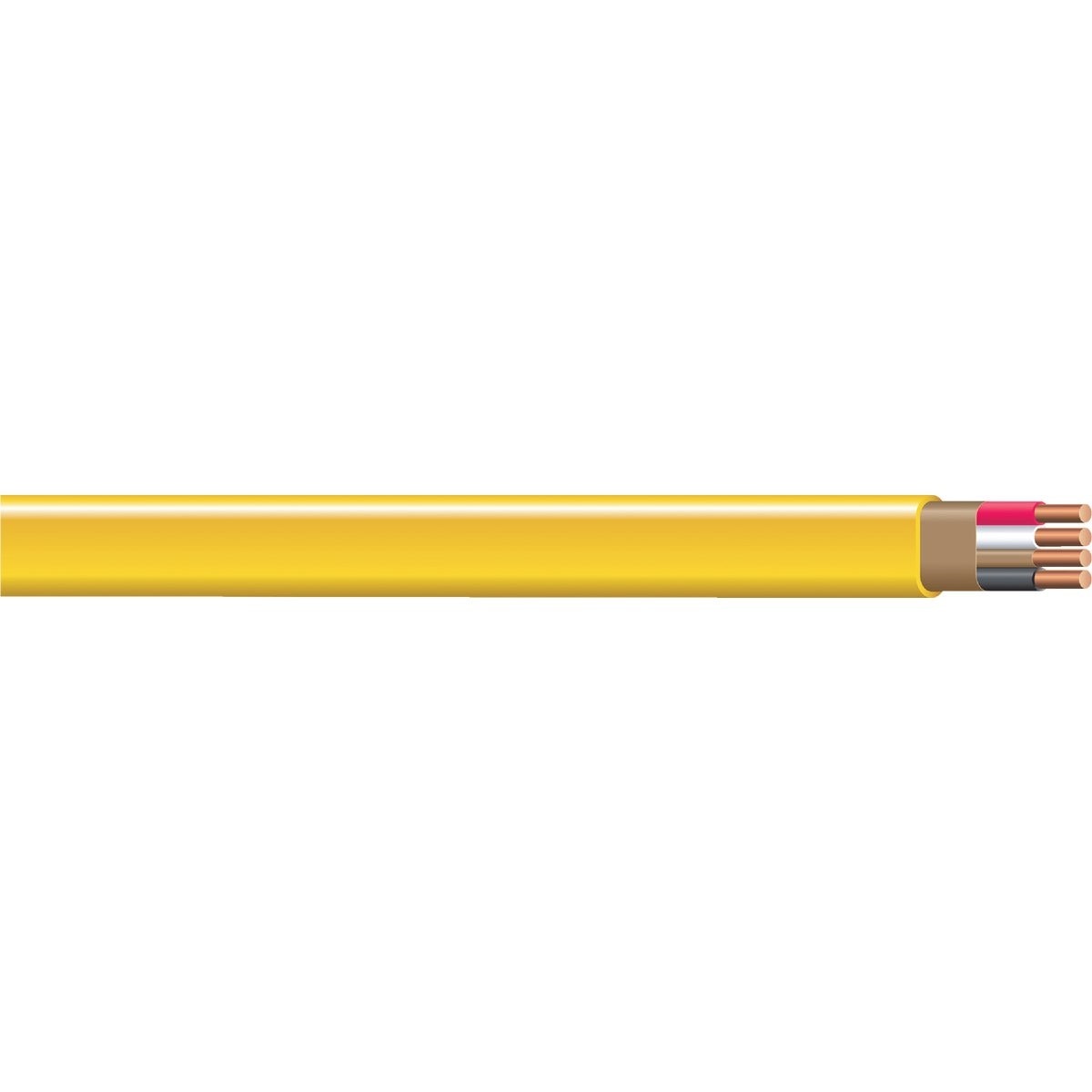

The ROMEX 63947655 is a Type NM-B nonmetallic-sheathed electrical cable rated for residential and light commercial branch circuit wiring. This 12/3 solid conductor configuration includes three 12 AWG solid conductors plus a ground wire, all enclosed in a PVC outer jacket. The cable is rated to 600 volts and carries a UL listing for compliance with standard electrical installation requirements. At 27.3 pounds per 250-foot roll, it is a standard stocking item for electricians roughing in branch circuits on new construction or remodel projects.

This cable is intended for above-ground, dry-location installations only. Typical applications include residential branch circuits for kitchen circuits, general-purpose outlets, and lighting in single-family and multi-family construction. The 12/3 gauge is commonly selected for 20-amp circuits where a dedicated neutral is required, such as multi-wire branch circuits or switched outlet configurations. Commercial light construction applications are also appropriate where NM-B cable is permitted by the authority having jurisdiction.

Key Features

• Type NM-B construction with PVC outer jacket and PVC-insulated, nylon-jacketed conductors
• 12/3 solid conductor configuration with ground wire included
• 600-volt rating suitable for standard residential branch circuit service
• Flame-retardant and crush-resistant jacket construction
• UL listed per Underwriters Laboratories standards
• 250-foot roll format for efficient rough-in work

Compatibility

Designed for use in residential and commercial branch circuit wiring applications where Type NM-B cable is permitted by local code and the installation is above ground in a dry location.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. This cable is approved for dry, above-ground locations only and must not be installed in wet, damp, or underground locations. Always de-energize the circuit and verify with a non-contact voltage tester before making any connections. Do not exceed the 600-volt service rating or install in conduit runs where NM-B cable is not code-permitted.

Technical Specifications

• Cable Type: NM-B (Nonmetallic-Sheathed)
• Conductor Size: 12 AWG
• Configuration: 12/3 with Ground
• Conductor Type: Solid
• Voltage Rating: 600 volts
• Jacket Material: PVC (Polyvinyl Chloride)
• Conductor Insulation: PVC with Nylon Jacket
• Length: 250 feet per roll
• Weight: 27.3 pounds
• Listing: UL Listed
• Location Rating: Dry locations, above ground only
• Jacket Color: Yellow

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: 63947655
