Romex 28828272 Nm-b Wire 12/2 Solid 400 Ft 600V

Product Description

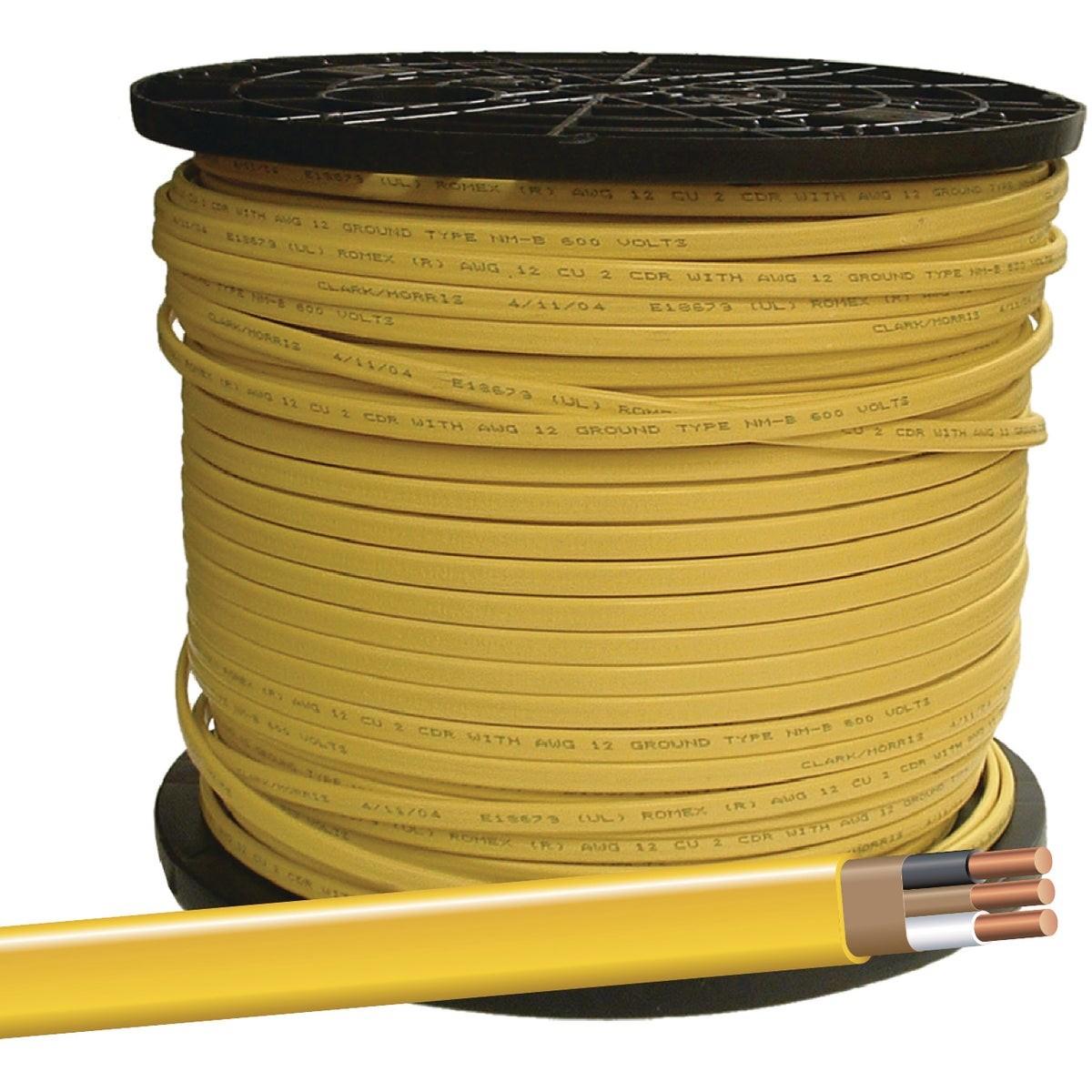

The ROMEX 28828272 is a Type NM-B nonmetallic-sheathed cable designed for residential and commercial branch circuit wiring. This 12/2 solid conductor configuration ships in a 400-foot roll and is rated for service up to 600 volts. The cable features a PVC outer jacket with PVC-insulated, nylon-jacketed conductors and an integrated ground wire. The construction is flame-retardant and crush-resistant, meeting the demands of rough-in wiring in new construction and renovation work. Licensed electricians rely on this cable for lighting circuits, outlet circuits, and general-purpose branch circuit runs in dry, above-ground installations.

This cable is suited for above-ground, dry-location installations in residential and light commercial settings. Typical applications include wiring outlet and lighting branch circuits in wood-frame construction. The 12 AWG solid conductor is well matched to 20-amp branch circuits commonly found in kitchens, bathrooms, and utility spaces. The yellow jacket color coding follows NEC convention for 12 AWG NM-B cable, making identification straightforward during inspection and service work.

Key Features

• Type NM-B construction rated for above-ground, dry-location use only
• 600-volt service rating for standard residential and commercial branch circuits
• PVC outer jacket with PVC-insulated, nylon-jacketed individual conductors
• Includes ground conductor (WG) for code-compliant installations
• Flame-retardant and crush-resistant jacket construction
• UL listed to applicable standards for Type NM-B cable

Compatibility

Designed as a standard Type NM-B replacement and new-installation cable for dry, above-ground residential and commercial branch circuit wiring applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit panel before pulling or terminating this cable. This cable is approved for dry, above-ground locations only and must not be installed in wet, damp, or direct-burial conditions. Support and stapling intervals must meet NEC Article 334 requirements for NM-B cable.

Technical Specifications

• Wire Type: NM-B (Nonmetallic-Sheathed Cable)
• Conductor Size: 12/2
• Conductor Type: Solid
• Voltage Rating: 600 volts
• Jacket Color: Yellow
• Jacket Material: PVC (polyvinyl chloride)
• Insulation Material: PVC with nylon jacket
• Ground: Included (WG)
• Length: 400 feet
• Weight: 34 pounds
• Unit of Measure: Roll
• Listing: UL Listed

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: 28828272
