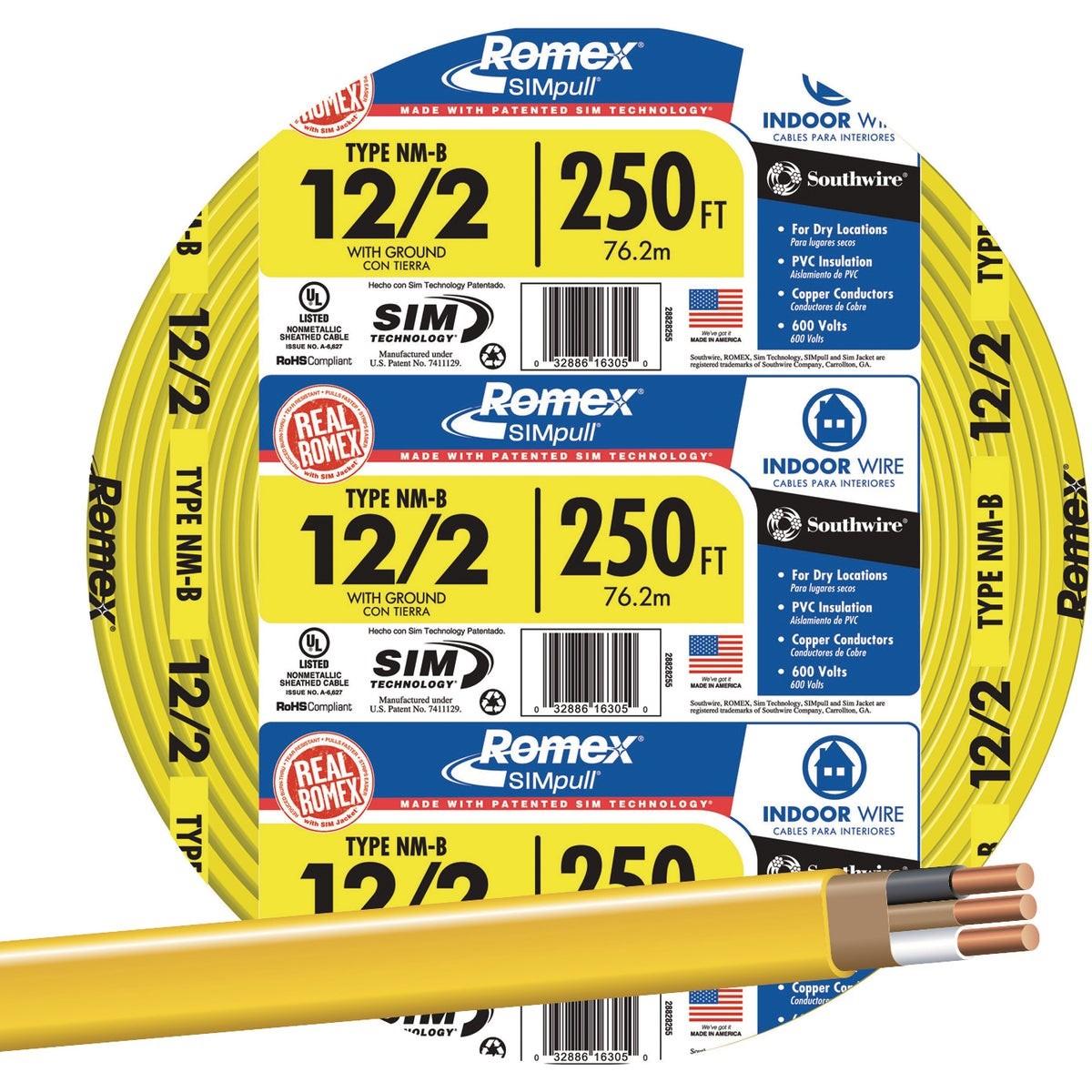

Romex 28828255 Nm-b Wire 12/2 Solid 600V 250 Ft Yellow

Product Description

The ROMEX 28828255 is a Type NM-B nonmetallic-sheathed cable engineered for branch-circuit wiring in residential and commercial construction. This 12/2 solid conductor cable is rated to 600 volts and comes in a 250-foot roll. The outer jacket is PVC (polyvinyl chloride), and each conductor carries PVC insulation with a nylon jacket for added durability. A bare ground conductor is included. The cable is flame-retardant and crush-resistant, meeting the demands of rough-in wiring environments. Licensed electricians install this cable during new construction and renovation projects where above-ground, dry-location routing is required.

This cable is suited for above-ground branch-circuit installations in dry locations only. Common applications include residential lighting circuits, general-purpose 20-amp outlet circuits, and light commercial interior wiring. The 12 AWG solid conductor sizing supports 20-amp circuit loads under standard NEC guidelines. The yellow outer jacket follows the industry color convention for 12 AWG NM-B cable, making circuit identification straightforward during inspection and future service work.

Key Features

• Type NM-B construction rated to 600 volts for branch-circuit use
• 12/2 solid conductor configuration with included ground wire
• PVC outer jacket with PVC-insulated, nylon-jacketed conductors
• Flame-retardant and crush-resistant jacket for jobsite durability
• Yellow jacket color follows standard 12 AWG NM-B identification convention
• UL listed per Underwriters Laboratories requirements

Compatibility

Designed for above-ground, dry-location branch-circuit wiring in residential and light commercial applications where Type NM-B cable is code-permitted.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit at the panel before making any connections. This cable is approved for dry locations and above-ground runs only — do not install in wet, damp, or underground locations. Secure and protect the cable per NEC stapling and support requirements to prevent physical damage.

Technical Specifications

• Cable Type: NM-B (Type NM-B Nonmetallic-Sheathed Cable)
• Conductor Size: 12/2 Solid
• Voltage Rating: 600 volts
• Length: 250 feet
• Jacket Color: Yellow
• Jacket Material: PVC (polyvinyl chloride)
• Conductor Insulation: PVC with nylon jacket
• Ground: Included (WG)
• Weight: 15.35 pounds
• Unit of Measure: Roll
• Certifications: UL Listed

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: 28828255
