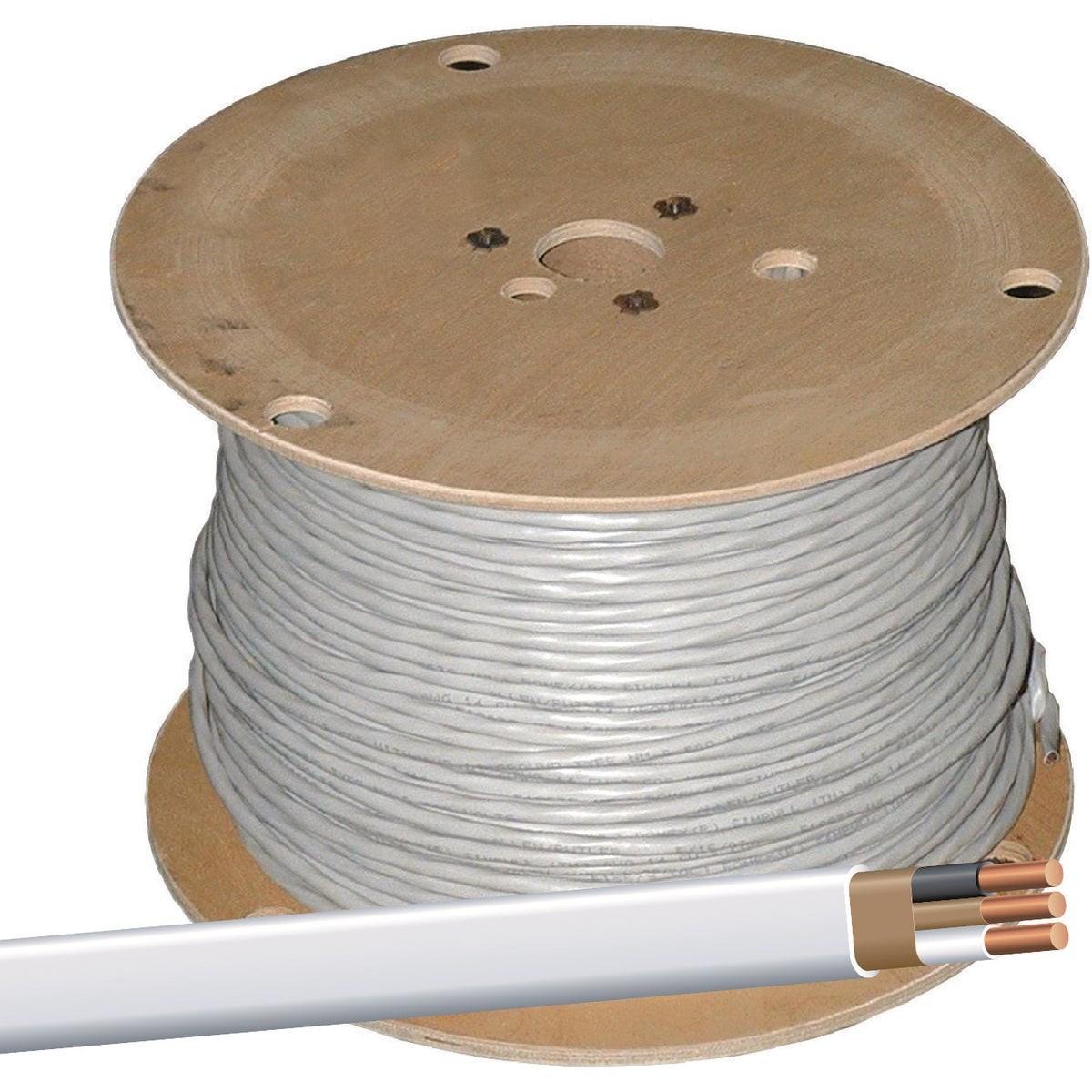

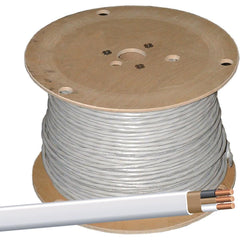

Romex 28827472 14/2 Solid Nm-b Wire 600V White 450 Ft

Product Description

The ROMEX 28827472 is a 14/2 solid conductor Type NM-B electrical wire rated for use in residential and commercial branch circuit wiring. The cable features PVC outer jacket construction with PVC-insulated, nylon-jacketed individual conductors, providing flame retardant and crush-resistant performance. Rated to 600 volts, this wire ships as a 450-foot roll weighing 28.25 pounds. It is handled and installed by licensed electricians performing rough-in wiring on branch circuits in new construction and renovation projects.

This NM-B cable is suited for above-ground installation in dry locations only. Typical applications include residential branch circuits for lighting, outlets, and small appliance loads, as well as light commercial wiring where NM-B cable is permitted by local code. The 14/2 solid conductor configuration is commonly used for 15-amp branch circuits. The white jacket color is standard for 14-gauge NM-B cable, making it easy to identify gauge in the field.

Key Features

• Type NM-B construction rated to 600 volts for residential and commercial branch circuits
• 14/2 solid conductor configuration standard for 15-amp branch circuits
• PVC outer jacket with PVC-insulated, nylon-jacketed conductors for durability
• Flame retardant and crush-resistant jacket construction
• Approved for above-ground, dry location installation only
• UL Listed to Underwriters Laboratories standards

Compatibility

Designed for use in residential and commercial branch circuit wiring applications where Type NM-B cable is permitted by the National Electrical Code and local authority having jurisdiction.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit panel before pulling or terminating this cable. This cable is approved for dry, above-ground locations only and must not be installed in wet, damp, or direct-burial conditions. Protect the cable from physical damage where it passes through framing or is exposed to potential impact.

Technical Specifications

• Wire Type: NM-B (Type NM-B)
• Conductor Size: 14/2 Solid
• Voltage Rating: 600 volts
• Jacket Material: PVC (polyvinyl chloride)
• Conductor Insulation: PVC with nylon jacket
• Jacket Color: White
• Length: 450 feet
• Weight: 28.25 pounds
• Unit of Measure: Roll
• Listing: UL Listed

Standard Information

• Brand: ROMEX
• Manufacturer Part Number: 28827472
