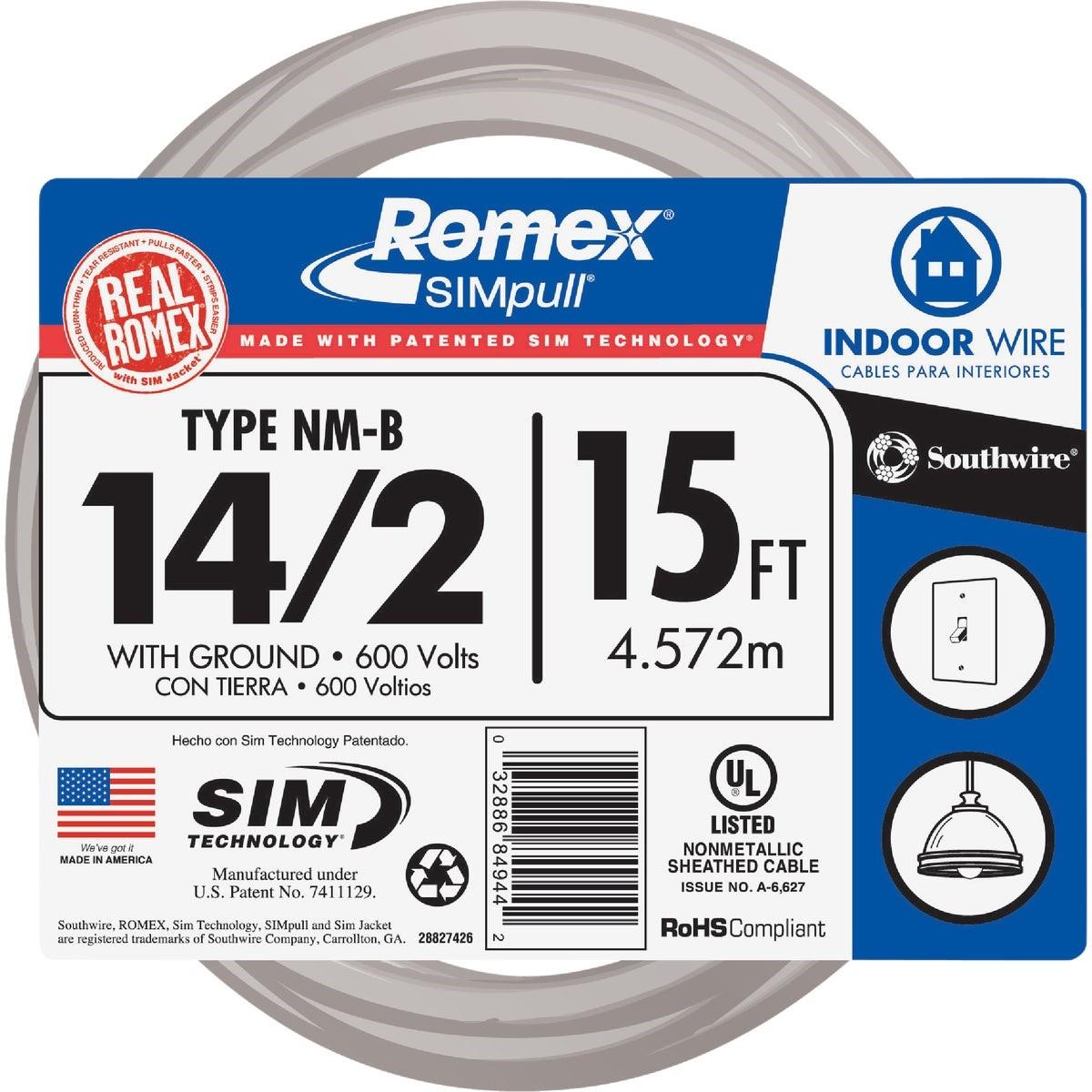

ROMEX Romex 28827426 14/2 Solid NMW/G Electrical Wire 15 A 600 V (15 ft)
ROMEX Romex 28827426 14/2 Solid NMW/G Electrical Wire 15 A 600 V (15 ft)

Romex 28827426 14/2 Solid NMW/G Electrical Wire 15 A 600 V (15 ft)

Brand: ROMEX
SKU: 28827426
Ships in 1 - 2 Weeks
$42.05
$42.05
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

Romex 28827426 is a 15 ft, 14/2 solid NMW/G electrical cable for residential branch-circuit wiring. It contains two 14 AWG solid copper conductors plus an integral grounding conductor, with PVC insulation and a SIMpull PVC jacket over a nylon sheath. The cable is UL listed, approved to 600 V and rated for use up to 90 °C (ampacity limited to 60 °C), for exposed and concealed dry-location installations such as outlets, switches, and lighting.

  • 14 AWG solid copper conductors with integral ground (14/2 with ground)
  • NMW/G non-metallic sheathed cable with SIMpull PVC jacket and nylon sheath
  • Rated 600 V; operating temperature up to 90 °C (ampacity limited to 60 °C); UL listed for dry locations

Product Highlights

15 ft 14/2 solid copper NMW/G cable; SIMpull PVC/nylon jacket; 600 V, 90 °C rating; UL listed for residential branch-circuit wiring

Product Information

Standard Information

  • Brand: ROMEX
  • Manufacturer Part Number: 28827426
  • Country of Origin: US
Technical Specifications
Brand
Romex
MPN
28827426
Manufacturer
Southwire
UPC
00032886849442
Length
15 ft (180 in)
Gauge
14 AWG
Number of Conductors
2 (plus ground)
Conductor Material
Copper
Stranding
Solid
Cable Type
NMW/G (non-metallic sheathed cable with ground)
Insulation Material
PVC
Sheath / Jacket Material
PVC jacket with nylon sheath
Jacket Technology
SIMpull
Voltage Rating
600 V
Current Rating
15 A
Operating Temperature
Up to 90 °C (ampacity limited to 60 °C)
Intended Use
Residential branch-circuit wiring; exposed and concealed work in normally dry locations
Certifications
UL Listed
Weight
1.009 lb
Approximate Outer Diameter (width x thickness)
0.372 x 0.176 in
Insulation Thickness
20 mil (0.020 in / 0.51 mm)
Jacket Thickness
25 mil (0.025 in / 0.64 mm)
Bend Radius
0.8 in
Standards
ASTM B3, ASTM B8, UL 719, RoHS-2, Federal Spec A-A-59544, NOM-063-SCFI
