Product Description

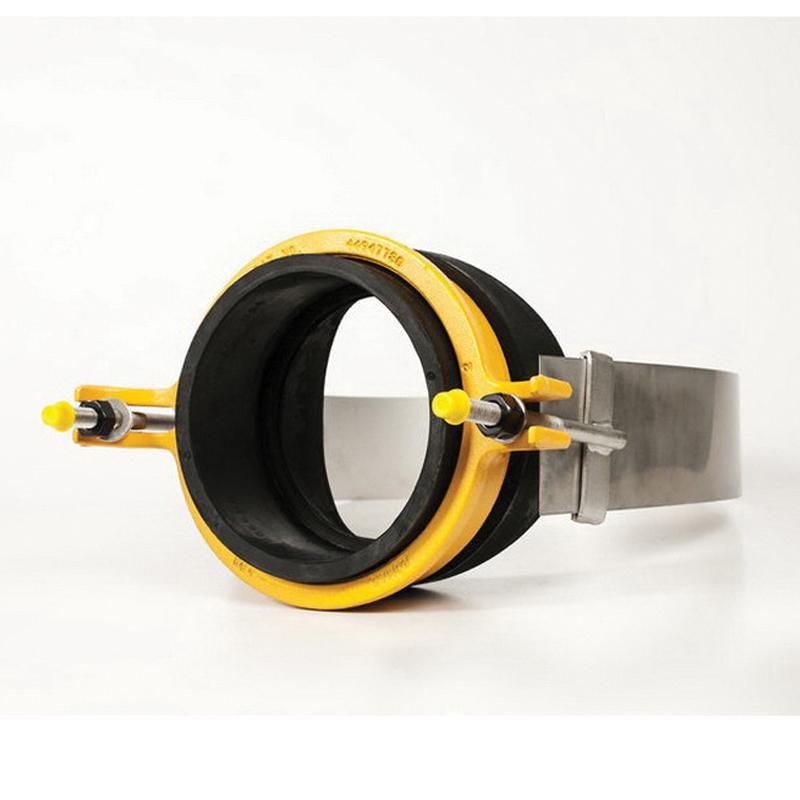

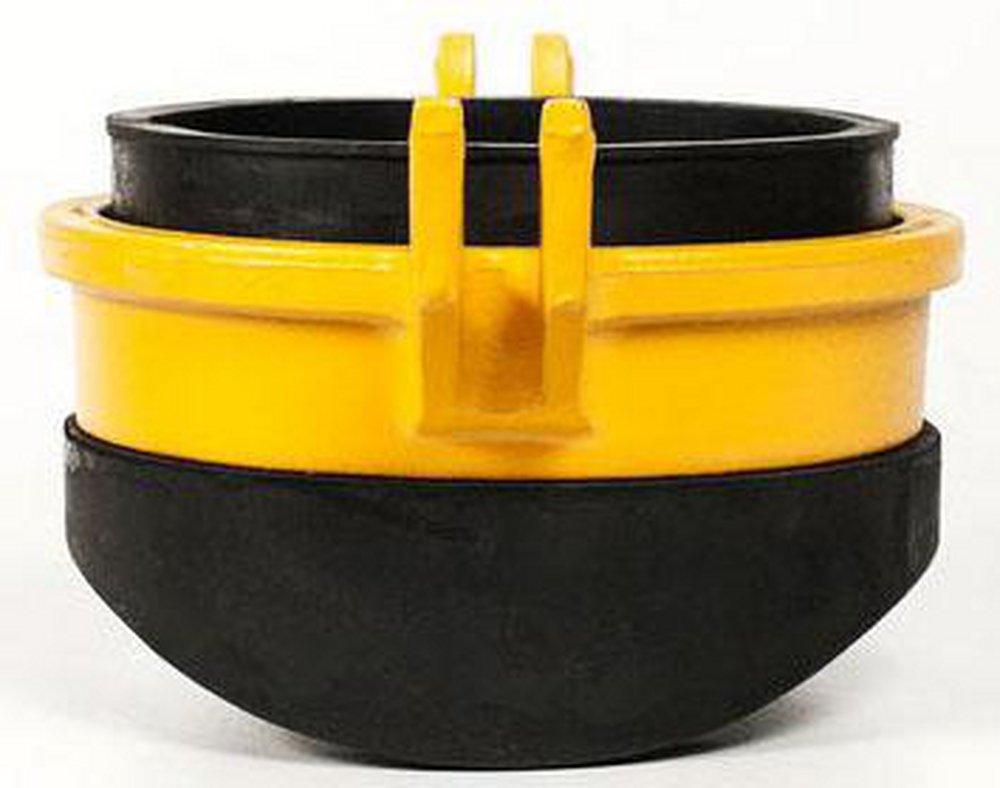

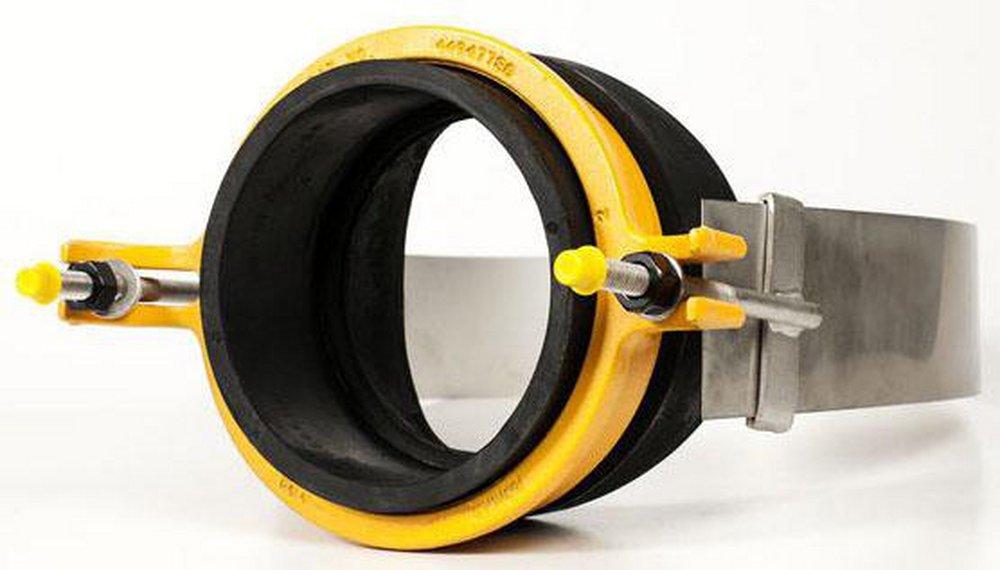

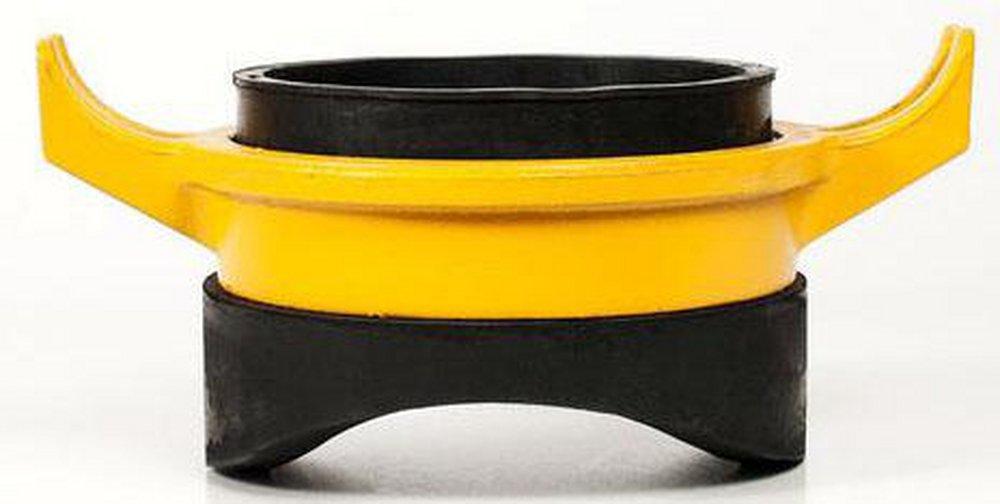

The ROMAC INDUSTRIES 218-42154 Style CB Sewer Saddle is designed for PVC sewer pipes and making branch outlets. It fits pipes from 6 to 12 inches and has a 4-inch clamp connection. The saddle body is cast from ductile iron and the gasket is made from styrene-butadiene rubber.
- Saddle body cast from ductile iron, meeting ASTM A536, Grade 65-45-12
- Gasket made from virgin styrene butadiene rubber compound for water and sewer service in accordance with ASTM D 2000 MBA 710
- Strap-type 304 stainless steel, 3-1/2 in wide to spread out clamping forces on the pipe
Product Highlights
This sewer saddle features a ductile iron body, stainless steel straps, and a styrene-butadiene rubber gasket, ensuring durability and reliable performance for creating branch outlets.
Product Information
Standard Information
-
Brand: ROMAC INDUSTRIES
-
Manufacturer Part Number: 218-42154
-
Country of Origin: USA
Technical Specifications
-
Series: CB
-
Finish: Shop-Coated
-
Fits Pipe Size: 6 to 12 in
-
Pressure Rating: 7 psi
-
Saddle Material: Ductile Iron
-
Main Category: Underground Utility Supplies
-
Part Number: 218-42154
-
CASTING: The saddle body is cast from ductile (nodular) iron, meeting or exceeding ASTM A 536, Grade 65-45-12.
-
GASKET: Gasket is made from virgin Styrene Butadiene Rubber (SBR) compounded for water and sewer service in accordance with ASTM D 2000 MBA 710.
-
PIPE STOP: A pipe stop is molded into the inside wall of the gasket. This pipe stop can hold up to 1000 lbs of force along the branch.
-
STRAP: Type 304 (18-8) Stainless Steel, 3 1/2 inches wide to spread out clamping forces on the pipe. M.I.G. and T.I.G welds. Passivated for corrosion resistance.
-
BOLTS AND NUTS: Type 304 (18-8) Stainless Steel, passivated for resistance to corrosion. 1/2" National Coarse roll thread. Nuts coated to prevent galling.
-
COATINGS: Shop coat applied to cast parts for corrosion protection in transit. Fusion bonded epoxy, liquid epoxy and other coatings available on request.
-
WASHERS: Acetyl and stainless steel washers are used to reduce friction
-
Adjustable Strap: 304 stainless steel band accommodates a wide range of pipe sizes. The stainless welds are fully passivated (chemically treated after welding to produce a highly corrosion resistant coating). The wide strap distributes the clamping force across the 3 1/2" width.
-
Nominal Size: 6 to 12 in
-
Connection Type: 4 in Clamp
-
Brand: Romac
-
UNSPSC: 40175307
-
Country of Origin: US
-
Manufacturer: Romac Industries
-
Type: Sewer Saddle
