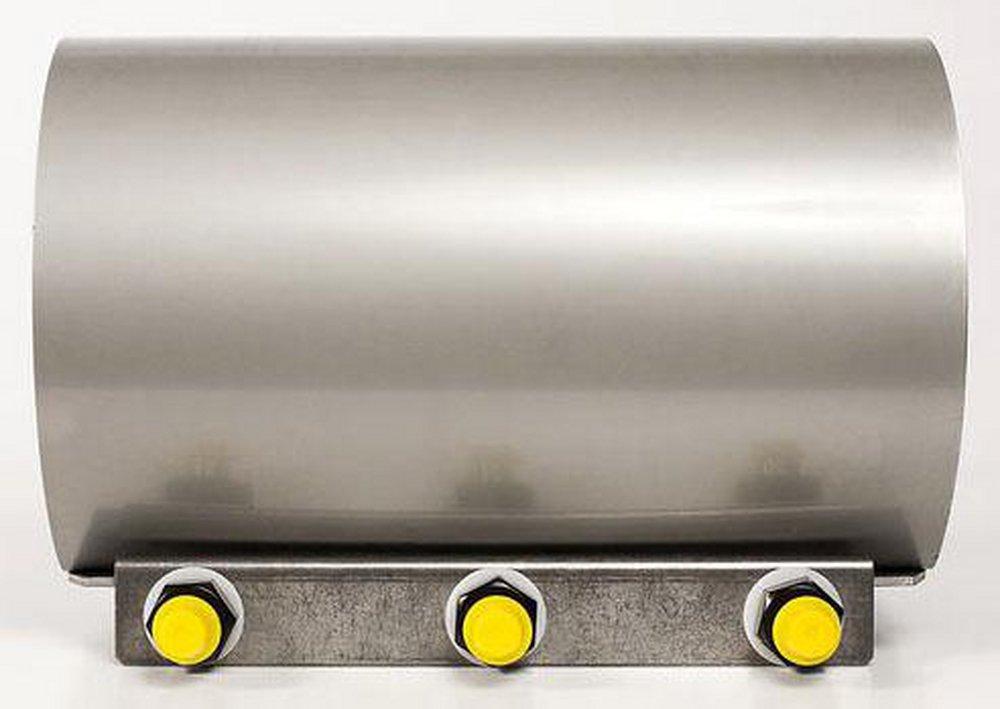

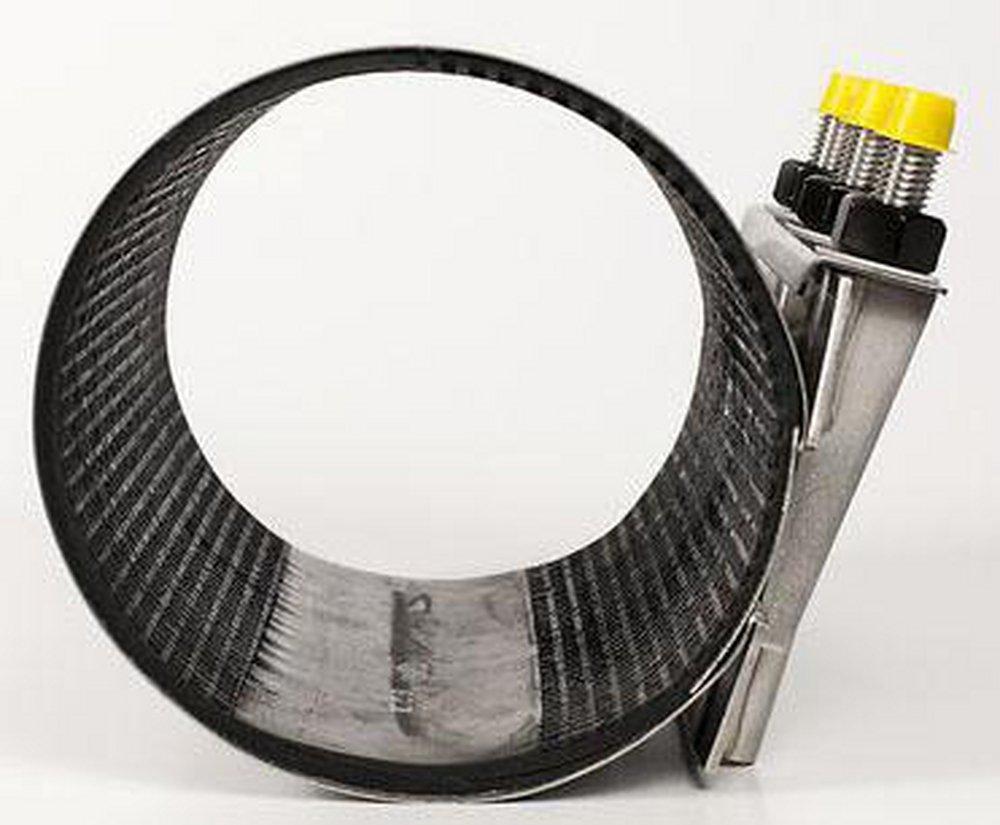

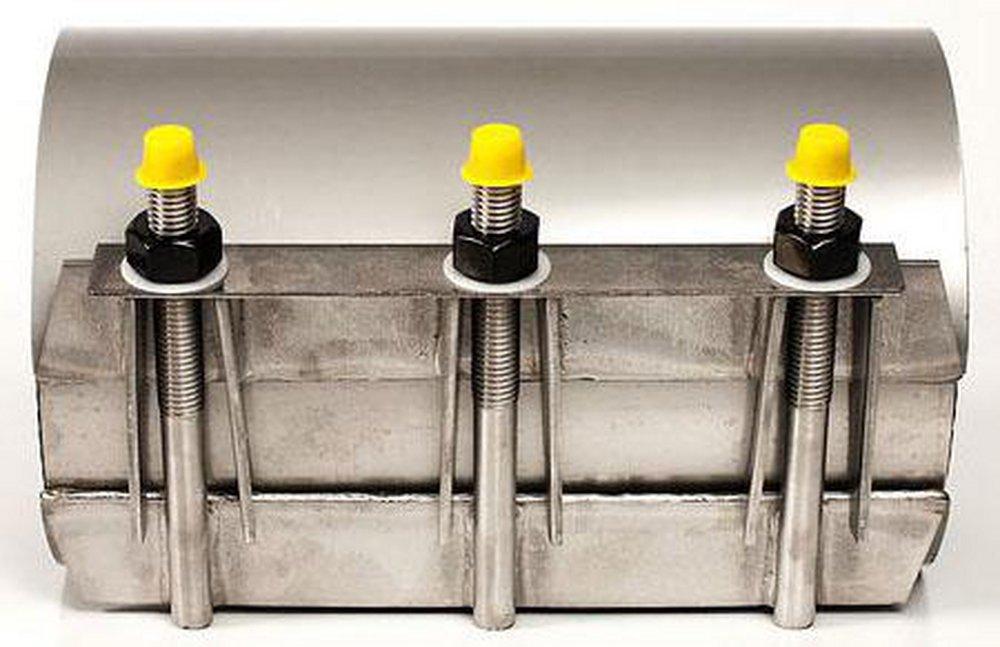

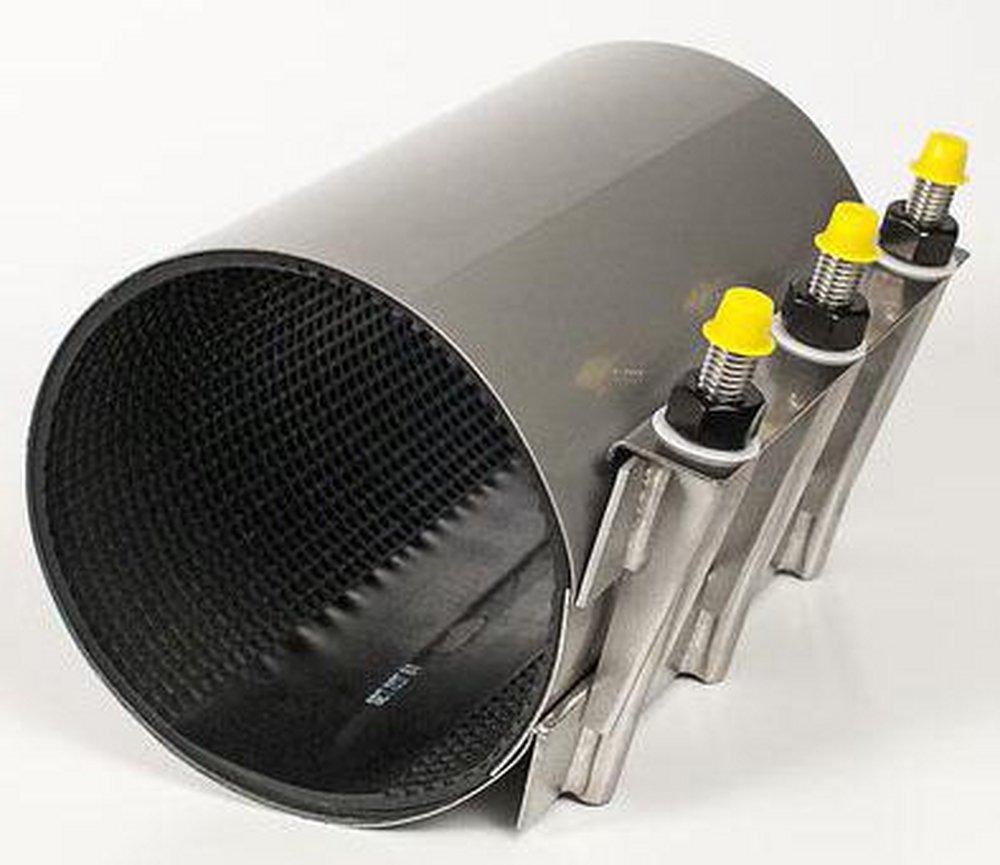

Romac Industries 111-09401200 Style SS1 Repair Clamp 8 x 12 in

Product Description

The ROMAC INDUSTRIES 111-09401200 Style SS1 repair clamp is a one-section stainless steel clamp compatible with steel, cast iron, asbestos cement, plastic, and other pipe materials. It features armors bonded to the gasket to bridge the gap at the lug area and welds fully passivated for enhanced corrosion resistance. It is made in the USA.

• Plastic washer prevents galling
• Lip curved bar to hold position while tightening
• Compatible with various pipe materials

Product Highlights

This stainless steel repair clamp provides a full circumferential repair of splits and holes and is recommended for various pipe types.

Product Information

Standard Information

• Brand: ROMAC INDUSTRIES
• Manufacturer Part Number: 111-09401200
• Country of Origin: USA

Technical Specifications

• Additional Information: 304 Stainless Steel Material Construction
• Body Material: Stainless Steel
• Bolt Size: 5/8 in
• Clamping Range: 9 to 9.4 in
• Fits Pipe Size: 8 in
• Gasket Material: SBR
• Material Standard: ASTM D2000 MAA 610
• Number of Bolts: 3
• Pressure Rating: 150 psi
• Type: Band
• Pipe Size: 8 in
• Length: 12 in
• Material: Stainless Steel
• Series: 111
• Dimensions: 12 in L
• Domestic/Import: Domestic
• Outside Diameter: 9 to 9.4 in
• Brand: Romac
• UNSPSC: 40173804
• Alternate Part Number 1: SS1-9.40 X 12
• Manufacturer: Romac Industries
• Manufacturer Part Number: 111-09401200
• Standards: ANSI/AWWA C230|ASTM A240 Body/Shell and Lug|ASTM D2000 MAA 610 Gasket|ASTM A193 Bolt|ASTM A194 Nut
