Romac 286-211072 202NS-21.10x2 IPS 18 Inch (19.50-21.10) Replacement MPN 286-211072

Product Description

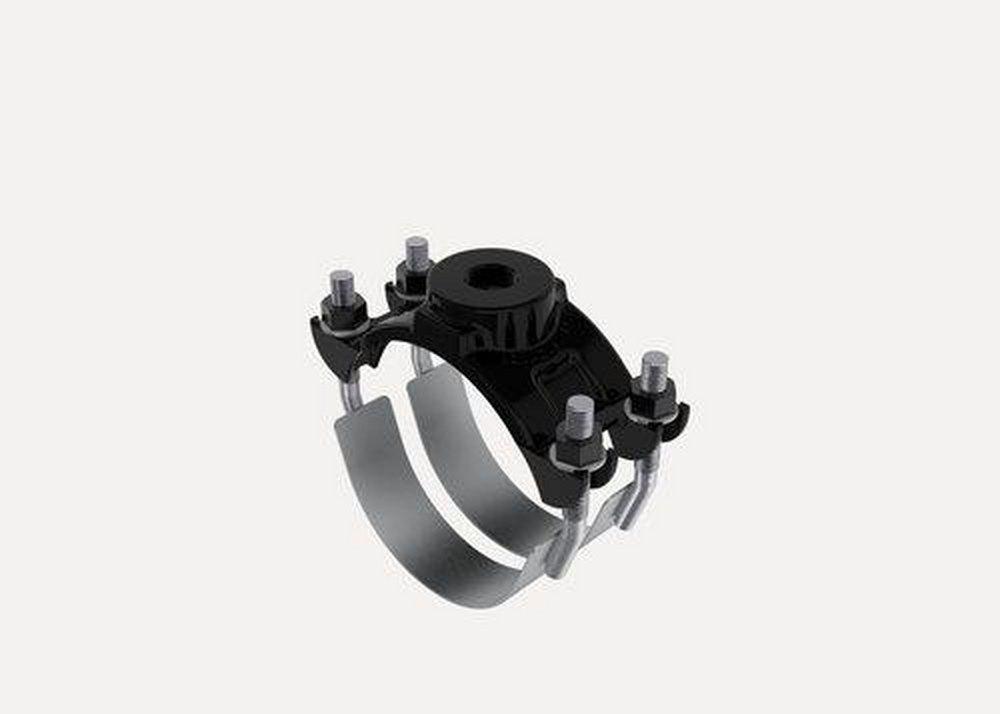

The ROMAC 286-211072, model 202NS, is a ductile iron service saddle with a stainless steel strap. Features a 10 to 12 mil fusion-bonded black nylon coating and NBR gasket. It is designed for use on steel, cast iron, asbestos cement, and plastic pipes with a pipe outer diameter of 19.5 to 21.1 inches and a 2-inch IP threaded outlet connection.

• Constructed with ductile iron body and 304 stainless steel U-bolt/nut/washer.
• Complies with ANSI/AWWA C800 and ANSI/NSF 61/372 standards.
• Suitable for a pressure rating of 350 PSI.

Product Highlights

Ductile iron service saddle with nylon coating and stainless steel strap, suitable for various pipe materials.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-211072
• Country of Origin: USA

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 18 INCH
• OUTLET CONNECTION: 2 INCH IP THREADED
• PIPE OUTER DIAMETER: 19.5 TO 21.1 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
• ANSI: ANSI C800
• AWWA: AWWA C-800
• Coating: Fusion Bonded Black Nylon
• Collection: Style 202NS
• NSF Certified: Yes
• Origin: Domestic
• Range (in): 19.50 in - 21.10 in
• Tap Size: 2
