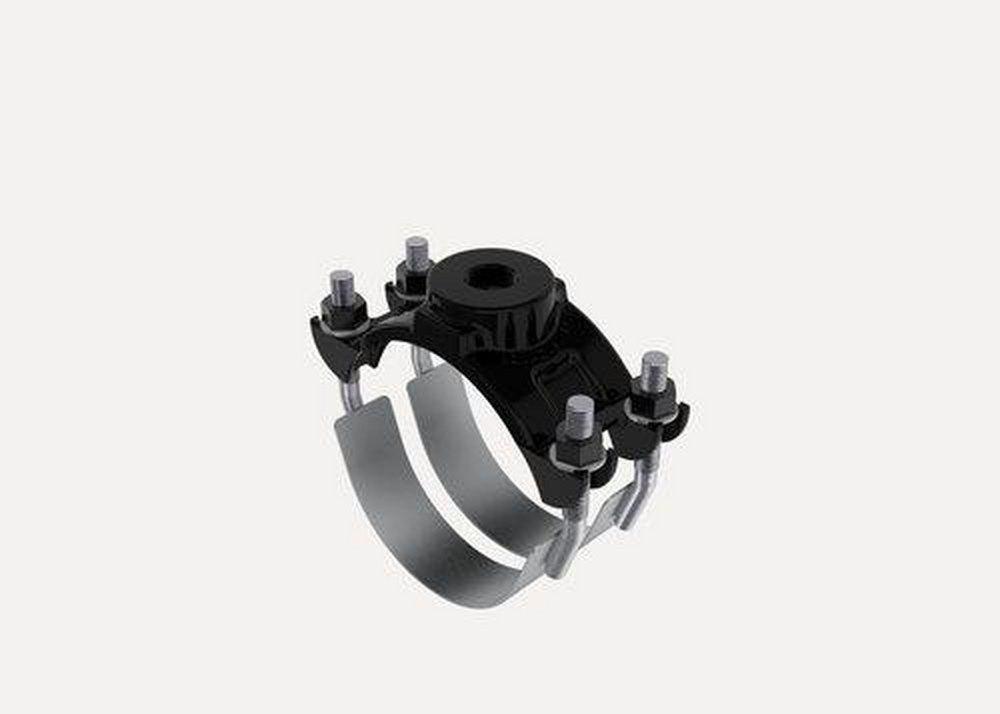

Romac 286-168072 Ductile Iron Service Saddle 2 in Od Tube

Product Description

The ROMAC 286-168072 is a Style 202NS ductile iron service saddle designed for tapping OD tube connections on water distribution mains. The body carries a fusion bonded black nylon coating over ductile iron for corrosion resistance, and the strap is 304 stainless steel for long-term clamping integrity. The saddle accepts a 2 inch OD tube tap and fits pipe with an outside diameter ranging from 15.30 inches to 16.80 inches. NSF certified and ANSI C800 and AWWA C-800 compliant, this saddle is suited for potable water service applications. Installation is performed by licensed plumbers and waterworks contractors working on municipal or commercial water distribution systems.

This saddle is used in residential and commercial water service connections where a branch tap is required on a pressurized main. The Style 202NS collection is intended for OD tube end connections, making it appropriate for polyethylene, PVC, and ductile iron mains within the specified pipe OD range. It is domestically manufactured in the USA.

Key Features

• Fusion bonded black nylon coating over ductile iron body for corrosion resistance
• 304 stainless steel strap provides secure, durable clamping
• 2 inch OD tube tap size for standard service connections
• Fits pipe outside diameters from 15.30 inches to 16.80 inches
• NSF certified for potable water service
• Meets ANSI C800 and AWWA C-800 standards
• Domestically manufactured in the USA

Compatibility

Designed for use on water mains with an outside diameter between 15.30 inches and 16.80 inches, with a 2 inch OD tube tap outlet. Meets ANSI C800 and AWWA C-800 requirements for water service saddles.

Installation Notes

Installation is performed by licensed plumbers or waterworks contractors following local water authority requirements and AWWA guidelines. Depressurize or isolate the main where required by site conditions before fitting the saddle. Verify pipe outside diameter falls within the 15.30 inch to 16.80 inch range before torquing the stainless steel strap. Follow the manufacturer torque sequence and local code requirements for saddle tap installations on pressurized water mains.

Technical Specifications

• Collection: Style 202NS
• Fitting Type: Saddle
• Tap Size: 2 inches OD Tube
• Pipe OD Range: 15.30 inches - 16.80 inches
• Body Material: Ductile Iron
• Strap Material: 304 Stainless Steel
• Gasket Material: NBR Rubber
• Coating: Fusion Bonded Black Nylon
• End Connection: OD Tube
• NSF Certified: Yes
• Standards: ANSI C800, AWWA C-800
• Country of Origin: USA (Domestic)

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-168072
