Romac 286-132072 202NS-13.20x2 IPS 12x2 DI/NC SVC SAD SS/DS (12.00-13.20) replacement mpn 286-132072

Product Description

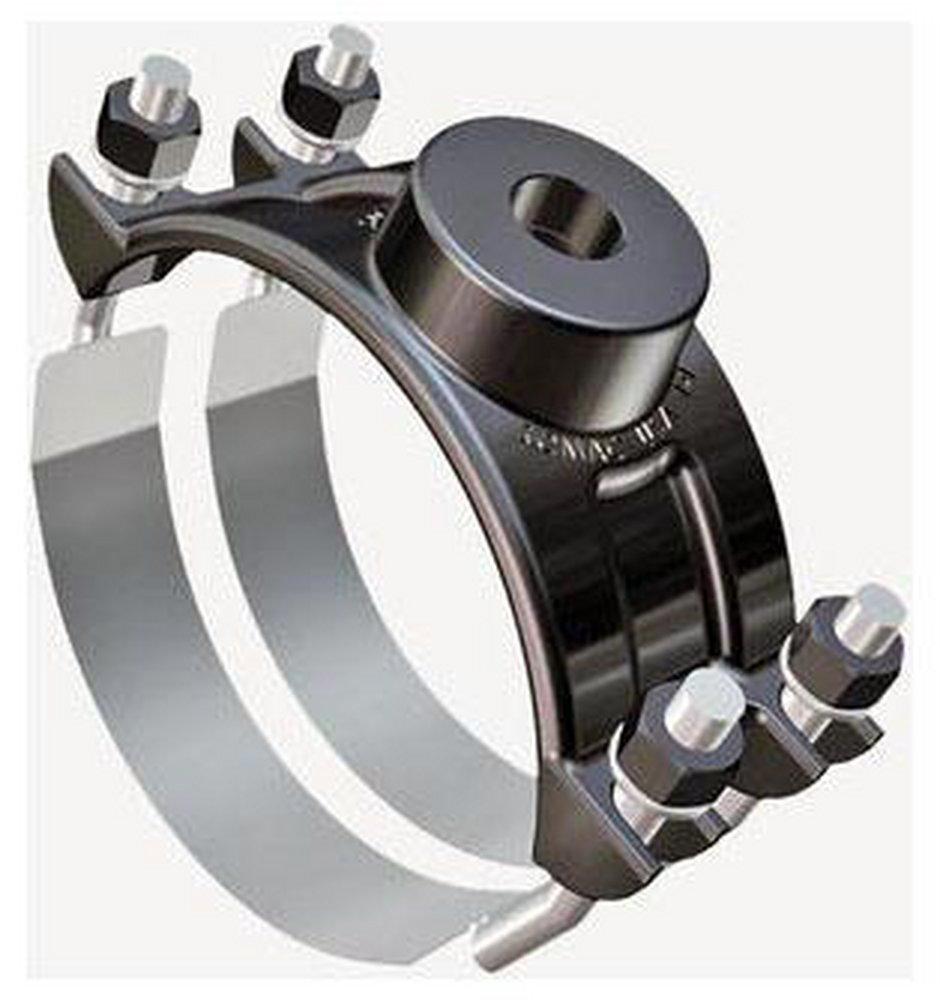

The Romac 286-132072 is a service saddle featuring a ductile iron body, NBR gasket, and 304 stainless steel U-bolt/nut/washer. It has a 10 to 12 mil fusion bonded black nylon coated finish and conforms to ANSI/AWWA C800 and ANSI/NSF 61/372 standards. This saddle is suitable for use on steel, cast iron, asbestos cement, and plastic pipes.

• Ductile Iron Body
• NBR Gasket
• 304 Stainless Steel U-Bolt/Nut/Washer

Product Highlights

The Romac 286-132072 service saddle features a double strap mounting type, a 12-inch nominal pipe size, and a 2-inch IP threaded outlet connection.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-132072
• Country of Origin: USA

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 12 INCH
• OUTLET CONNECTION: 2 INCH IP THREADED
• PIPE OUTER DIAMETER: 12 TO 13.2 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
• ANSI: ANSI 372, ANSI 61, ANSI C800
• AWWA: AWWA C-800
• Coating: Fusion Bonded Black Nylon
• Collection: Style 202NS
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 12 in
• Fitting Type: Dual Strap, Saddle
• Material: Ductile Iron, Rubber, Stainless Steel
• Material Type: 304, NBR
• NSF Certified: Yes
• Range (in): 12 in - 13.2 in
• Tap Size: 2
• UL Listed: No
