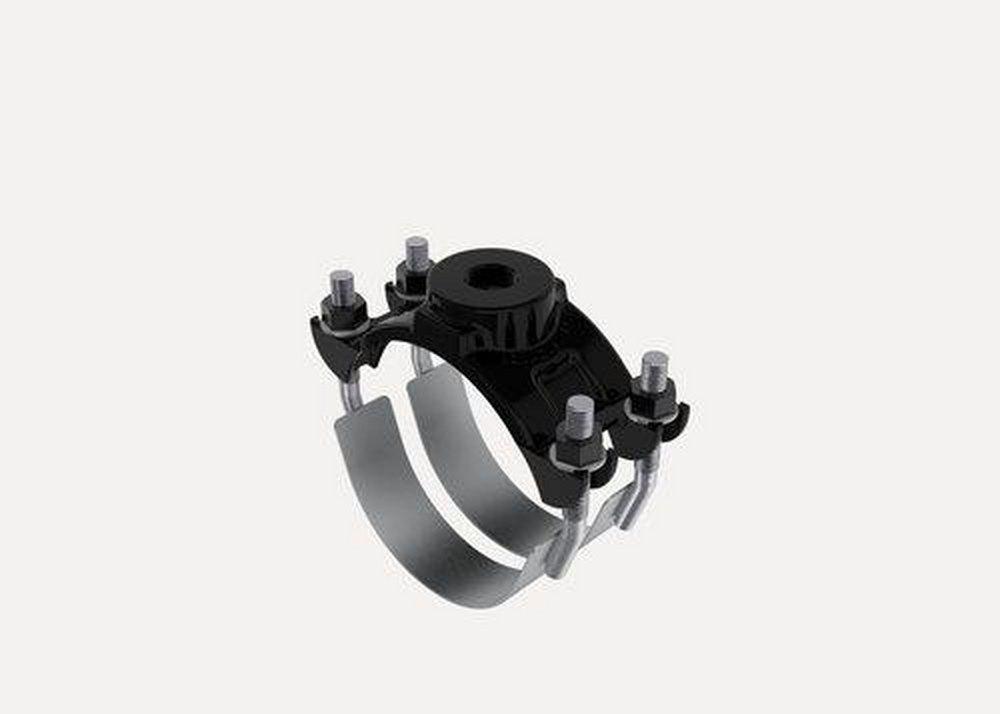

Romac 286-132042 Ductile Iron Service Saddle 1 in Od Tube

Product Description

The ROMAC 286-132042 is a Style 202NS ductile iron service saddle designed for tapping water distribution mains and service lines. The body carries a fusion bonded black nylon coating over ductile iron for corrosion resistance, and a stainless steel strap secures the fitting to the pipe. The saddle accepts a 1 inch OD tube end connection and fits pipe with an outside diameter ranging from 12.00 inches to 13.20 inches. It meets ANSI C800 and AWWA C-800 standards and carries NSF certification. Licensed plumbers and water works contractors install this fitting in municipal and residential water service applications.

The 286-132042 is suited for potable water main tapping in residential and light commercial installations where a reliable, corrosion-resistant saddle is required. The Style 202NS collection is a widely recognized platform in water distribution work. The OD tube end connection accommodates standard service tubing, making it a practical choice for new service tie-ins, main extensions, and meter loop installations on pipes in the 12.00 inch to 13.20 inch OD range. Manufactured in the USA.

Key Features

• Fusion bonded black nylon coating over ductile iron body for corrosion resistance
• 304 stainless steel strap for secure, long-term pipe engagement
• 1 inch OD tube tap size for direct service tubing connection
• Pipe range of 12.00 inches to 13.20 inches outside diameter
• NSF certified for use in potable water systems
• Complies with ANSI C800 and AWWA C-800 standards
• Domestically manufactured

Compatibility

Designed as an OEM-style service saddle fitting for ductile iron, cast iron, PVC, and asbestos cement water mains with an outside diameter between 12.00 inches and 13.20 inches, using a 1 inch OD tube outlet connection.

Installation Notes

Installation should be performed by a licensed plumber or certified water works technician in accordance with AWWA C-800 guidelines and applicable local codes. Depressurize or isolate the main as required by local authority before tapping. Clean and inspect the pipe surface before seating the saddle to ensure proper gasket contact. Torque the stainless steel strap evenly to manufacturer specifications using the appropriate saddle wrench — do not overtighten, as uneven loading can compromise the NBR rubber seal.

Technical Specifications

• Collection: Style 202NS
• Fitting Type: Service Saddle
• Tap Size: 1 inch OD Tube
• End Connection: OD Tube
• Pipe OD Range: 12.00 inches to 13.20 inches
• Body Material: Ductile Iron
• Coating: Fusion Bonded Black Nylon
• Strap Material: 304 Stainless Steel
• Seal Material: NBR Rubber
• Standards: ANSI C800, AWWA C-800
• NSF Certified: Yes
• Country of Origin: USA

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-132042
