Romac 286-111072 202NS-11.10x2 IPS 10x2 DI/NC SVC SAD SS/DS (10.00-11.10)

Product Description

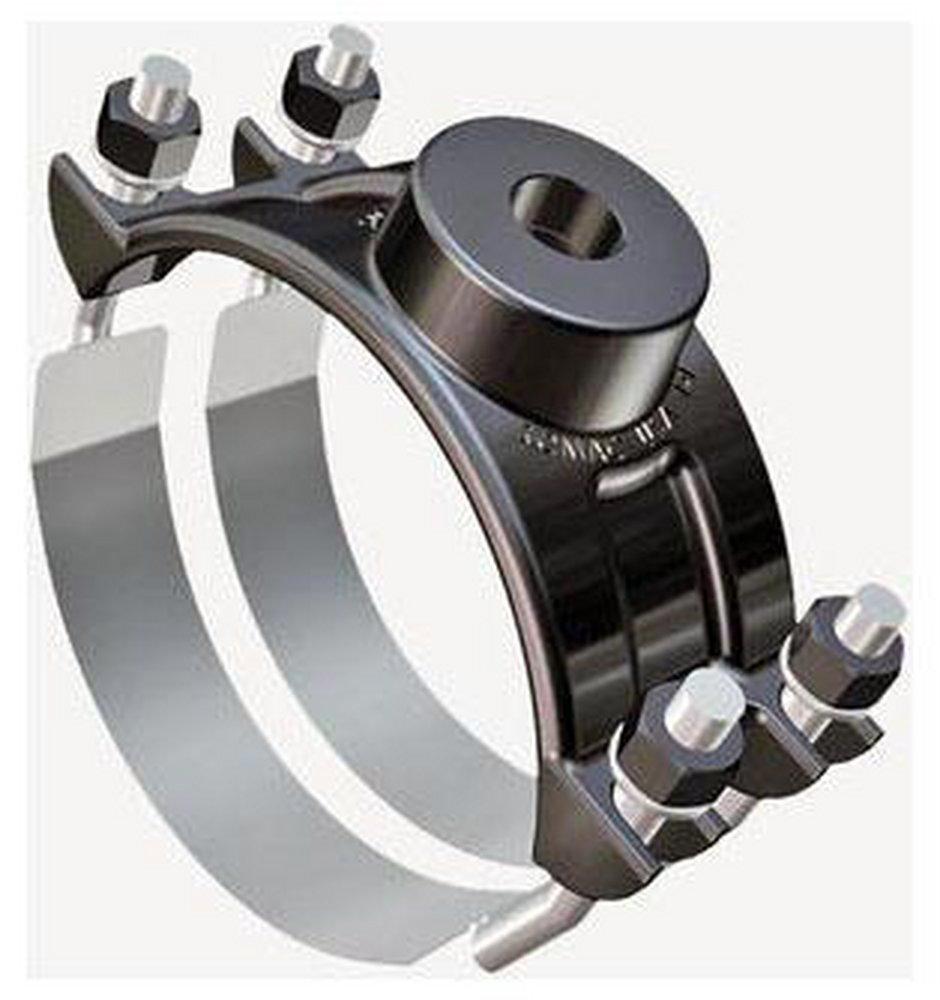

The ROMAC 286-111072 is a service saddle made with ductile iron body, NBR gasket, and 304 stainless steel U-bolt/nut/washer. It features a 10 to 12 mil fusion bonded black nylon coated finish and is designed for use on steel, cast iron, asbestos cement, and plastic pipes. This model conforms to ANSI/AWWA C800 and ANSI/NSF 61/372 standards.

• Double strap mounting type
• Suitable for 10 inch nominal pipe size
• Features a 2 inch IP threaded outlet connection

Product Highlights

The ROMAC 286-111072 service saddle ensures secure and reliable connections for various piping systems, with durable construction and compliance with industry standards.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-111072
• Country of Origin: USA

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 10 INCH
• OUTLET CONNECTION: 2 INCH IP THREADED
• PIPE OUTER DIAMETER: 10 TO 11.1 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
• ANSI: ANSI 372, ANSI 61, ANSI C800
• AWWA: AWWA C-800
• Coating: Fusion Bonded Black Nylon
• Collection: Style 202NS
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 10 in
• Fitting Type: Dual Strap, Saddle
• Material: Ductile Iron, Rubber, Stainless Steel
• Material Type: 304, NBR
• NSF Certified: Yes
• Range (in): 10 in - 11.1 in
• Tap Size: 2
• UL Listed: No
