Romac 286-111042 202NS-11.10x1 IPS 10x1 DI/NC SVC SAD SS/DS (10.00-11.10)

Product Description

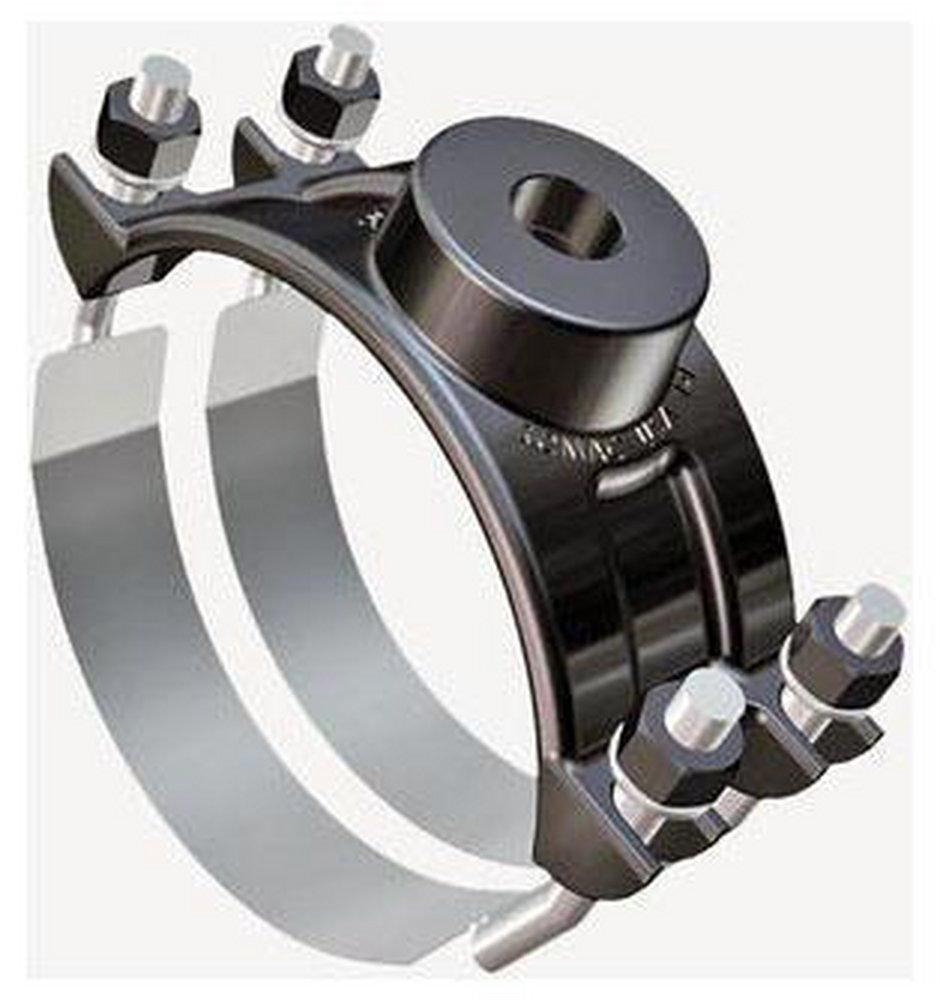

The ROMAC 286-111042, model 202NS, is constructed with a ductile iron body, NBR gasket, and 304 stainless steel U-bolt/nut/washer. It features a 10 to 12 mil fusion bonded black nylon coated finish and double strap mounting. Designed for use on steel, cast iron, asbestos cement, and plastic pipes, with a 1 inch IP threaded outlet connection.

• Ductile Iron Body
• NBR Gasket
• 304 Stainless Steel U-Bolt/Nut/Washer
• Double Strap Mounting

Product Highlights

The ROMAC 286-111042 is ideal for connecting to various pipe materials with its durable construction and nylon coating.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-111042
• Country of Origin: USA

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 10 INCH
• OUTLET CONNECTION: 1 INCH IP THREADED
• PIPE OUTER DIAMETER: 10 TO 11.1 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
• ANSI: ANSI 372, ANSI 61, ANSI C800
• AWWA: AWWA C-800
• Coating: Fusion Bonded Black Nylon
• Collection: Style 202NS
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 10 in
• Fitting Type: Dual Strap, Saddle
• Material Type: 304, NBR
• NSF Certified: Yes
• Range (in): 10 in - 11.1 in
• Tap Size: 1
• UL Listed: No
