Romac 286-090572 Double Strap Saddle 8 Inch 2 Inch Tap

Product Description

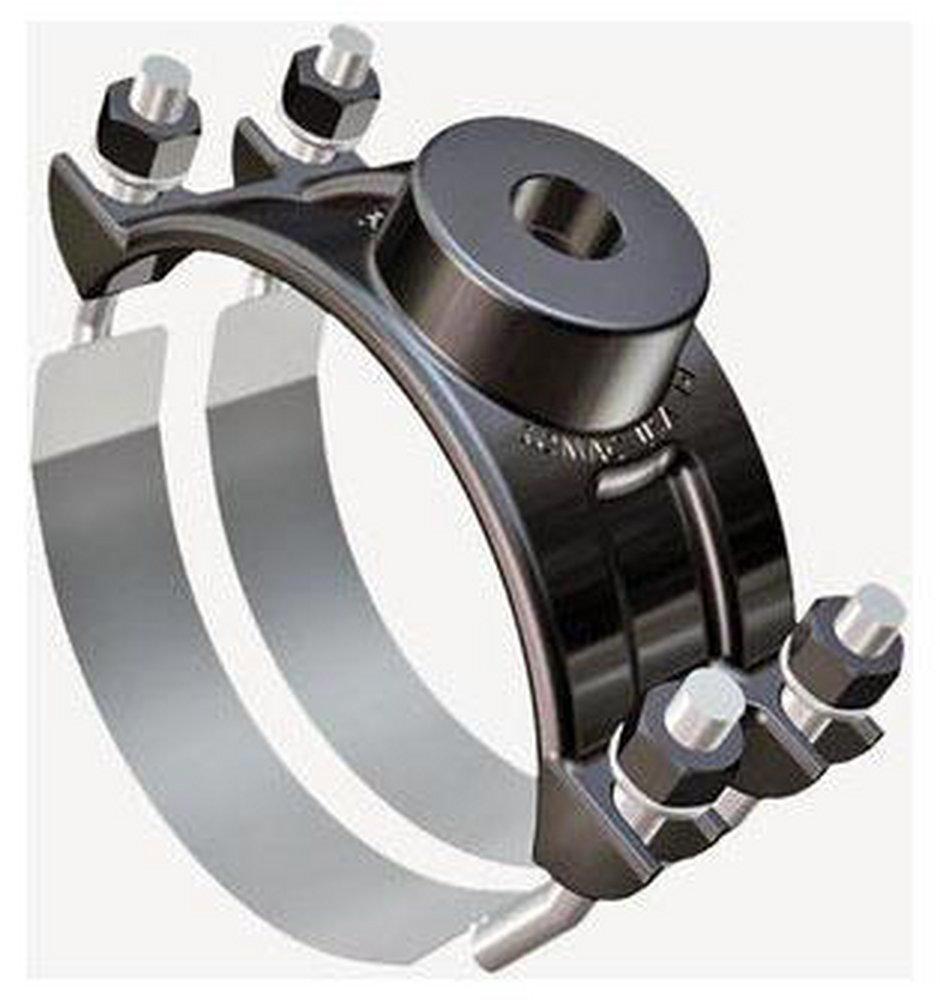

The ROMAC 286-090572 is a double strap service saddle designed for tapping 8-inch iron pipe (IP) water mains and distribution lines. The body is ductile iron coated with fusion bonded black nylon, giving it corrosion resistance in buried and wet environments. Two 304 stainless steel straps secure the saddle to the pipe, and an NBR rubber gasket seals the connection. The threaded 2-inch outlet accepts standard service taps. Working pressure is rated up to 350 psi. Licensed plumbers and waterworks contractors install this fitting on new taps and service reconnections in municipal and commercial water distribution systems.

This saddle fits 8-inch pipe with an outside diameter range of 8.63 inches to 9.05 inches. It is compatible with steel, cast iron, asbestos cement, plastic, and other common pipe materials found in water distribution infrastructure. The Style 202NS collection covers a broad size range from 2 inches through 30 inches pipe sizes, with outlet sizes available from 1/2 inch through 2-1/2 inches, making it a standard choice for waterworks service connections across residential and commercial municipal applications.

Key Features

• Fusion bonded black nylon coating over ductile iron body for corrosion resistance in buried service
• Dual 304 stainless steel straps for secure, long-term clamping on the pipe
• NBR rubber gasket provides a reliable, pressure-rated seal
• Threaded outlet connection for direct tap tool and corporation stop installation
• Rated to 350 psi working pressure
• NSF certified and meets ANSI 61, ANSI 372, ANSI C800, and AWWA C-800 standards
• Manufactured in the USA

Compatibility

Fits 8-inch iron pipe (IP) with an outside diameter range of 8.63 inches to 9.05 inches. Compatible with steel, cast iron, asbestos cement, plastic, and other pipe types. Outlet is a 2-inch threaded connection sized for standard corporation stops and service fittings.

Installation Notes

Installation is performed by licensed waterworks or plumbing contractors in accordance with AWWA standards and local water authority specifications. Shut off and depressurize the line or follow approved wet-tap procedures before positioning the saddle. Torque the stainless steel strap nuts evenly to seat the gasket uniformly around the pipe circumference. Verify outlet thread engagement and pressure-test the tap before returning the line to service.

Technical Specifications

• Fits Pipe Size: 8 inches
• Outside Diameter Range: 8.63 inches to 9.05 inches
• Tap Size: 2 inches
• Working Pressure: 350 psi
• Fitting Type: Double Strap Saddle
• End Connection: Threaded
• Body Material: Ductile Iron
• Strap Material: 304 Stainless Steel
• Gasket Material: NBR Rubber
• Coating: Fusion Bonded Black Nylon
• NSF Certified: Yes
• Standards: ANSI 372, ANSI 61, ANSI C800, AWWA C-800
• Country of Origin: Domestic (USA)

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-090572
