Romac 286-069062 202NS-6.90x1-1/2 IPS 6x1-1/2 DI/NC SVC SAD SS/DS (6.63-6.90)

Product Description

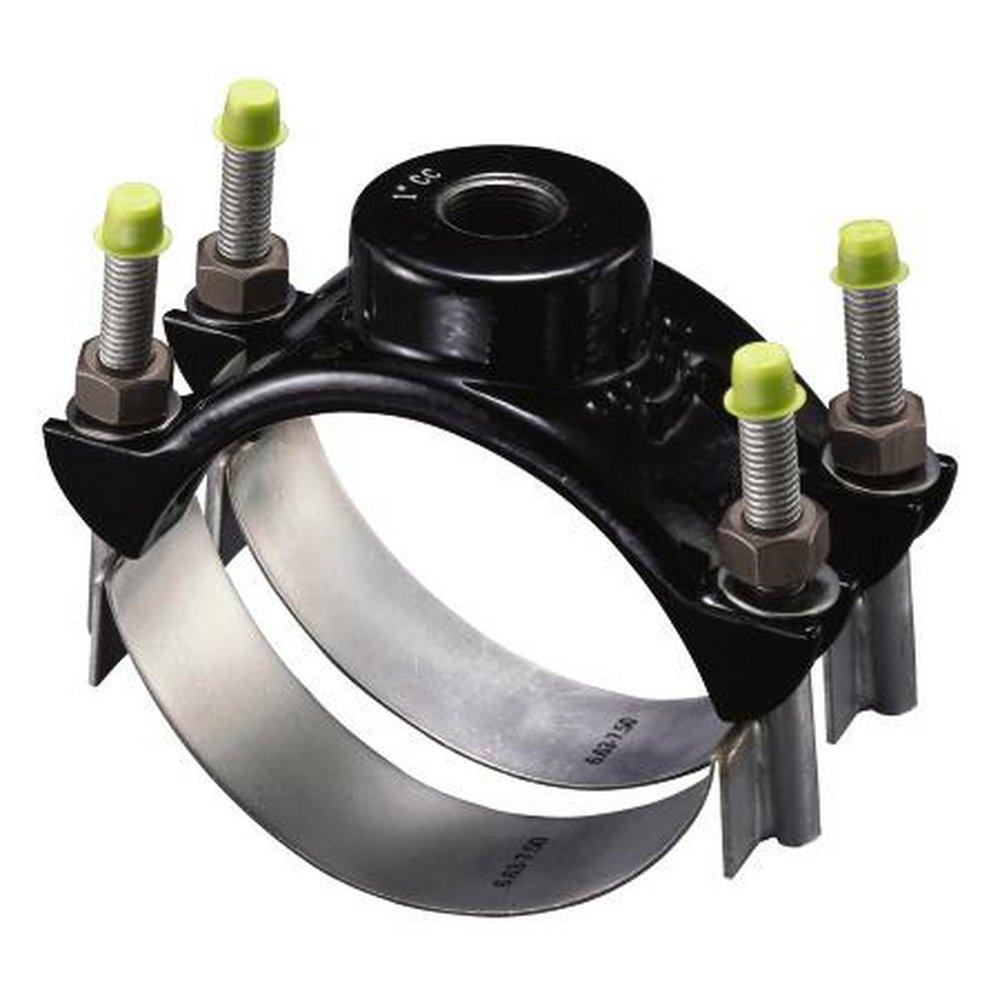

The Romac 286-069062 is a 202NS model saddle with a ductile iron body, NBR gasket, and 304 stainless steel U-bolt/nut/washer. It features a 10 to 12 mil fusion bonded black nylon coated finish and is manufactured to ANSI/AWWA C800 and ANSI/NSF 61/372 standards. It is suitable for use on steel, cast iron, asbestos cement, and plastic pipes.

• Ductile iron body
• NBR gasket
• 304 stainless steel U-bolt/nut/washer
• 1-1/2 inch IP threaded outlet connection
• 350 PSI pressure rating
• Double strap mounting type

Product Highlights

The Romac 286-069062 saddle is designed for durability and reliability in various piping systems.

Product Information

Standard Information

• Brand: ROMAC
• Manufacturer Part Number: 286-069062

Technical Specifications

• MATERIAL: DUCTILE IRON (BODY), NBR (GASKET), 304 STAINLESS STEEL (U-BOLT/NUT/WASHER)
• FINISH: 10 TO 12 MIL FUSION BONDED BLACK NYLON COATED
• APPLICABLE STANDARD: ANSI/AWWA C800, ANSI/NSF 61/372
• MATERIAL SPECIFICATION: ASTM A194/A240/A536/D2000
• PRESSURE RATING: 350 PSI
• MOUNTING TYPE: DOUBLE STRAP
• NOMINAL PIPE SIZE: 6 INCH
• OUTLET CONNECTION: 1-1/2 INCH IP THREADED
• PIPE OUTER DIAMETER: 6.63 TO 6.9 INCH
• USED ON: STEEL, CAST IRON, ASBESTOS CEMENT AND PLASTIC PIPE
• MODEL: 202NS
• AWWA: AWWA C-800
• End Connection 1: FIPT
• End Connections: FIPT
• Fits Pipe Size: 6 in
• Pressure - Maximum: 350 psi
• Tap Size: 1-1/2
• Material Type: Nylon
